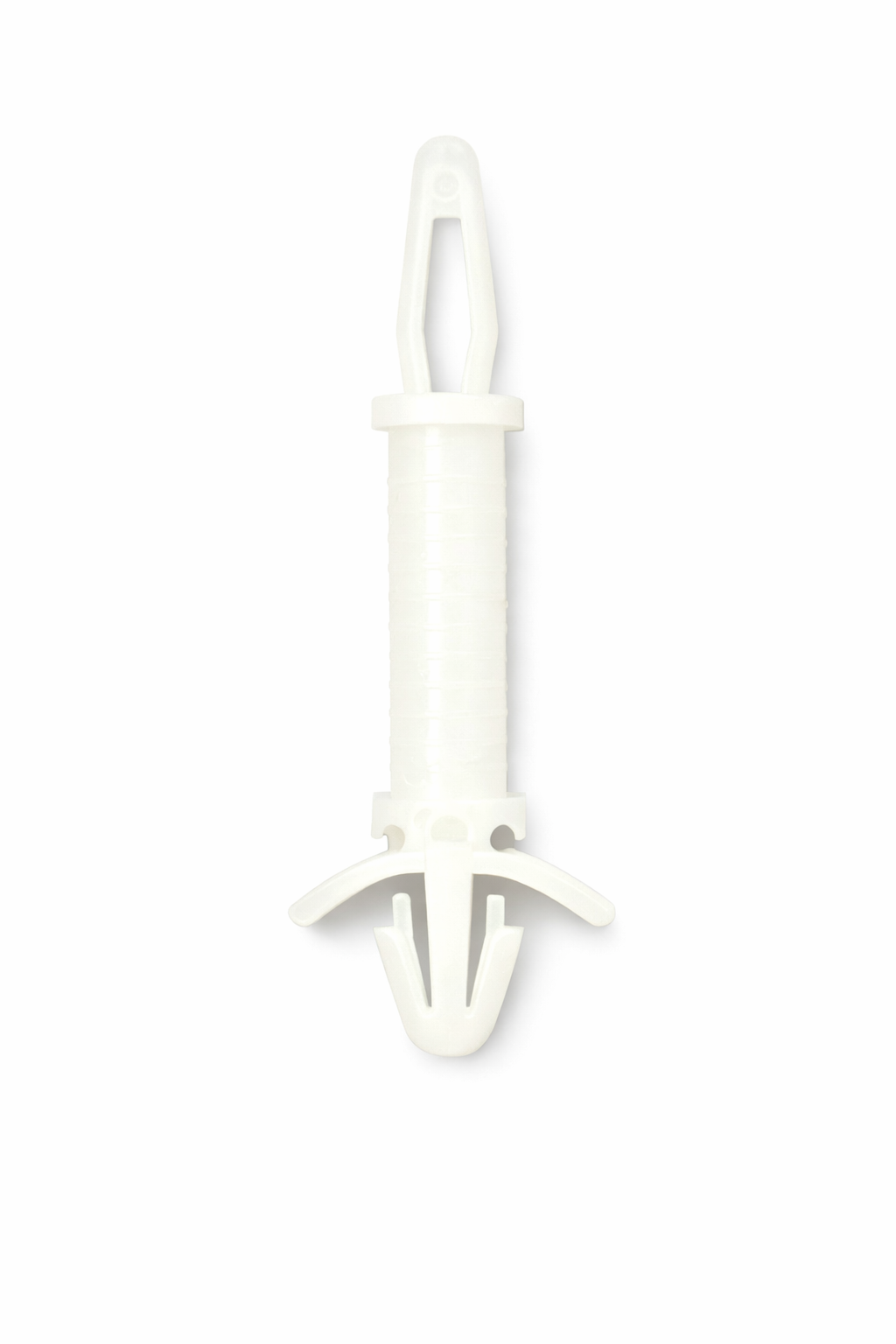

• 19C Series: .156 Board Hole x .187 Chassis Hole

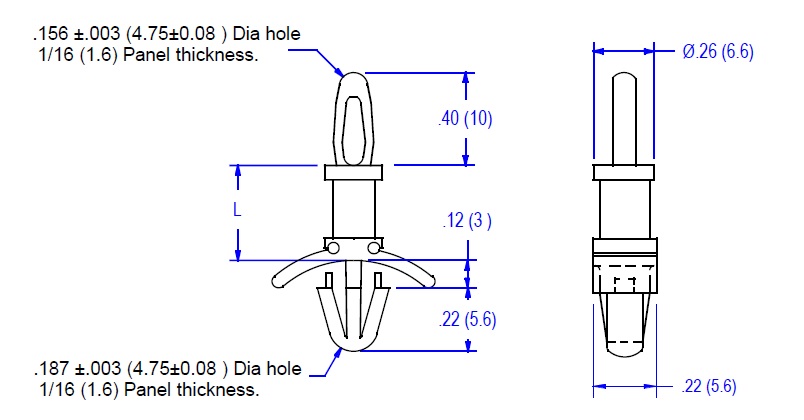

  • 01-19C SKETCH
  • .156 PCB Hole x .187 Chassis Hole
  • Circuit Board Support - Non-Lock/Press Fit PCB End
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to part#)
  • UL File No: E70062
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L +/- .4 mm

Request Quote/Sample
N/A .156 (4) inches (mm) Request Quote/Sample
N/A .187 (4.8) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) Request Quote/Sample
N/A .375 (9.6) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) Request Quote/Sample
N/A .750 (19) inches (mm) Request Quote/Sample
N/A .875 (22.2) inches (mm) Request Quote/Sample
N/A 1.00 (25.4) inches (mm) Request Quote/Sample
N/A 1.125 (28.6) inches (mm) Request Quote/Sample
