• 81 Series- .100 Board Hole x .100 Chassis Hole

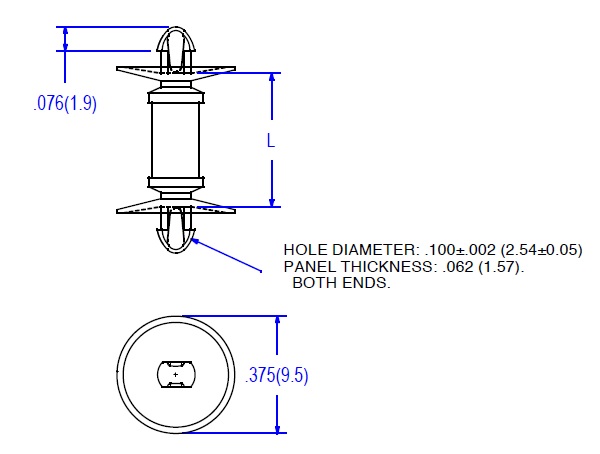

  • 01-81 Sketch

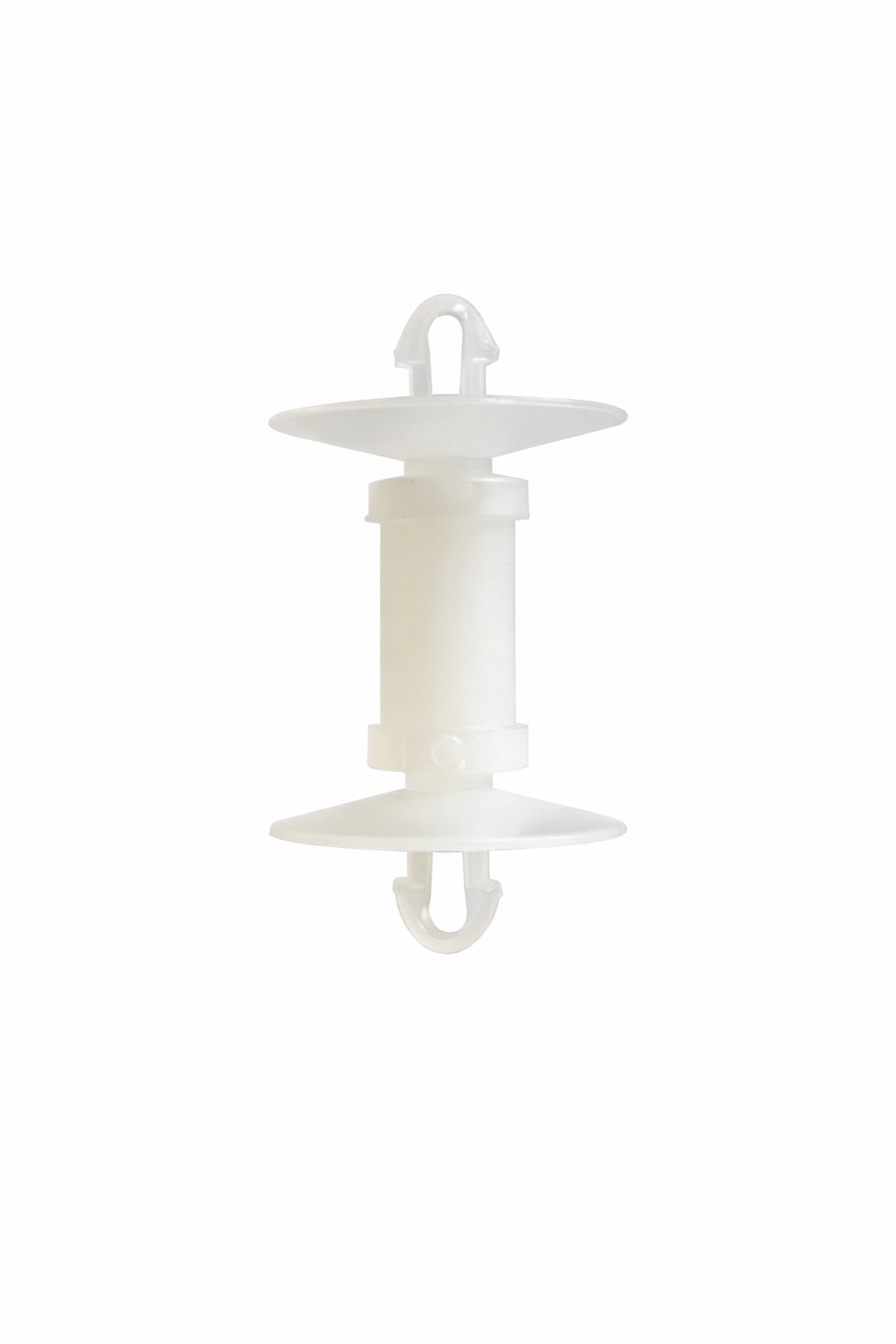

  • Cupped Dual Locking PCB Support
  • For .062 Panel Thickness
  • Installs easily by hand
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2
  • UL File No. E70062
  • ASTM: D 4066, PA0113
  • RoHS Compliant
  • Temp Range:  -40 to 185F (-40 to 85C)



1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Request Quote/Sample
N/A .187 (4.8) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A .562 (14.3) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) Request Quote/Sample
