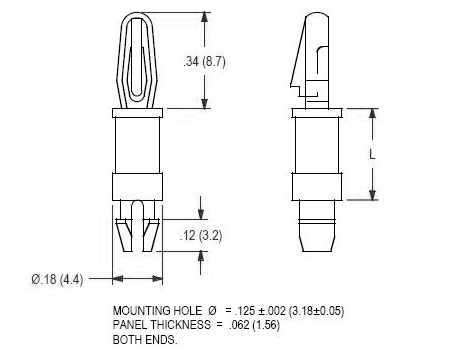

• 56 Series: .125 Board Hole x .125 Chassis Hole
  • 56 Series: .125 Board Hole x .125 Chassis Hole

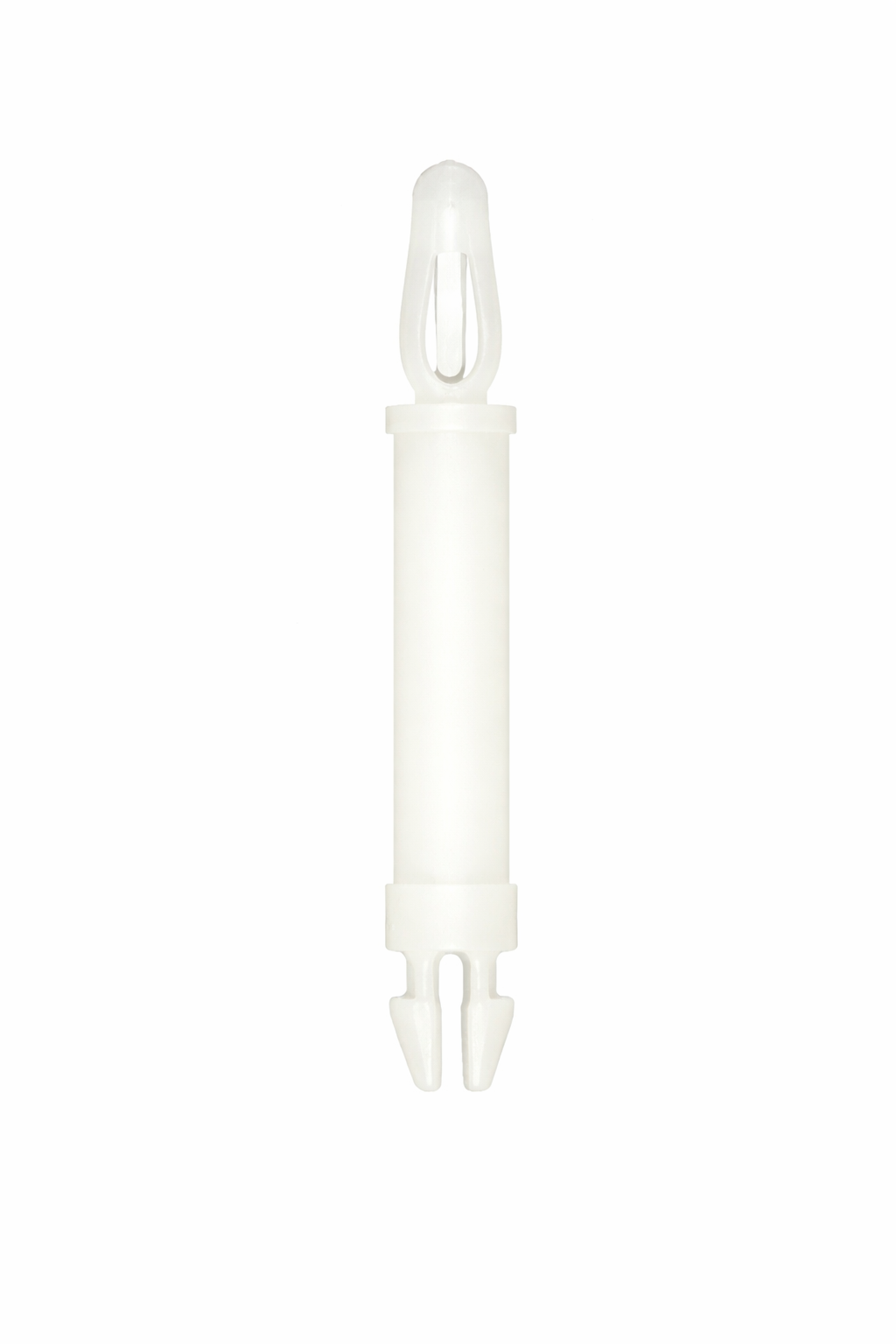

  • Locking Mini Circuit Board Support
  • Board end secures positively in hole yet is releasable
  • Color: Natural
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E41938
  • ASTM:  D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 11 of 11 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Board Hole Diameter

Chassis Hole Diameter

Panel Thickness

Request Quote/Sample
N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .187 (4.8) inches (mm) N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .562 (14.3) inches (mm) N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .750 (19.1) inches (mm) N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .875 (22.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .125 (3.2) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
