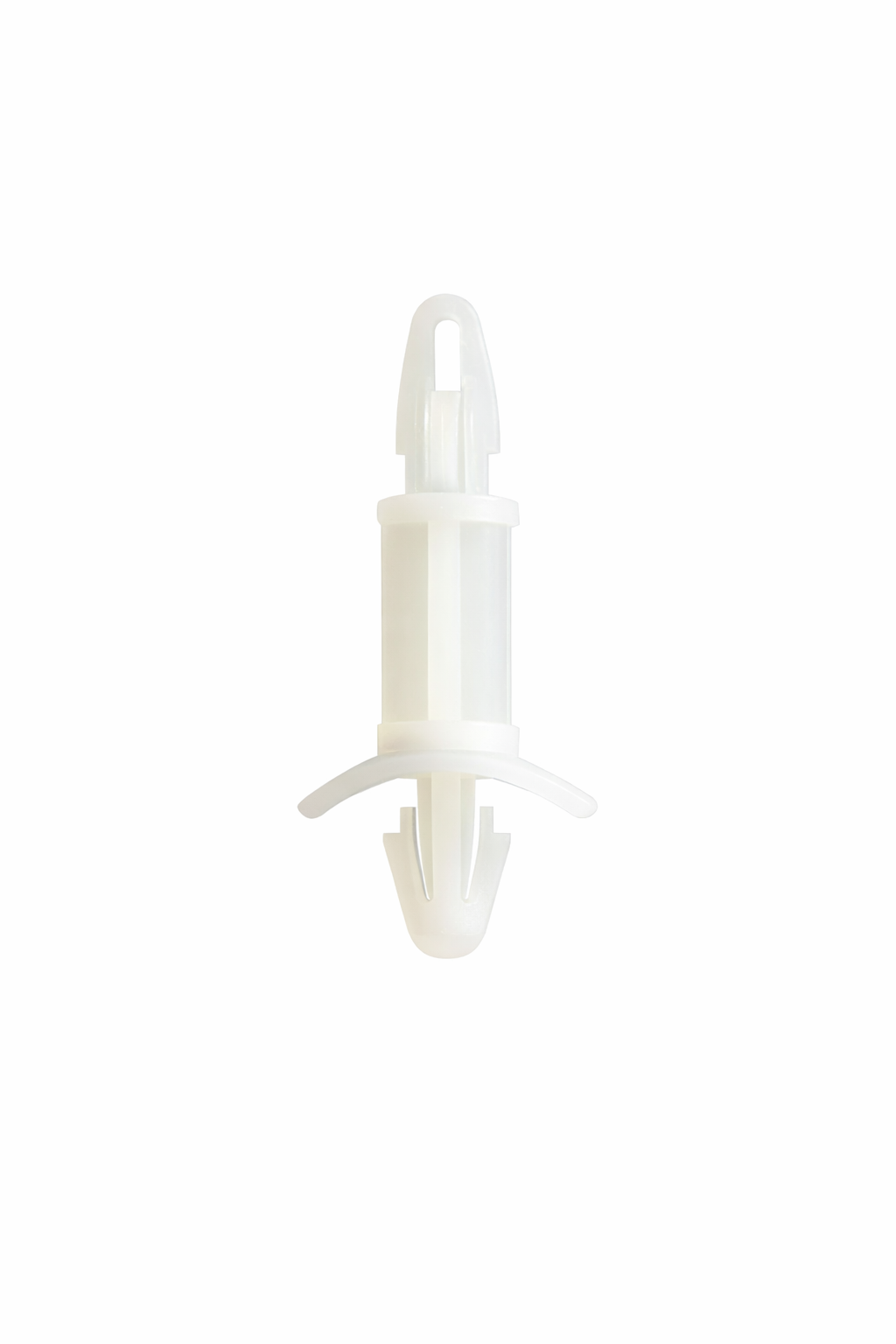

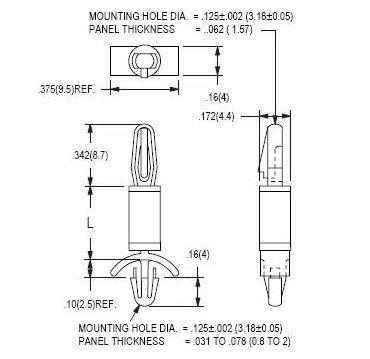

• 54 Series: .125 Board Hole x .125 Chassis Hole
  • 19725
  • Installs easily by hand
  • Reduces assembly time
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E41938
  • ASTM: D 4066 PA111
  • RoHS Compliant
  • Temp Range:  -40 to 185F (-40 to 85C)
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Request Quote/Sample
N/A .125 (3.18) inches (mm) Request Quote/Sample
N/A .187 (4.8) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) Request Quote/Sample
N/A .375 (9.6) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A .563 (14.3) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) Request Quote/Sample
