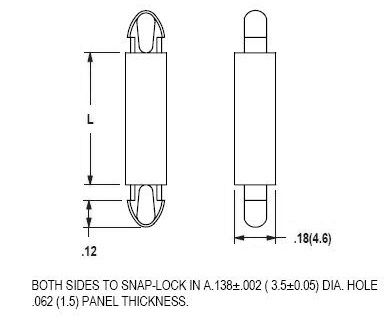

• 51 Series: .138 Board Hole x .138 Chassis Hole
  • 18629

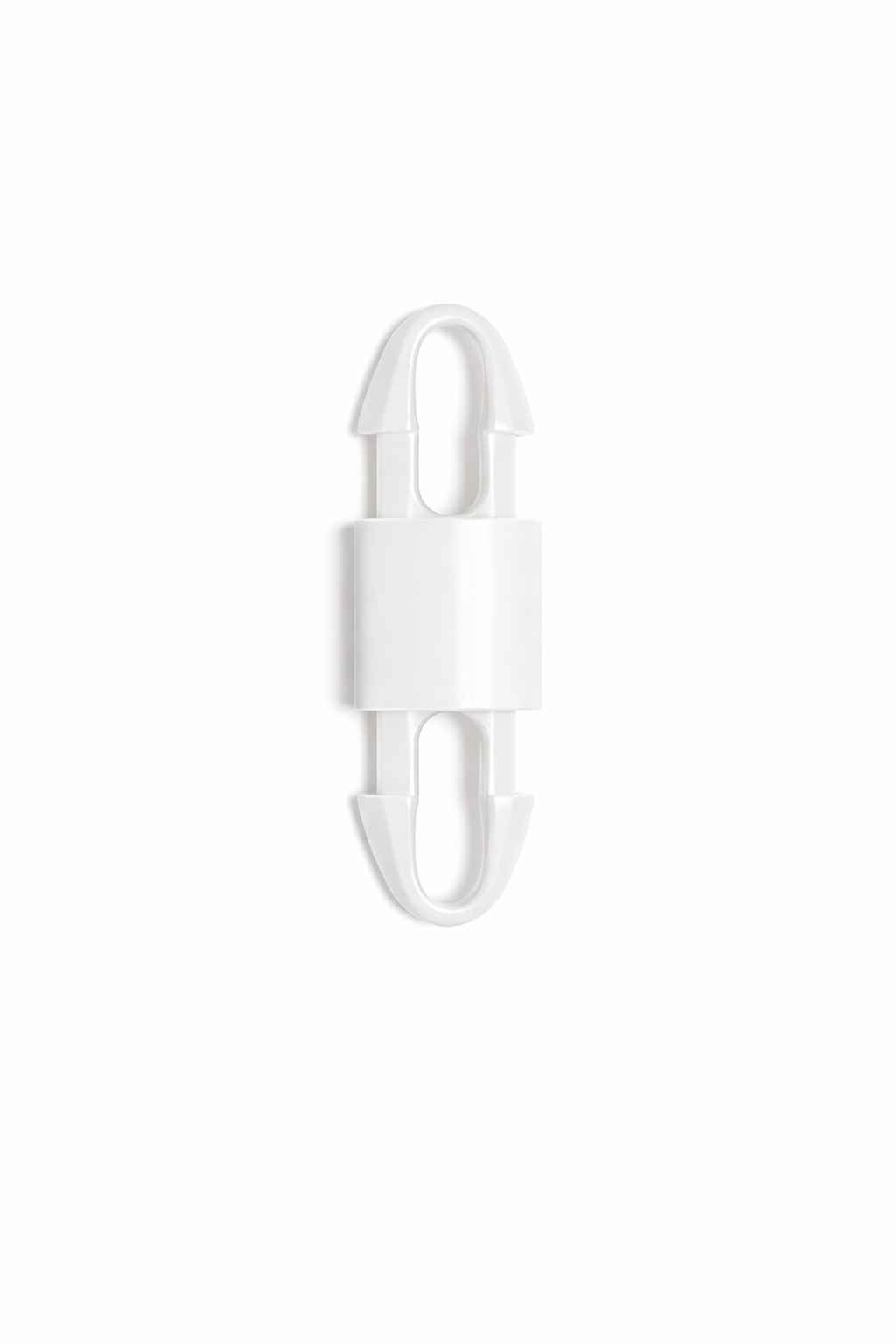

  • Dual locking board support
  • Teardrop head (.138 dia. Hole both ends)
  • Color: Natural
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (V-0 available - add "X" to end of part#)
  • UL File# E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185 F (-40 to 85 C)
1 - 14 of 14 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Dim. - L

Hole Diameter

Panel Thickness

Request Quote/Sample
N/A .078 (2) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .118 (3) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .156 (4) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .197 (5) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .236 (6) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .276 (7) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .314 (8) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .394 (10) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .472 (12) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .551 (14) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .630 (16) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .709 (18) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .787 (20) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
N/A .866 (22) inches (mm) N/A .138 (2.5) inches (mm) N/A .062 (1.5) inches (mm) Request Quote/Sample
