• 50 Series: .098 Board Hole x .098 Chassis Hole
  • 18264

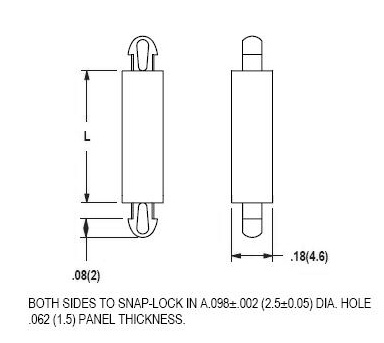

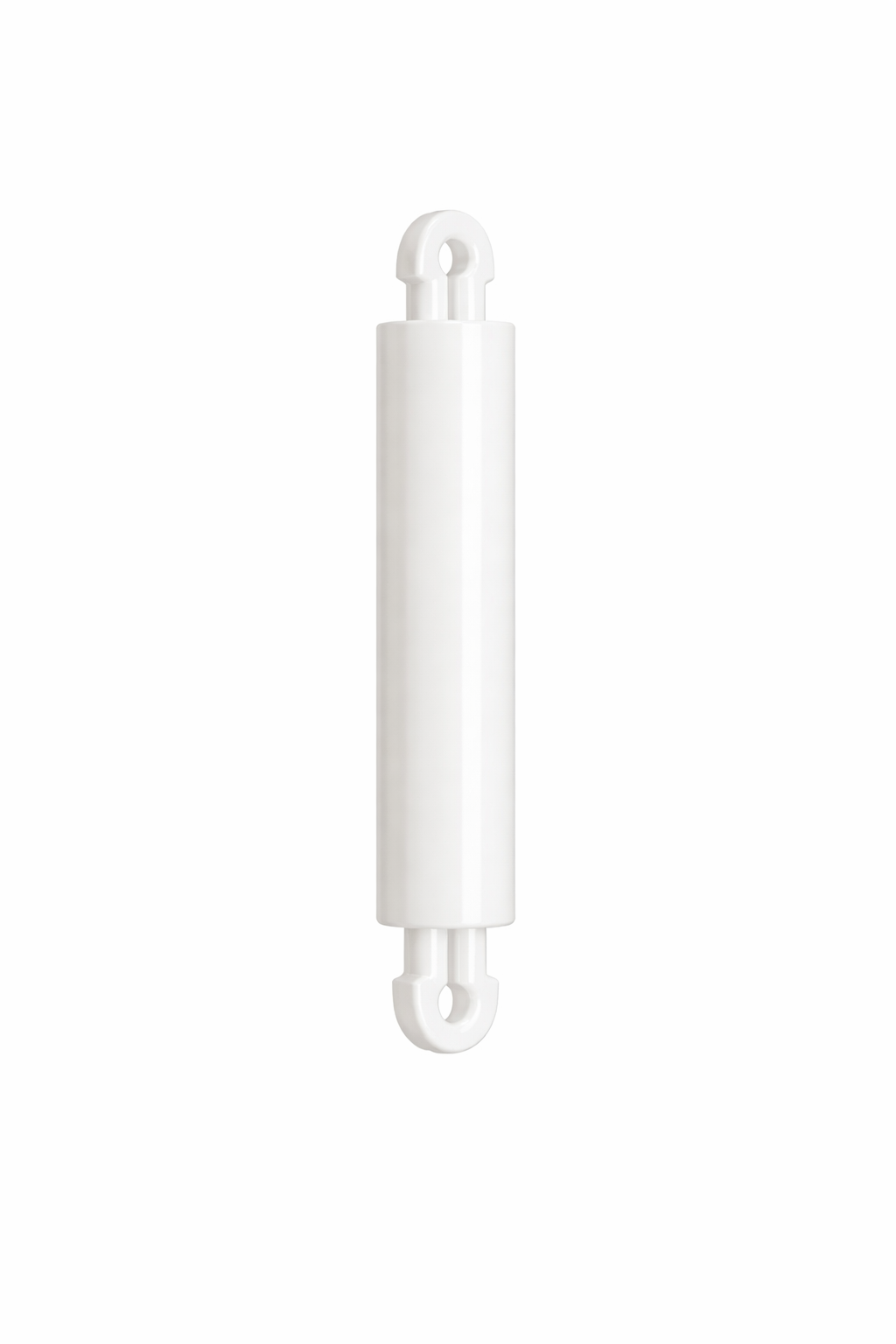

  • Dual locking board support
  • Teardrop head (.098 dia. Hole both ends)
  • Color: Natural
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (V-0 available - add "X" to end of part#)
  • UL File# E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185 F (-40 to 85 C)
1 - 14 of 14 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Dim. - L

Hole Diameter

Panel Thickness

Request Quote/Sample
N/A .078 (2mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .118 (3mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .156 (4mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .197 (5mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .236 (6mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .276 (7mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .314 (8mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .394 (10mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .472 (12mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .551 (14mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .630 (16mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .709 (18mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .787 (20mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
N/A .866 (22mm) +/- .015 inches (mm) N/A .098 (2.5mm) Both Ends inches (mm) N/A .062 (1.5mm) Both Ends inches (mm) Request Quote/Sample
