• 16 Series- .125 Board Hole x .125 Chassis Hole

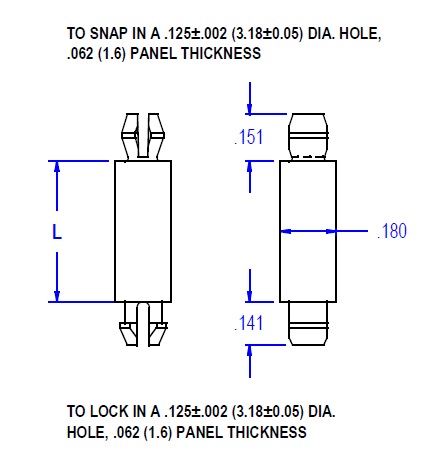

  • 01-16 Sketch.jpg

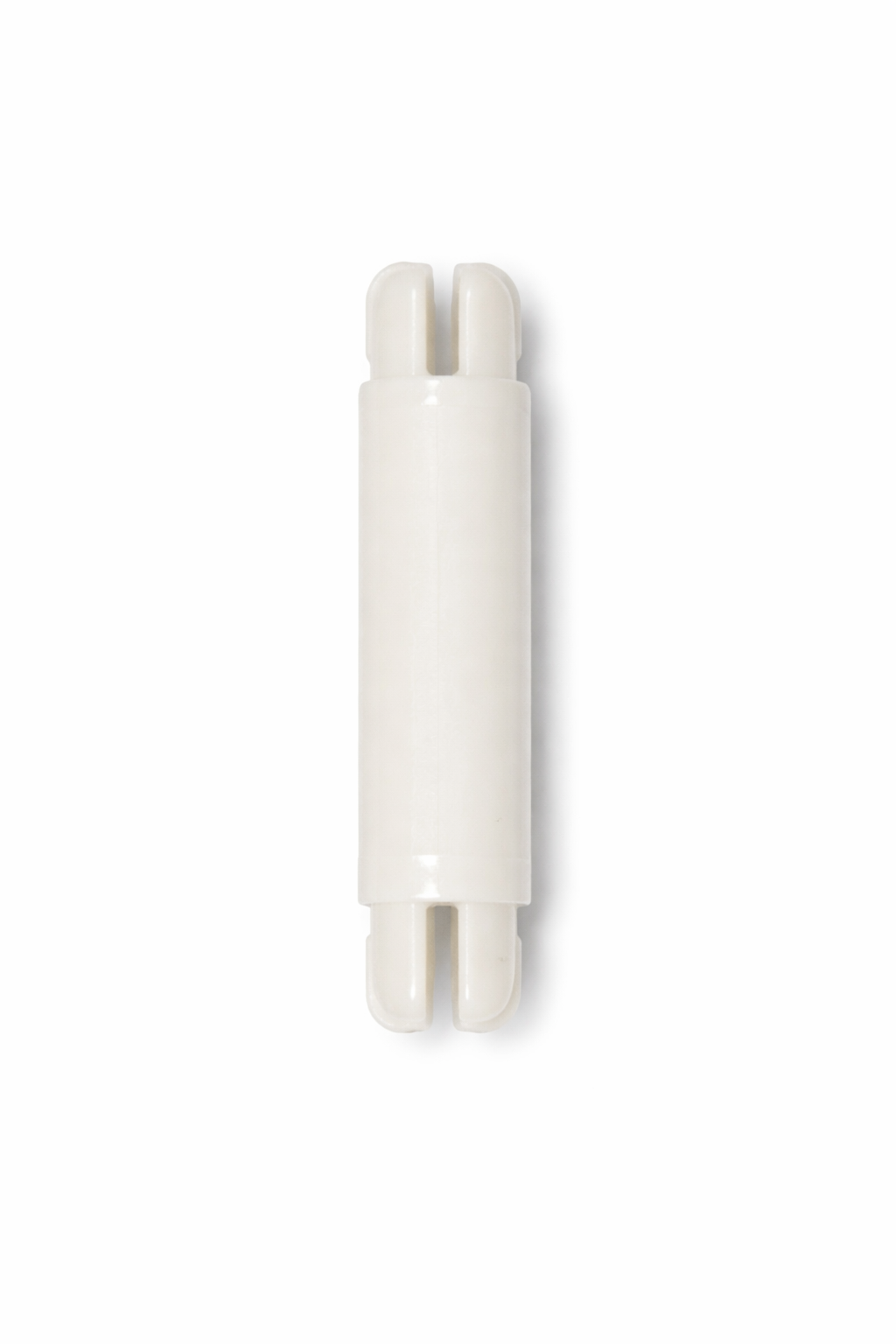

  • Miniature Support Post
  • Snap Fits into PCB and Locks into Chassis
  • Installs easily by hand
  • Releasable for repairs
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2
  • UL File No. E70062
  • ASTM: D 4066, PA0113
  • RoHS Compliant
  • Temp Range:  -40 to 185F (-40 to 85C)



1 - 21 of 21 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Request Quote/Sample
N/A .08 (2) inches (mm) Request Quote/Sample
N/A .100 (2.54) inches (mm) Request Quote/Sample
N/A .125 (3.18) inches (mm) Request Quote/Sample
N/A .187 (4.8) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) Request Quote/Sample
N/A .375 (9.6) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A .563 (14.3) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) Request Quote/Sample
N/A .688 (17.5) inches (mm) Request Quote/Sample
N/A .750 (19.1) inches (mm) Request Quote/Sample
N/A .812 (20.6) inches (mm) Request Quote/Sample
N/A .875 (22.2) inches (mm) Request Quote/Sample
N/A .937 (23.8) inches (mm) Request Quote/Sample
N/A 1.00 (25.4) inches (mm) Request Quote/Sample
N/A 1.125 (28.6) inches (mm) Request Quote/Sample
N/A 1.25 (31.7) inches (mm) Request Quote/Sample
N/A 1.375 (34.9) inches (mm) Request Quote/Sample
N/A 1.50 (38.1) inches (mm) Request Quote/Sample
