• 05A Series: .156 Board Hole x .156 Chassis Hole

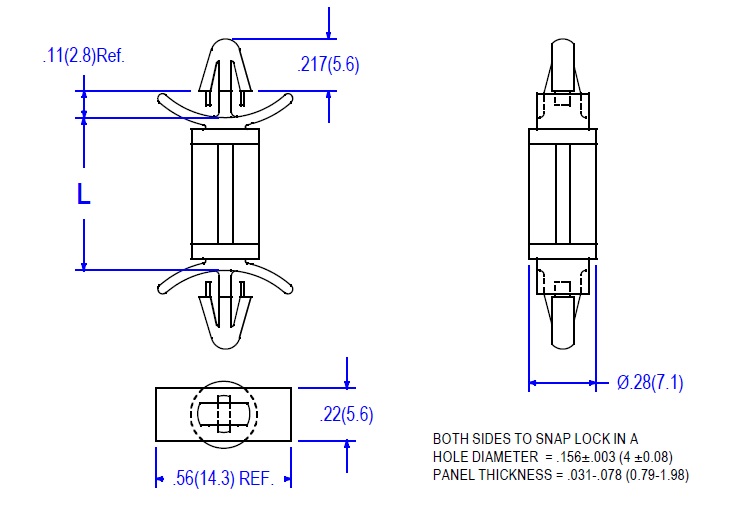

  • 01-05A Sketch

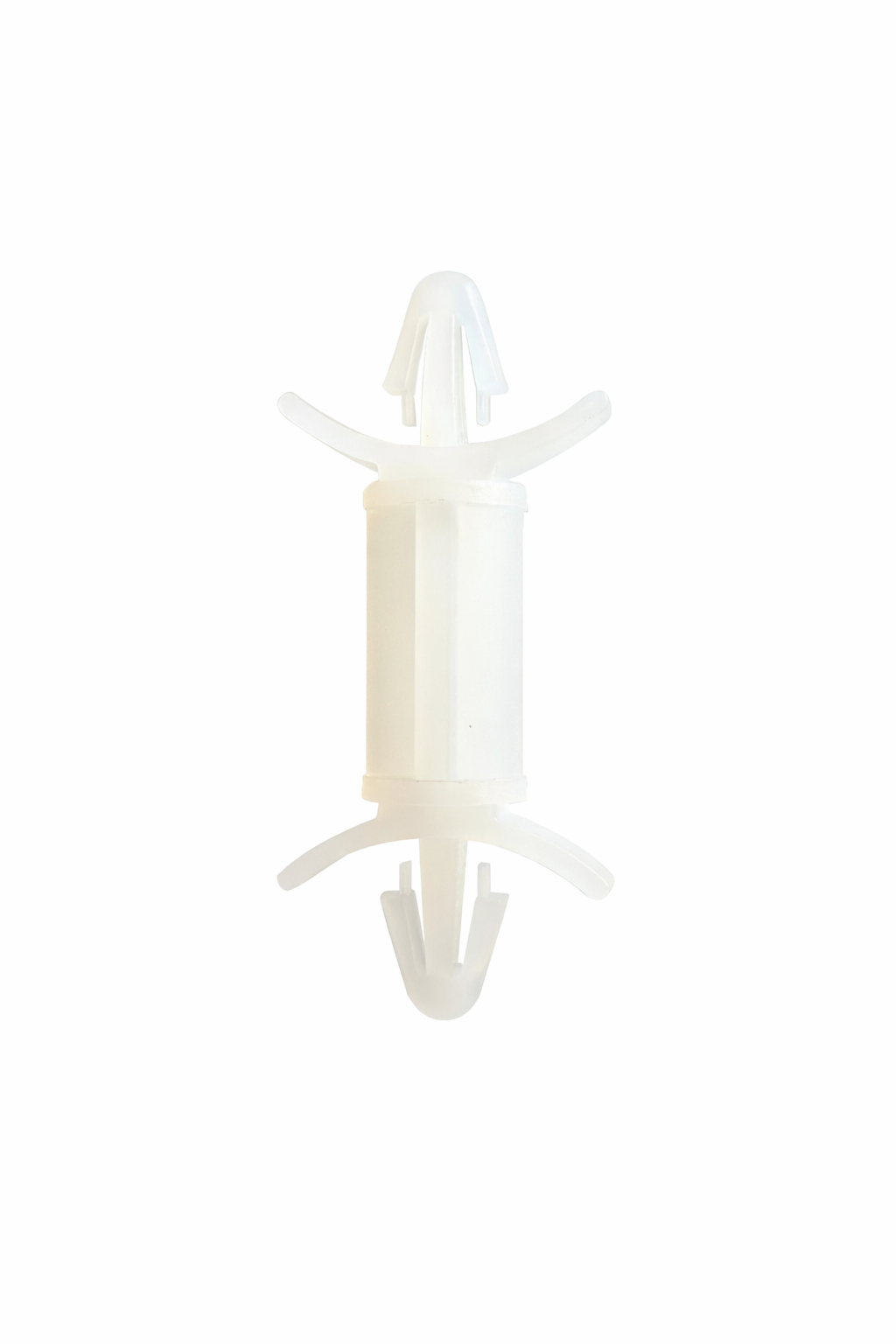

  • Circuit Board Support(PCB)
  • For: .031 to .078 Thick Chassis
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to part#)
  • UL File No: E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Request Quote/Sample
N/A .187 (4.8) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) Request Quote/Sample
N/A .750 (19.1) inches (mm) Request Quote/Sample
N/A .875 (22.2) inches (mm) Request Quote/Sample
