• 13A Series: .156 Board Hole x .187 Chassis Hole(Non-Locking Top)

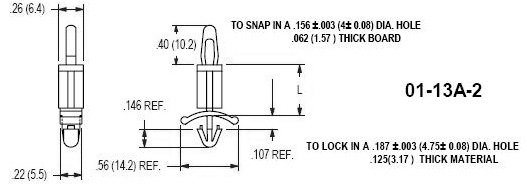

  • 01-13A-2

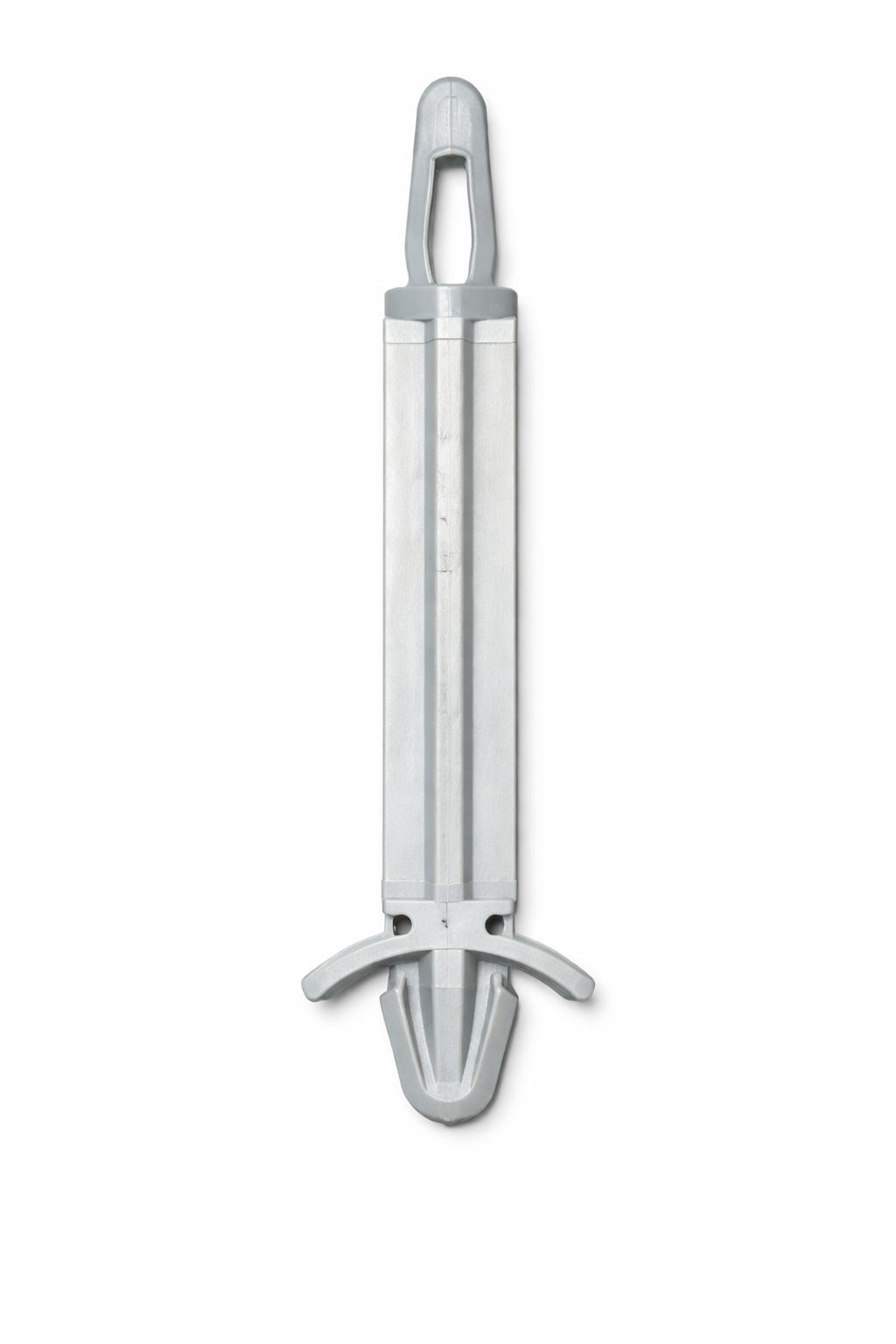

  • Circuit Board Support (PCB Support Non-Locking Top)
  • For: .062 Thick PCB x .125 Thick Chassis
  • Snap Fit into PCB - Lock into Chassis
  • Packaging: 500/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to part#)
  • UL File No: E70062
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L +/- .015

Board Thickness

Chassis Thickness

Request Quote/Sample
N/A .187 (4.8) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A .750 (19.1) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A .875 (22.2) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A 1.00 (25.4) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A 1.12 (28.6) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A 1.25 (31.8) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
N/A 1.38 (34.9) inches (mm) N/A .062 (1.6) inches (mm) N/A .125 (3.17) inches (mm) Request Quote/Sample
