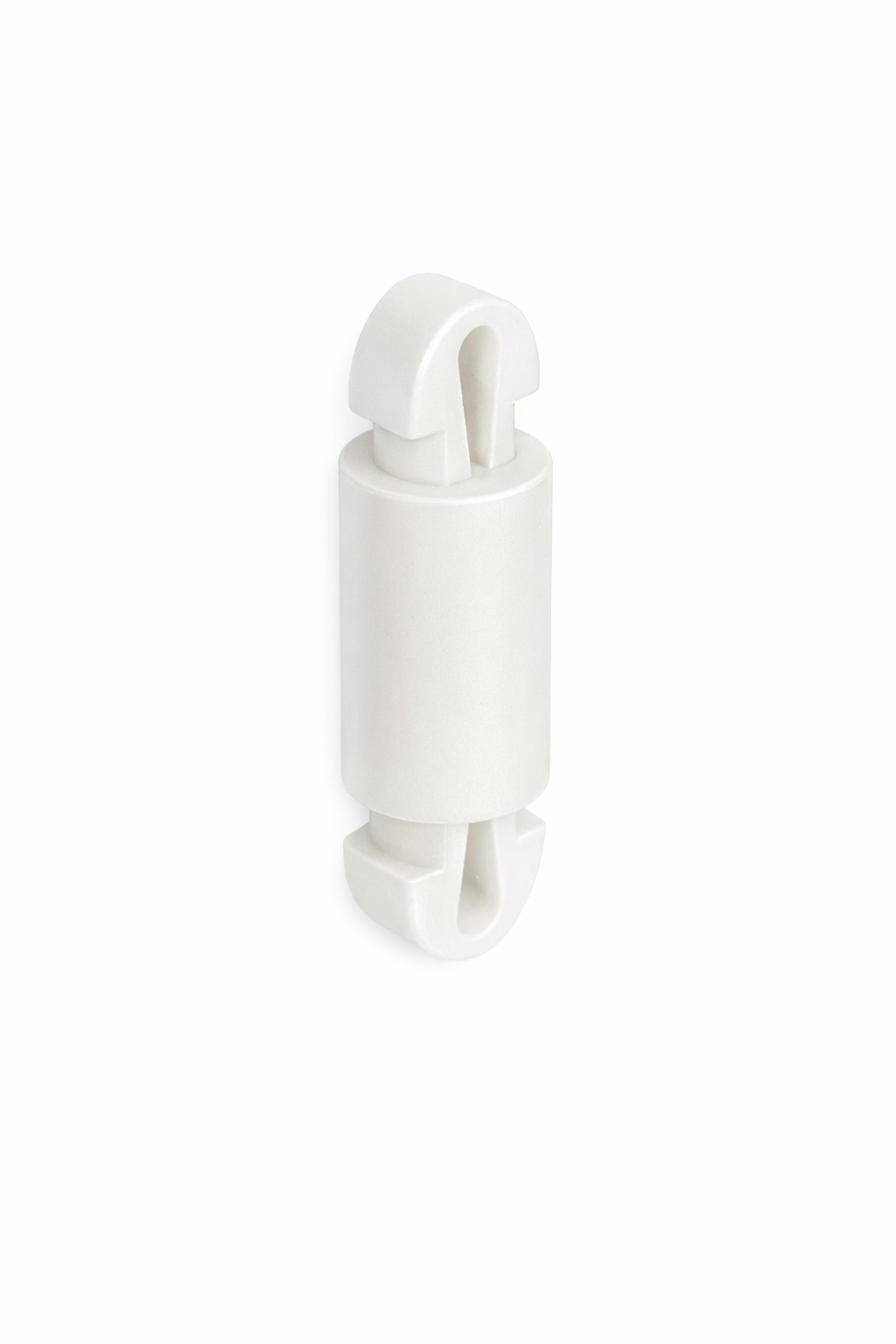

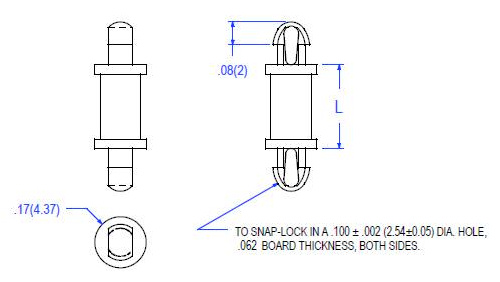

28 Series: .100 Board Hole x .100 Chassis Hole
Arrowhead/Snap Fit
- Dual locking board support
- Teardrop head (.100 dia. Mtg Hole Both Ends)
- Color: Natural
- Packaging: 1000/bag
- Material: Nylon 66 UL94V-2 (UL94V-0 available - add"X" to end of part#)
- UL File# E41938
- ASTM: D 4066, PA111
- RoHS Compliant
- Temp Range: -40 to 185F (-40 to 85C)
Item # |
Material Code |
Dim. - L |
Hole Diameter |
Panel Thickness |
Dim. - D |
Request Quote/Sample |
|---|---|---|---|---|---|---|
| 01-28-10 01-28-10/Asset/01-28.png | Material Code N/A UL94V-2 | Dim. - L N/A .062 (1.6) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-20 01-28-20/Asset/01-28.png | Material Code N/A UL94V-2 | Dim. - L N/A .125 (3.2) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-30 01-28-30/Asset/01-28.png | Material Code N/A UL94V-2 | Dim. - L N/A .187 (4.8) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-40 01-28-40/Asset/01-28.png | Material Code N/A UL94V-2 | Dim. - L N/A .250 (6.4) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-50 01-28-50/Asset/01-28.png | Material Code N/A UL94V-2 | Dim. - L N/A .312 (7.9) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-60 01-28-60/Asset/01-28.png | Material Code N/A UL94V-2 | Dim. - L N/A .375 (9.5) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-70 01-28-70/Asset/01-28.png | Material Code N/A UL94V-2 | Dim. - L N/A .438 (11.1) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-80 01-28-80/Asset/01-28.png | Material Code N/A UL94V-2 | Dim. - L N/A .500 (12.7) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-100 01-28-100/Asset/01-28.png | Material Code N/A UL94V-2 | Dim. - L N/A .625 (15.9) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-10X 01-28-10X/Asset/01-28.png | Material Code N/A UL94V-0 | Dim. - L N/A .062 (1.6) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-20X 01-28-20X/Asset/01-28.png | Material Code N/A UL94V-0 | Dim. - L N/A .125 (3.2) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-30X 01-28-30X/Asset/01-28.png | Material Code N/A UL94V-0 | Dim. - L N/A .187 (4.8) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-40X 01-28-40X/Asset/01-28.png | Material Code N/A UL94V-0 | Dim. - L N/A .250 (6.4) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-50X 01-28-50X/Asset/01-28.png | Material Code N/A UL94V-0 | Dim. - L N/A .312 (7.9) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-60X 01-28-60X/Asset/01-28.png | Material Code N/A UL94V-0 | Dim. - L N/A .375 (9.5) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-70X 01-28-70X/Asset/01-28.png | Material Code N/A UL94V-0 | Dim. - L N/A .438 (11.1) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-80X 01-28-80X/Asset/01-28.png | Material Code N/A UL94V-0 | Dim. - L N/A .500 (12.7) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
| 01-28-100X 01-28-100X/Asset/01-28.png | Material Code N/A UL94V-0 | Dim. - L N/A .625 (15.9) inches (mm) | Hole Diameter N/A .100 (2.54) inches (mm) | Panel Thickness N/A .064 (1.63) inches (mm) | Dim. - D N/A .172 (4.4) inches (mm) | Request Quote/Sample |
