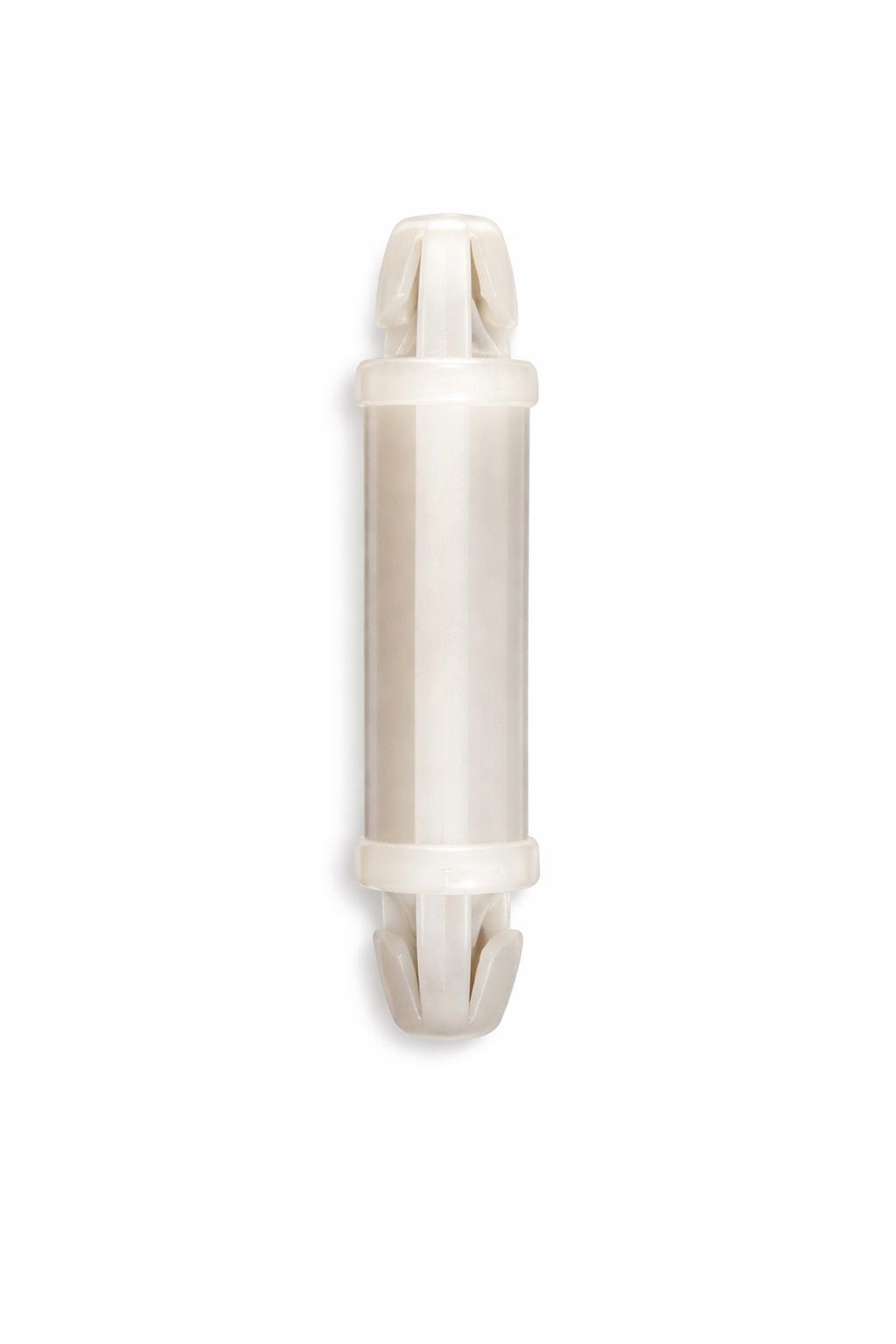

27 Series: 4mm Board Hole x 4mm Chassis Hole
Arrowhead/Snap Fit
- Metric dual locking support post
- 4mm Mounting Hole(Both ends)
- Packaging: 1000/bag
- Material: Nylon 66(UL94V-2) (V-0 available - add 'X' to end of part#)
- UL File# E41938
- RoHS Compliant
- Temp Range: -40 to 185 F
Item # |
Material Code |
Color |

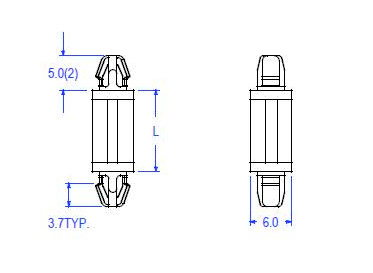

Dim. - L |
(PT) Panel Thickness |
Mounting Hole Diameter |
Request Quote/Sample |
|---|---|---|---|---|---|---|
| 01-27-30 01-27-30/Asset/01-27.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 3.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-40 01-27-40/Asset/01-27.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 4.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-60 01-27-60/Asset/01-27.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 6.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-80 01-27-80/Asset/01-27.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 8.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-100 01-27-100/Asset/01-27.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 10.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-120 01-27-120/Asset/01-27.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 12.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-140 01-27-140/Asset/01-27.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 14.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-160 01-27-160/Asset/01-27.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 16.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-180 01-27-180/Asset/01-27.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 18.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-30X 01-27-30X/Asset/01-27.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 3.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-40X 01-27-40X/Asset/01-27.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 4.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-60X 01-27-60X/Asset/01-27.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 6.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-80X 01-27-80X/Asset/01-27.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 8.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-100X 01-27-100X/Asset/01-27.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 10.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-120X 01-27-120X/Asset/01-27.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 12.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-140X 01-27-140X/Asset/01-27.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 14.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-160X 01-27-160X/Asset/01-27.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 16.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
| 01-27-180X 01-27-180X/Asset/01-27.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 18.0 ± .38 mm | (PT) Panel Thickness N/A 1.6 mm | Mounting Hole Diameter N/A 4.0 mm | Request Quote/Sample |
