• 13-8 Series: .156 Board Hole(.062 Thk Brd) x .187 Chassis Hole(.008-.055 Thick Chassis)

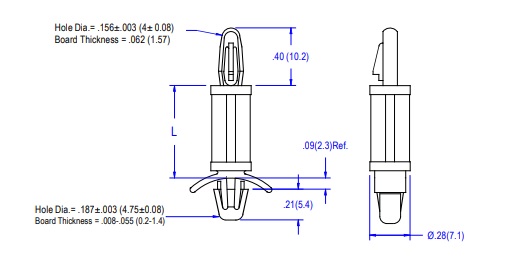

  • 01-13-8 Sketch

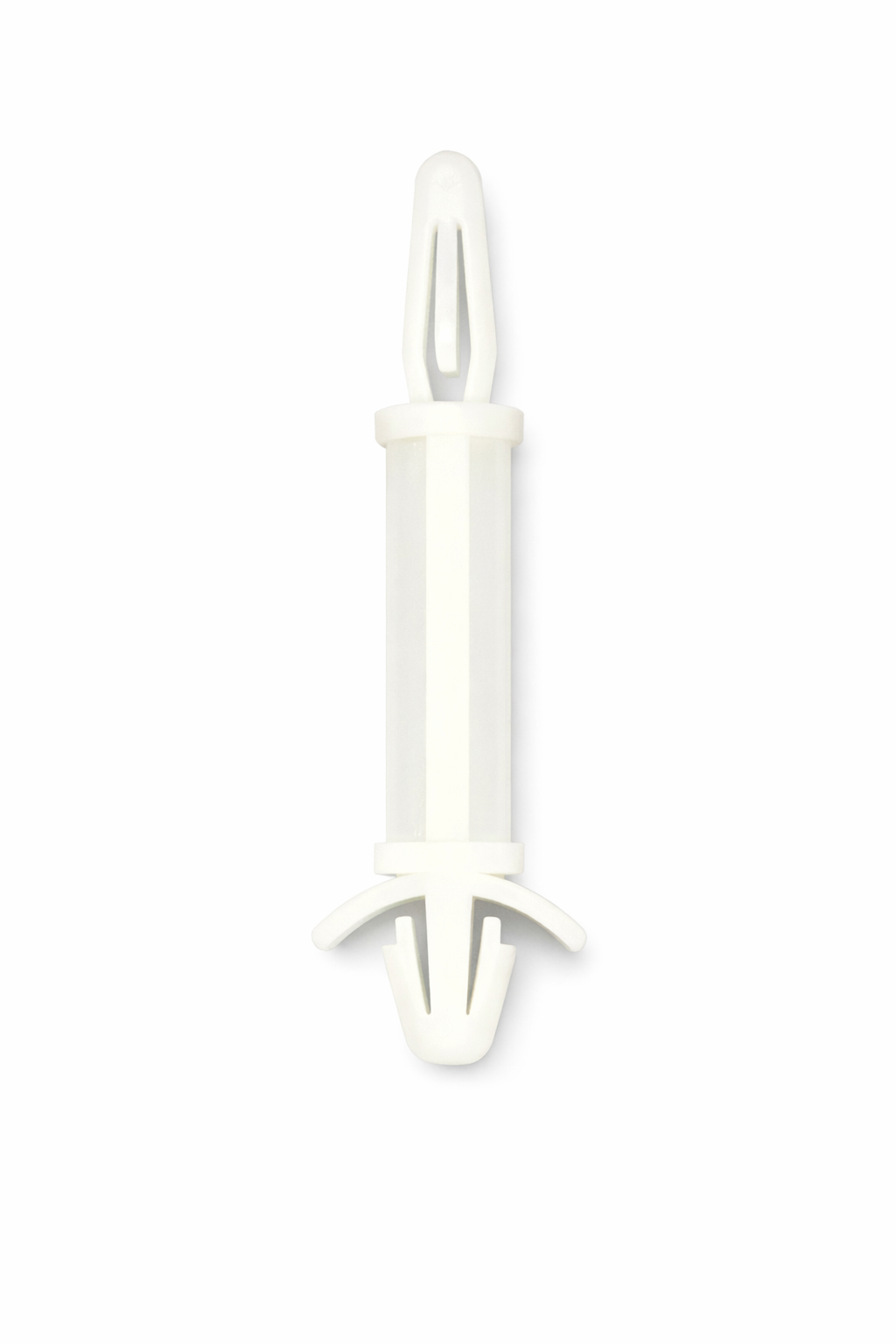

  • Circuit Board Support
  • PCB Support for .062 Thick PCB x .008-.055 Thick Chasis
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to part#)
  • UL File No: E70062
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L +/- .015

Board Thickness

Chassis Thickness

Request Quote/Sample
N/A .187 (4.8) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A .750 (19.1) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A .875 (22.2) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A 1.00 (25.4) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A 1.125 (28.6) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A 1.250 (31.7) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
N/A 1.375 (34.9) inches (mm) N/A .062(1.6) inches (mm) N/A .008-.055 (.2-1.4) inches (mm) Request Quote/Sample
