19 Series: .187 Board Hole x .187 Chassis Hole
Arrowhead/Snap Fit

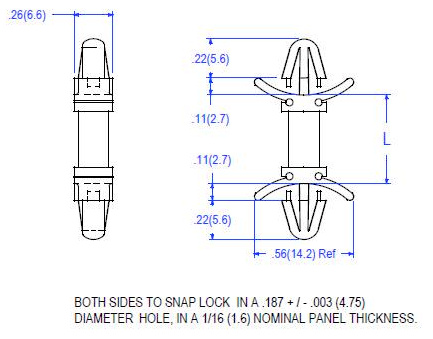

.jpg "01-19 Sketch")
.jpg "01-19 Sketch")
- Dual locking board support
- Installs easily by hand
- Mounting hole diameter is .187 (4.8mm) for both ends
- Releasable for repairs
- Packaging: 500/bag
- Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
- UL File No: E70062
- ASTM: D 4066, PA0113
- RoHS Compliant
- Temp Range: -40 to 185F (-40 to 85C)
Item # |
Material Code |
Color |
Dim. - L |
Board Hole Diameter |
Chassis Hole Diameter |
Panel Thickness |
Request Quote/Sample |
|---|---|---|---|---|---|---|---|

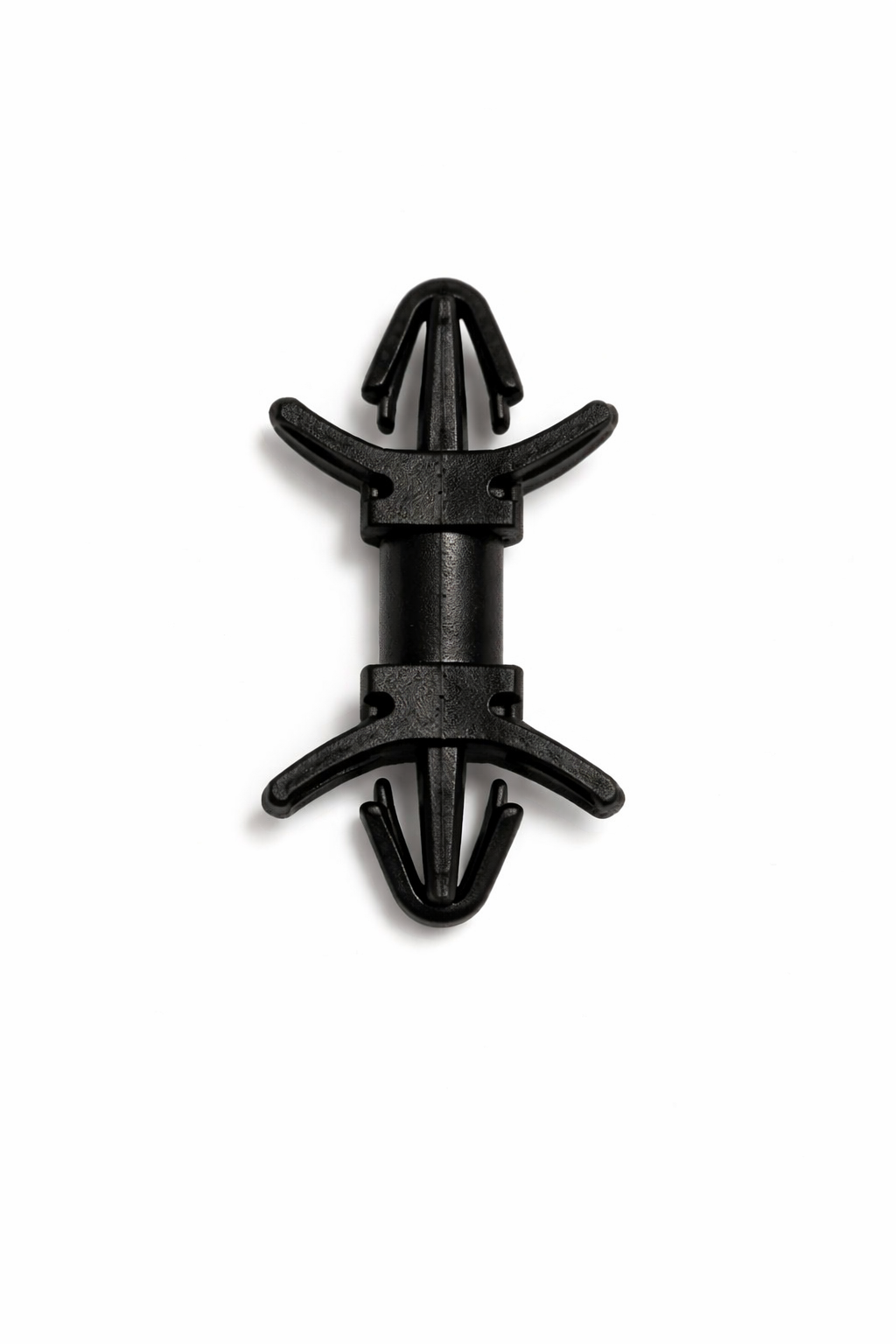

| 01-19-30 01-19-30/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .187 (4.8) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-40 01-19-40/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .250 (6.4) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-50 01-19-50/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .312 (7.9) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-60 01-19-60/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .375 (9.6) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-70 01-19-70/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .437 (11.1) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-80 01-19-80/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .500 (12.7) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-90 01-19-90/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .562 (14.3) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-100 01-19-100/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .625 (15.9) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-110 01-19-110/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .687 (17.5) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-120 01-19-120/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .750 (19) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-130 01-19-130/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .812 (20.6) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-140 01-19-140/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .875 (22.2) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
| 01-19-160 01-19-160/Asset/01-19.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.00 (25.4) inches (mm) | Board Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Hole Diameter N/A .187 (4.8) inches (mm) | Panel Thickness N/A .063 (1.6) inches (mm) | Request Quote/Sample |
