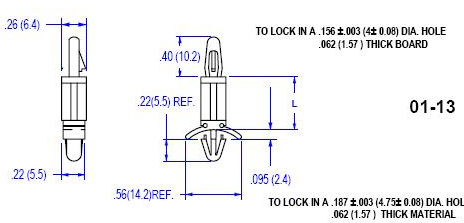

13 Series: .156 Board Hole x .187 Chassis Hole
Arrowhead/Snap Fit
.jpg "41275")
.jpg "41275")

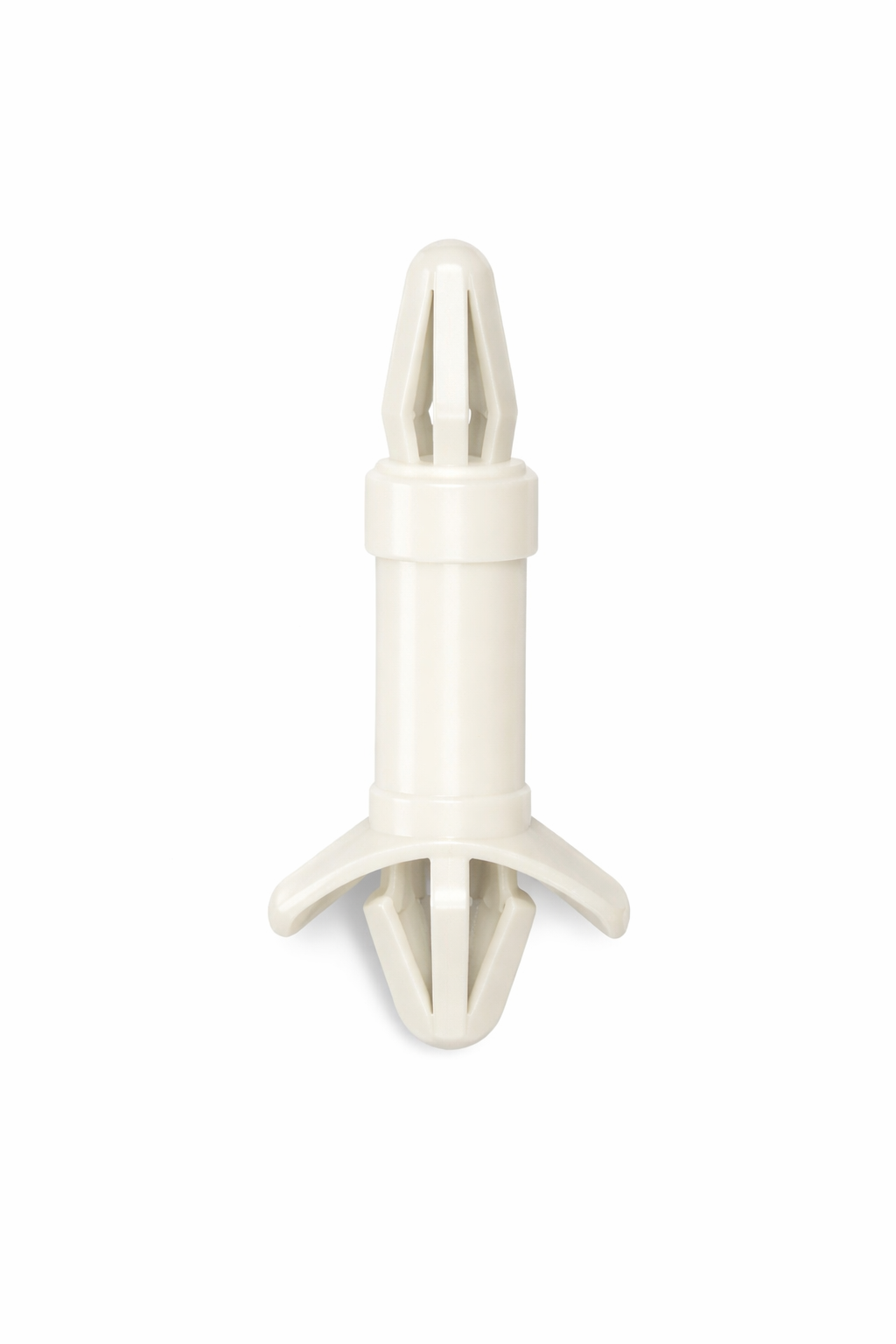

- Circuit Board Support(PCB)
- Locking Top Style
- For: .062 Thick PCB x .062 Thick Chassis
- Packaging: 500/bag
- Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to part#)
- UL File No: E70062
- ASTM: D 4066, PA111
- RoHS Compliant
- Temp Range: -40 to 185F (-40 to 85C)
Item # |
Material Code |
Color |
Dim. - L |
Board Thickness |
Chassis Thickness |
Request Quote/Sample |
|---|---|---|---|---|---|---|
| 01-13-30 01-13-30/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .187 (4.8) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-40 01-13-40/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .250 (6.4) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-50 01-13-50/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .312 (7.9) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-60 01-13-60/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .375 (9.5) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-70 01-13-70/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .437 (11.1) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-80 01-13-80/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .500 (12.7) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-100 01-13-100/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .625 (15.9) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-120 01-13-120/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .750 (19.1) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-140 01-13-140/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .875 (22.2) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-160 01-13-160/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.00 (25.4) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-180 01-13-180/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.12 (28.6) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-200 01-13-200/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.25 (31.8) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
| 01-13-220 01-13-220/Asset/01-13.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.38 (34.9) inches (mm) | Board Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Chassis Thickness N/A .031 - .063 (.8 - 1.6) inches (mm) | Request Quote/Sample |
