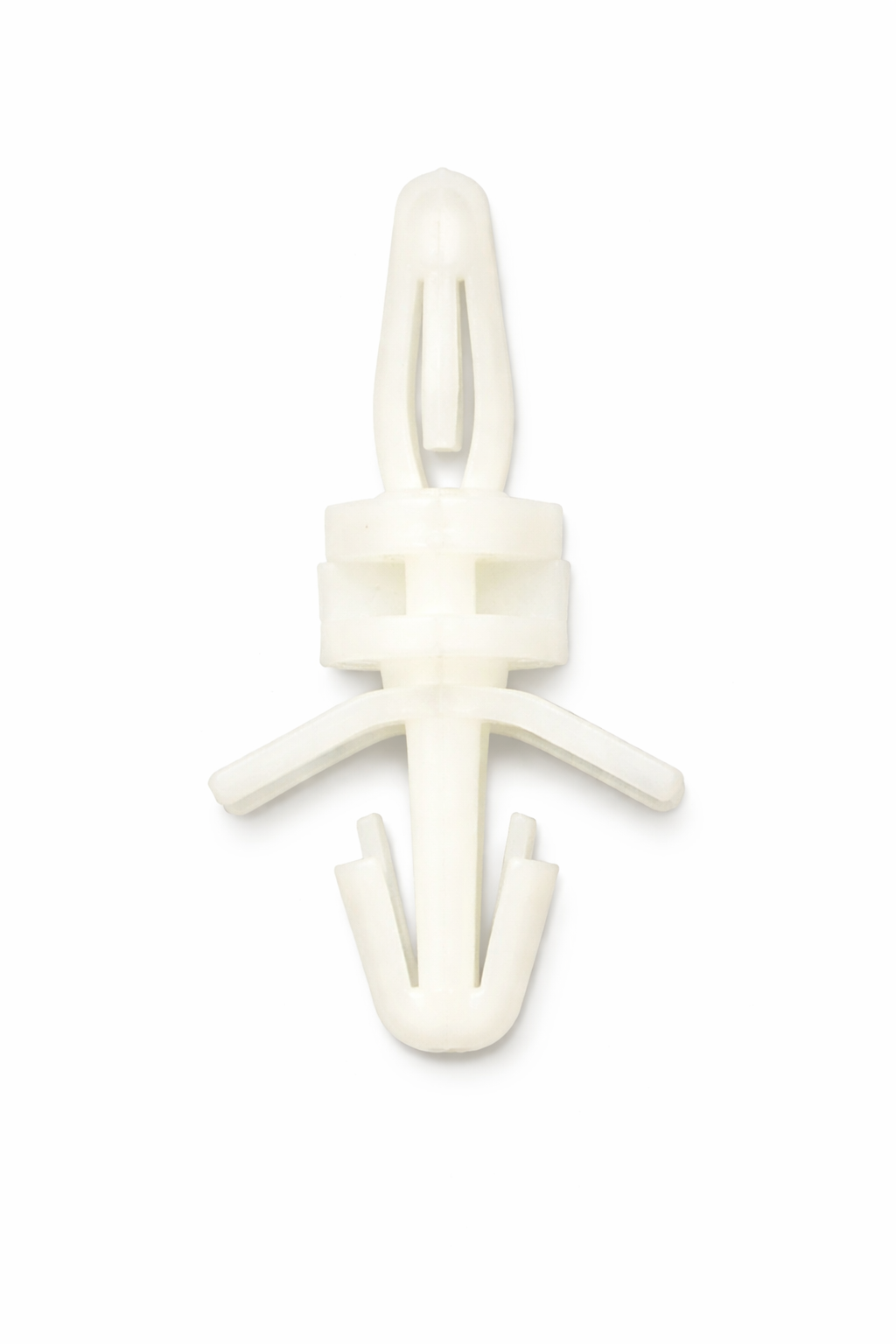

• 13M Series: .156 Board Hole x .187 Chassis Hole

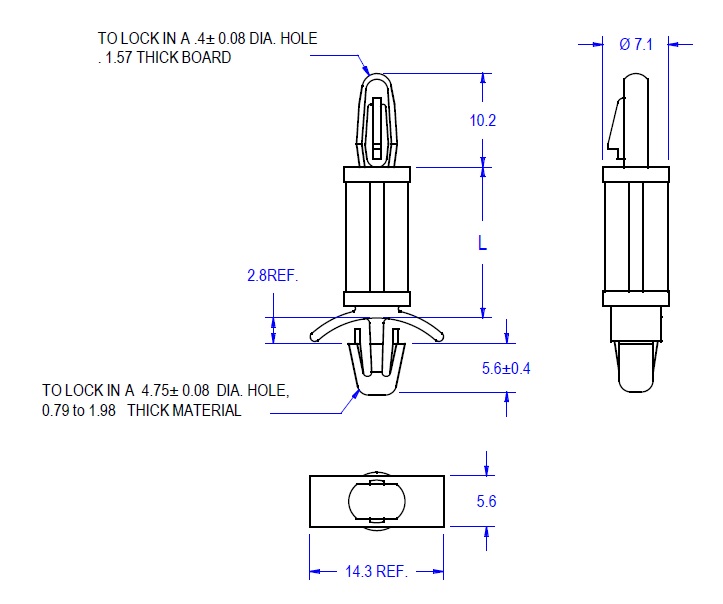

  • 01-13M SKETCH
  • .156 PCB Hole x .187 Chassis Hole
  • Circuit Board Support
  • Metric Spacing
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to part#)
  • UL File No: E70062
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L +/- .4 mm

Request Quote/Sample
N/A 6 inches (mm) Request Quote/Sample
N/A 8 inches (mm) Request Quote/Sample
N/A 10 inches (mm) Request Quote/Sample
N/A 12 inches (mm) Request Quote/Sample
N/A 14 inches (mm) Request Quote/Sample
N/A 16 inches (mm) Request Quote/Sample
