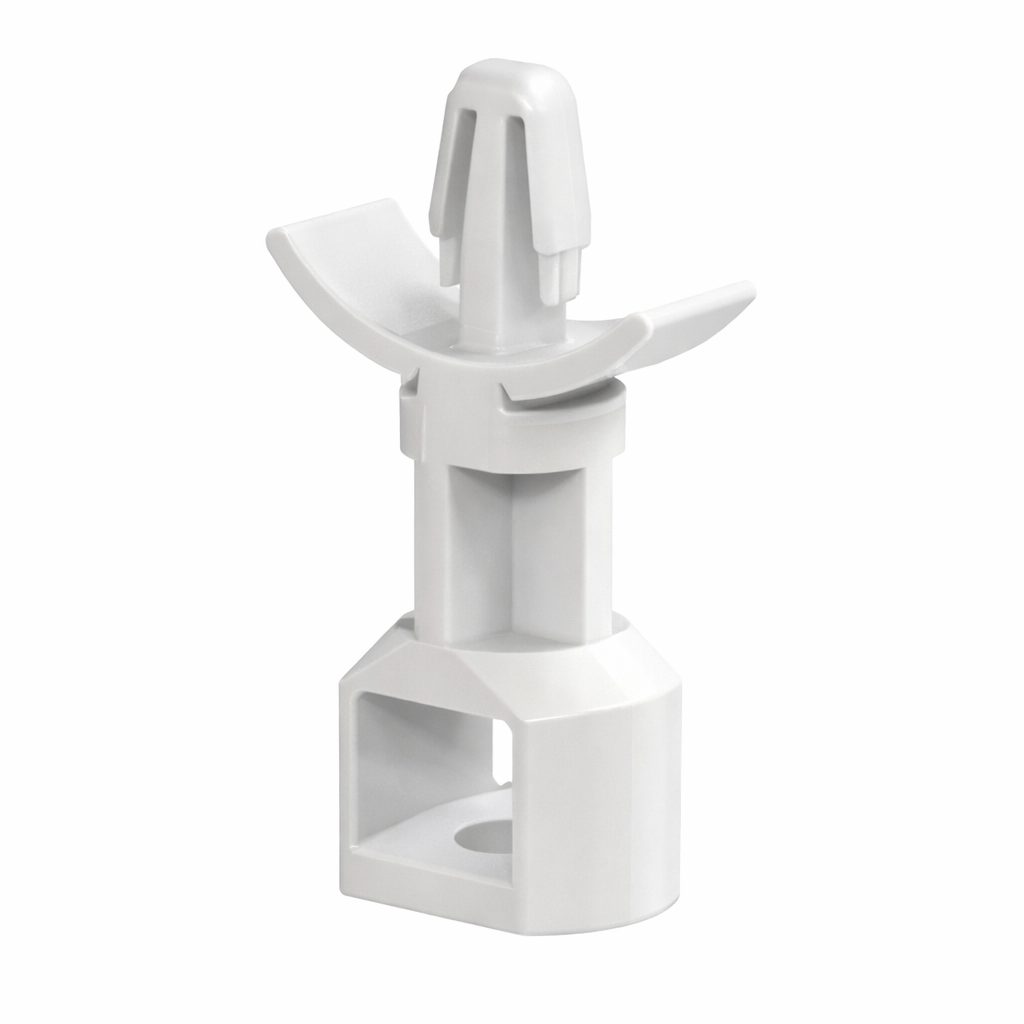

• 77 Series: .187 Board Hole x Plastic Rivet Chassis Mount
  • Snap Rivet Locking Circuit Board Support
  • .187 PCB Mtg Hole
  • PCB Support: Rivet Mount to Chassis (Releaseable)  Use AEH 06-01-Series
  • .062 PCB Thickness x .026 up to .341 Chassis Thickness Range
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Chassis Thickness Range Available (Min-Max)

Use AEH Snap Rivet(06-01 Series -Sold Separately)

Request Quote/Sample
N/A .437 (11.1) inches (mm) N/A .026 - .341 (.7-8.7) inches (mm) N/A Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) N/A .026 - .341 (.7-8.7) inches (mm) N/A Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) N/A .026 - .341 (.7-8.7) inches (mm) N/A Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm) inches (mm) Request Quote/Sample
N/A .750 (19.1) inches (mm) N/A .026 - .341 (.7-8.7) inches (mm) N/A Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm) inches (mm) Request Quote/Sample
N/A .875 (22.2) inches (mm) N/A .026 - .341 (.7-8.7) inches (mm) N/A Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm) inches (mm) Request Quote/Sample
N/A 1.00 (25.4) inches (mm) N/A .026 - .341 (.7-8.7) inches (mm) N/A Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm) inches (mm) Request Quote/Sample
