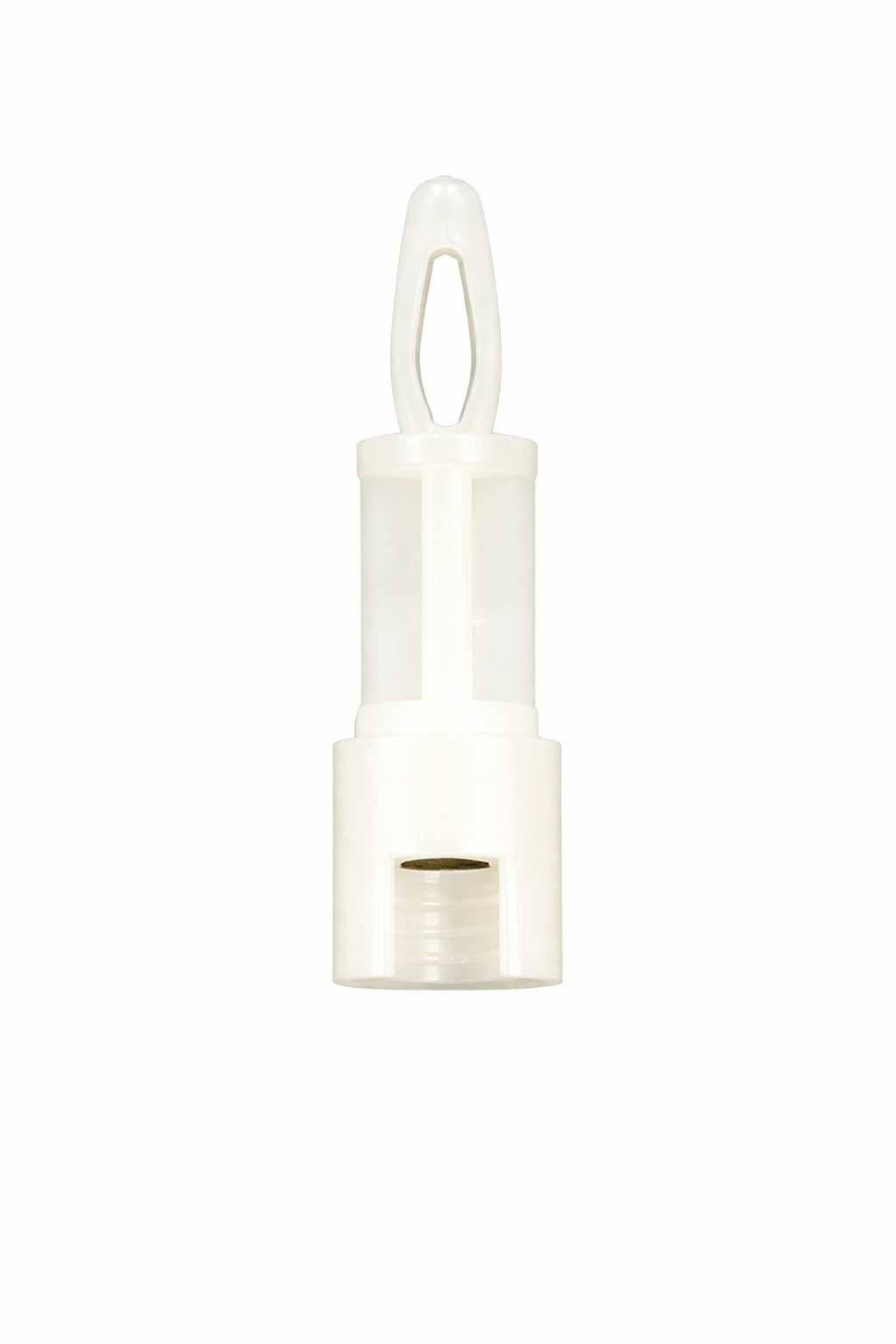

• 75 & 75M4 Series: .156 Board Hole x Threaded Screw(6-32 or M4) Chassis Mount

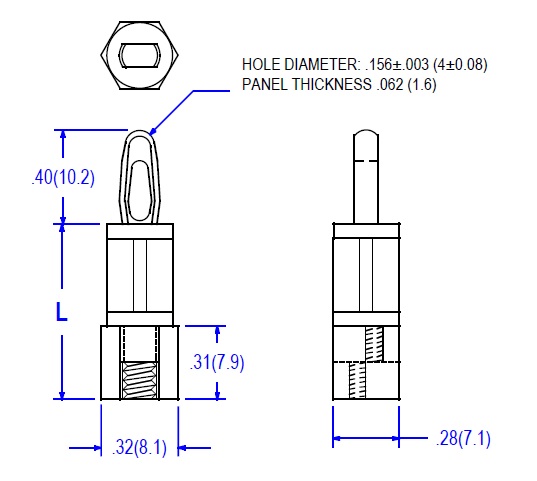

  • 01-75 Sketch
  • Circuit Board Support Threaded Female
  • #6-32 or M4 Female Thread Chassis Mount
  • .156 PCB Mtg Hole - Snap Fit(Non-Lock)
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Thread Size

Dim. - L

Request Quote/Sample
N/A 6-32 N/A .375 (9.5) inches (mm) Request Quote/Sample
N/A M-4 N/A .375 (9.5) inches (mm) Request Quote/Sample
N/A 6-32 N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A M4 N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A 6-32 N/A .625 (15.9) inches (mm) Request Quote/Sample
N/A M4 N/A .625 (15.9) inches (mm) Request Quote/Sample
N/A 6-32 N/A .750 (19.1) inches (mm) Request Quote/Sample
N/A M4 N/A .750 (19.1) inches (mm) Request Quote/Sample
N/A 6-32 N/A .875 (22.2) inches (mm) Request Quote/Sample
N/A M4 N/A .875 (22.2) inches (mm) Request Quote/Sample
N/A 6-32 N/A 1.00 (25.4) inches (mm) Request Quote/Sample
N/A M4 N/A 1.00 (25.4) inches (mm) Request Quote/Sample
