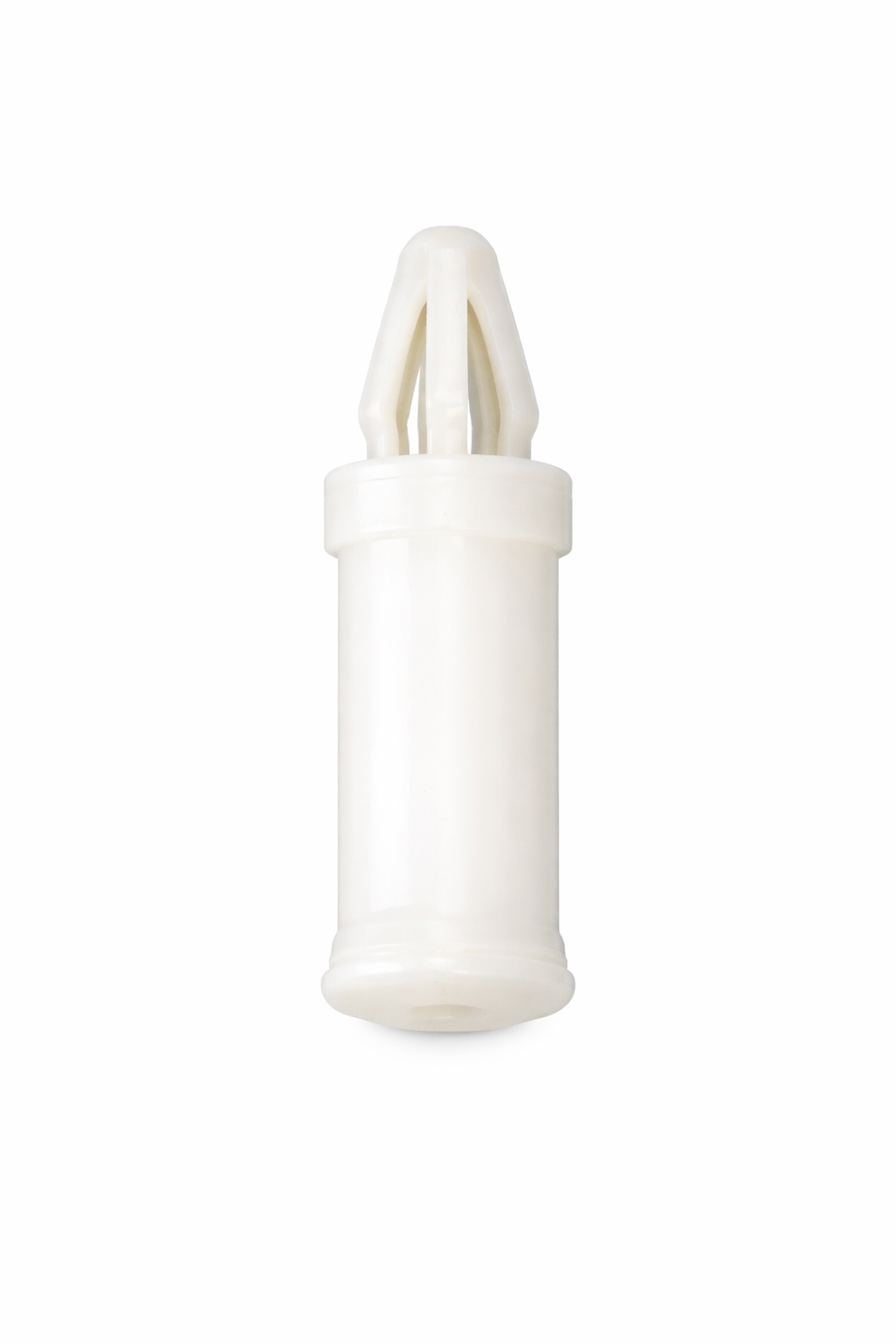

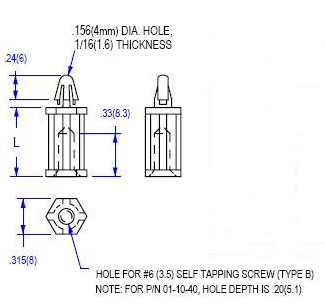

10 Series: .156 Board Hole x #6 Self Tapping Screw
Arrowhead/Screw-Rivet Mount(Combo)
.jpg "46296")
.jpg "46296")
- Installs easily by hand to chassis with self-tapping screw
- Minimal protrusion; ideal for limited space applications
- PC board mount end is releasable
- Packaging: 500/bag
- Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
- UL File No: E53664
- ASTM: D 4066, PA111
- RoHS Compliant
- Temp Range: -40 to 185F (-40 to 85C)
Item # |
Material Code |
Color |
Dim. - L |
Chassis Thickness |
Board Hole Diameter |
Request Quote/Sample |
|---|---|---|---|---|---|---|
| 01-10-40 01-10-40/Asset/01-10.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .250 (6.4) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-60 01-10-60/Asset/01-10.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .375 (9.5) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-80 01-10-80/Asset/01-10.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .500 (12.7) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-100 01-10-100/Asset/01-10.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .625 (15.9) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-120 01-10-120/Asset/01-10.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .750 (19.1) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-140 01-10-140/Asset/01-10.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .875 (22.2) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-160 01-10-160/Asset/01-10.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.00 (25.4) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-180 01-10-180/Asset/01-10.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.13 (28.6) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-220 01-10-220/Asset/01-10.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.38 (34.9) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-40X 01-10-40X/Asset/01-10.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .250 (6.4) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-60X 01-10-60X/Asset/01-10.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .375 (9.5) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-80X 01-10-80X/Asset/01-10.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .500 (12.7) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-100X 01-10-100X/Asset/01-10.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .625 (15.9) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-120X 01-10-120X/Asset/01-10.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .750 (19.1) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-140X 01-10-140X/Asset/01-10.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .875 (22.2) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-160X 01-10-160X/Asset/01-10.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 1.00 (25.4) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-180X 01-10-180X/Asset/01-10.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 1.13 (28.6) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
| 01-10-220X 01-10-220X/Asset/01-10.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 1.38 (34.9) inches (mm) | Chassis Thickness N/A .063 (1.6) inches (mm) | Board Hole Diameter N/A .156 (4.0) inches (mm) | Request Quote/Sample |
