• 19 Series: Locking Clip

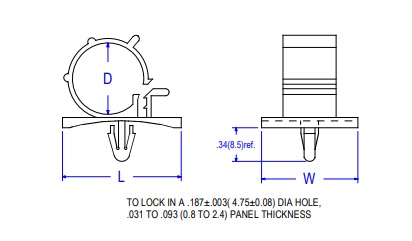

  • 04-19 Sketch.jpg

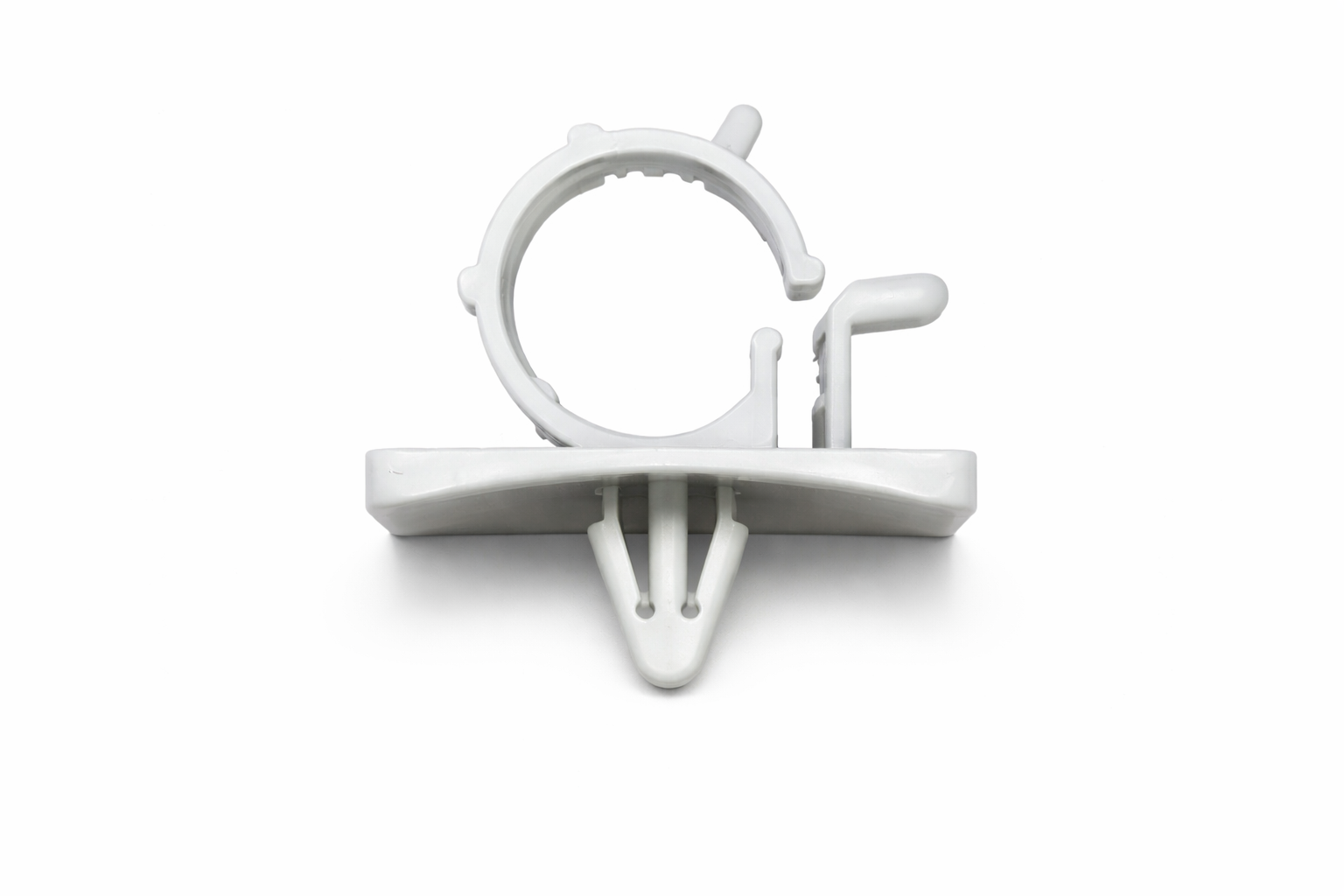

  • Push mount locking clips
  • .187 Dia Mtg Hole
  • Color: Grey
  • Packaging: 100/bag
  • Material: Nylon 66 UL94V-2
  • UL File No: E70062
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

D

Mounting Hole Diameter

Panel Thickness

Dim. - L

Dim. - W

Request Quote/Sample
N/A .275 (7.0) inches (mm) N/A .187 (4.8) inches (mm) N/A .031 - .093 (.8 - 2.4) inches (mm) N/A .985 (25.0) inches (mm) N/A .787 (20.0) inches (mm) Request Quote/Sample
N/A .315 (8.0) inches (mm) N/A .187 (4.8) inches (mm) N/A .031 - .093 (.8 - 2.4) inches (mm) N/A .985 (25.0) inches (mm) N/A .787 (20.0) inches (mm) Request Quote/Sample
N/A .393 (10.0) inches (mm) N/A .187 (4.8) inches (mm) N/A .031 - .093 (.8 - 2.4) inches (mm) N/A 1.18 (30.0) inches (mm) N/A .965 (24.5) inches (mm) Request Quote/Sample
N/A .551 (14.0) inches (mm) N/A .187 (4.8) inches (mm) N/A .031 - .093 (.8 - 2.4) inches (mm) N/A 1.18 (30.0) inches (mm) N/A .965 (24.5) inches (mm) Request Quote/Sample
N/A .709 (18.0) inches (mm) N/A .187 (4.8) inches (mm) N/A .031 - .093 (.8 - 2.4) inches (mm) N/A 1.18 (30.0) inches (mm) N/A .965 (24.5) inches (mm) Request Quote/Sample
