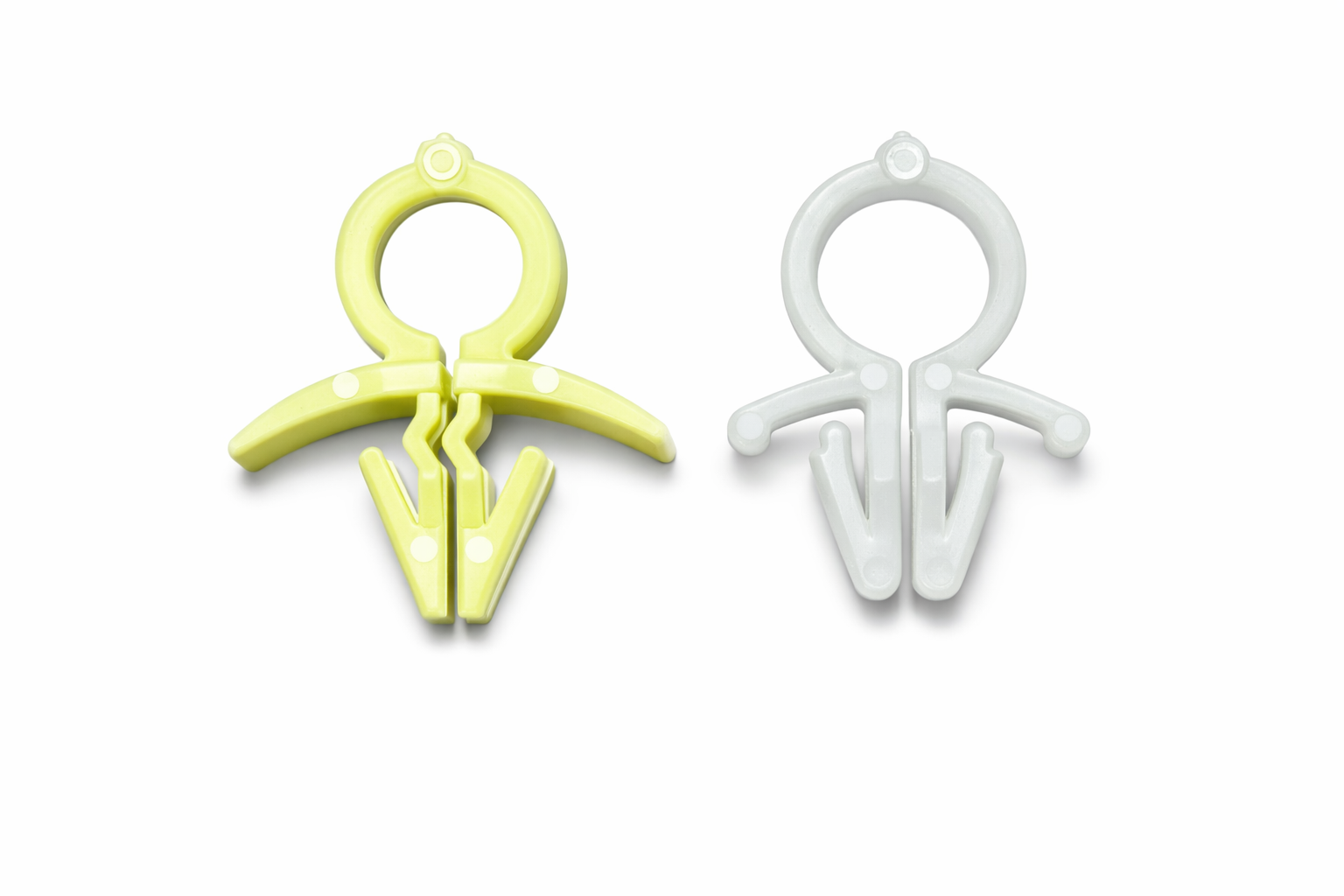

• 17 Series: Split Clip
  • 04 - 17 Series - Dimensions
  • Split routing clip
  • Color: Natural
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2
  • UL File No: E70062
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Mounting Hole Diameter

Panel Thickness

Dim. - D

Dim. - W

L Ref.

Request Quote/Sample
N/A .250 (6.4) inches (mm) N/A .062 - .093 (1.6 - 2.3) inches (mm) N/A .224 (5.7) inches (mm) N/A .786 (19.9) inches (mm) N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) N/A .031 - .062 (.8 - 1.6) inches (mm) N/A .295 (7.5) inches (mm) N/A .590 (14.9) inches (mm) N/A .454 (11.5) inches (mm) Request Quote/Sample
