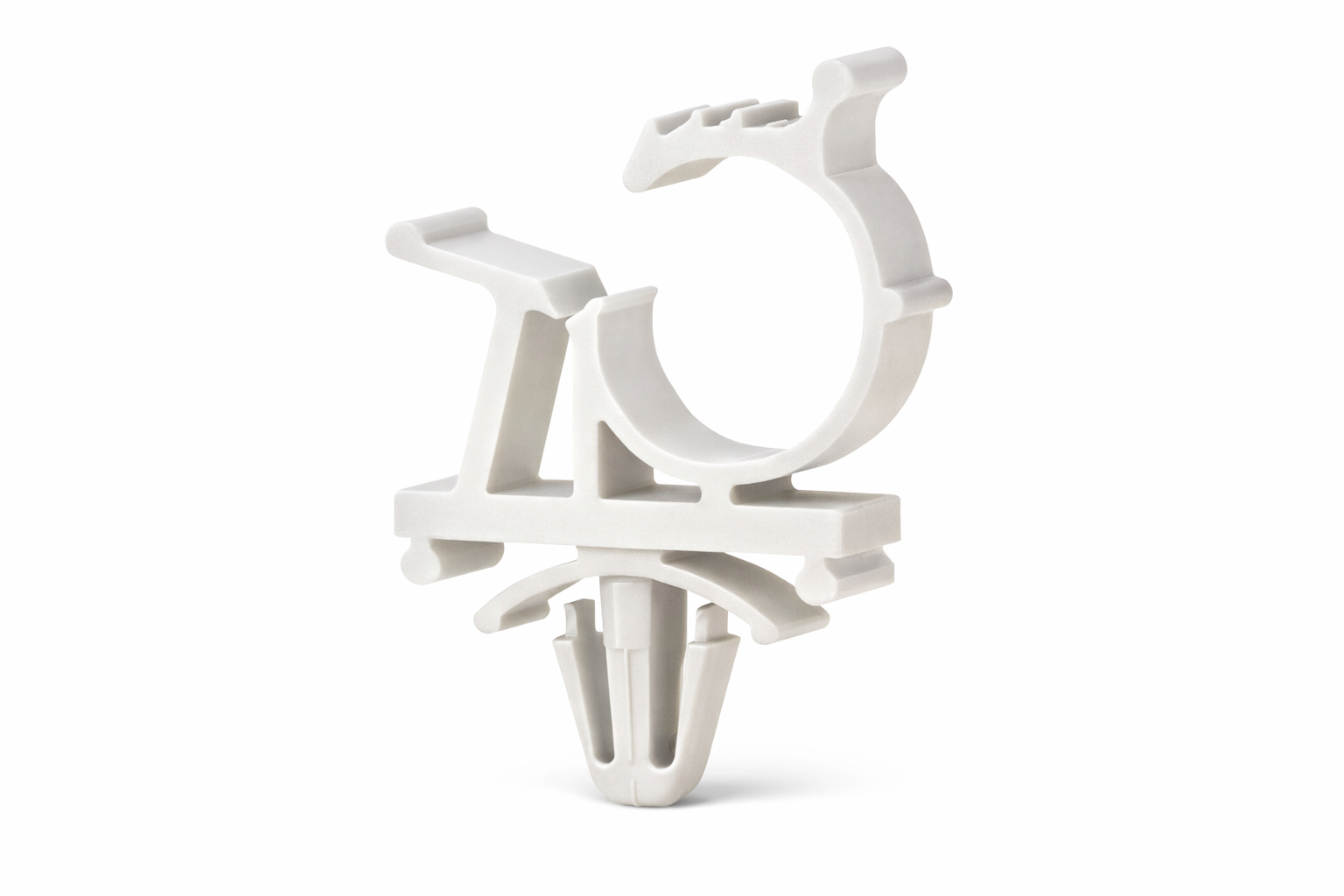

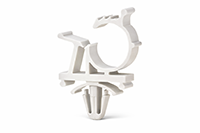

• 08 Series: Adjustable Push Mount Clip(.250 Mtg Hole)

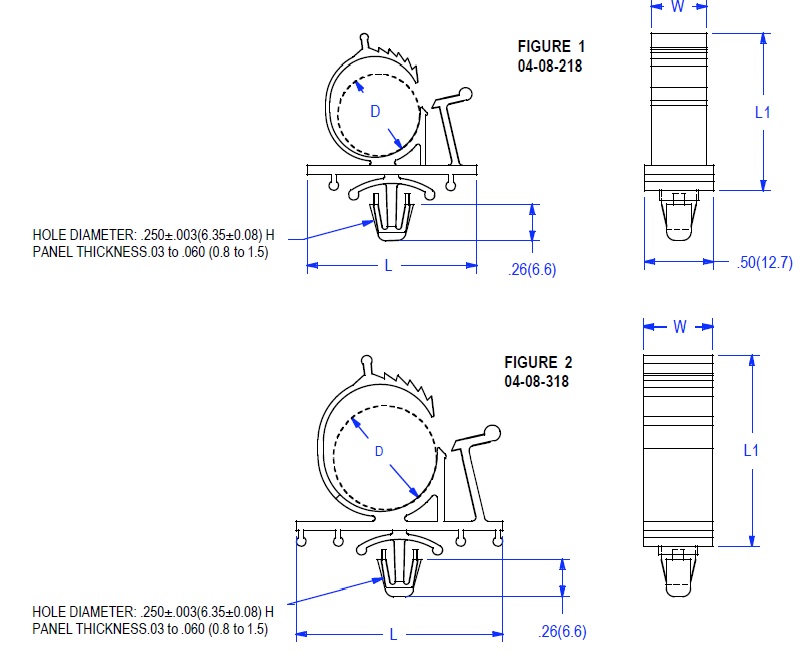

  • 04-08-218&318 Sketch 2013
  • Adjusts to accommodate a variety of bundle diameters
  • .250 Mtg Hole (.03 - .06 Panel Thickness)
  • Locks securely yet releasable to remove or change bundles routed
  • Packaging: 100/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No: E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Color

Bundle Dia Range(D) REF

L +/-.015

W +/- .015

L1 REF

Fig No.

Request Quote/Sample
N/A Natural N/A .47 - .56 (11.9-14.3) inches (mm) N/A 1.23 (31.24) inches (mm) N/A .40 (10.16) inches (mm) N/A 1.1 (28) inches (mm) N/A 1 Request Quote/Sample
N/A Natural N/A .58 - .75 (14.7-19.1) inches (mm) N/A 1.50 (38.1) inches (mm) N/A .50 (12.7) inches (mm) N/A 1.38 (34.5) inches (mm) N/A 2 Request Quote/Sample
