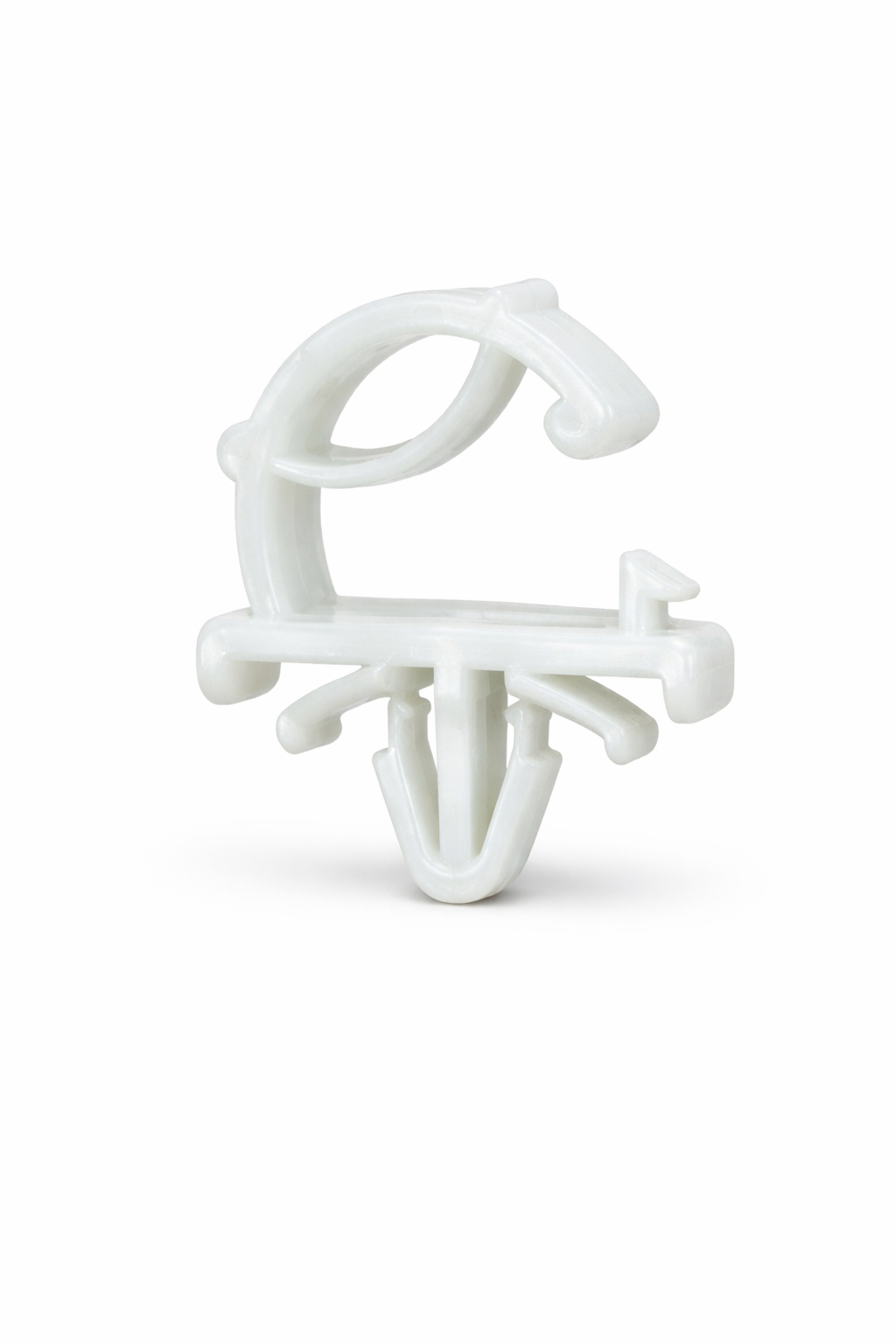

• 14 Series: Optical Fiber / Small Cable (arrowhead mount)

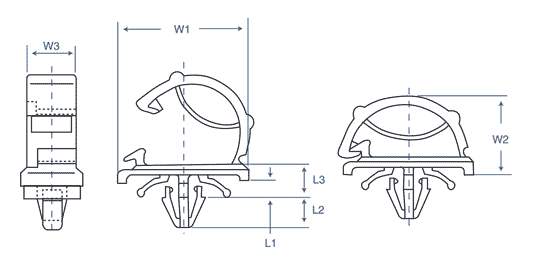

  • 04 - 14 Series - Dimensions
  • Optical fiber/small cable holding
  • Arrowhead mount
  • Color: Natural (others available)
  • Material: Nylon 66 UL94V-2
  • UL File No: E53664
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Packaging/bag

Holding Capacity Range Diameter

Mounting Hole Diameter

Panel Thickness

Dim. - W1

Dim. - W2

Dim. - W3

Dim. - L1

Dim. - L2

Dim. - L3

Request Quote/Sample
N/A 500 N/A AWG No. 20 x 2 (1.7mm x 2) inches (mm) N/A .150 (3.8) inches (mm) N/A .020 - .071 (.5 - 1.8) inches (mm) N/A .528 (13.4) inches (mm) N/A .228 (5.8) inches (mm) N/A .236 (6.0) inches (mm) N/A .083 (2.1) inches (mm) N/A .118 (3.0) inches (mm) N/A .201 (5.1) inches (mm) Request Quote/Sample
N/A 500 N/A SPT-2 (AWG No. 18) 3.5 - 6.8mm inches (mm) N/A .150 (3.8) inches (mm) N/A .020 - .071 (.5 - 1.8) inches (mm) N/A .638 (16.2) inches (mm) N/A .354 (9.0) inches (mm) N/A .236 (6.0) inches (mm) N/A .083 (2.1) inches (mm) N/A .118 (3.0) inches (mm) N/A .205 (5.2) inches (mm) Request Quote/Sample
N/A 200 N/A 5C-2V (8mm) inches (mm) N/A .189 (4.8) inches (mm) N/A .020 - .078 (.5 - 2.0) inches (mm) N/A .843 (21.4) inches (mm) N/A .504 (12.8) inches (mm) N/A .315 (8.0) inches (mm) N/A .094 (2.4) inches (mm) N/A .197 (5.0) inches (mm) N/A .209 (5.3) inches (mm) Request Quote/Sample
