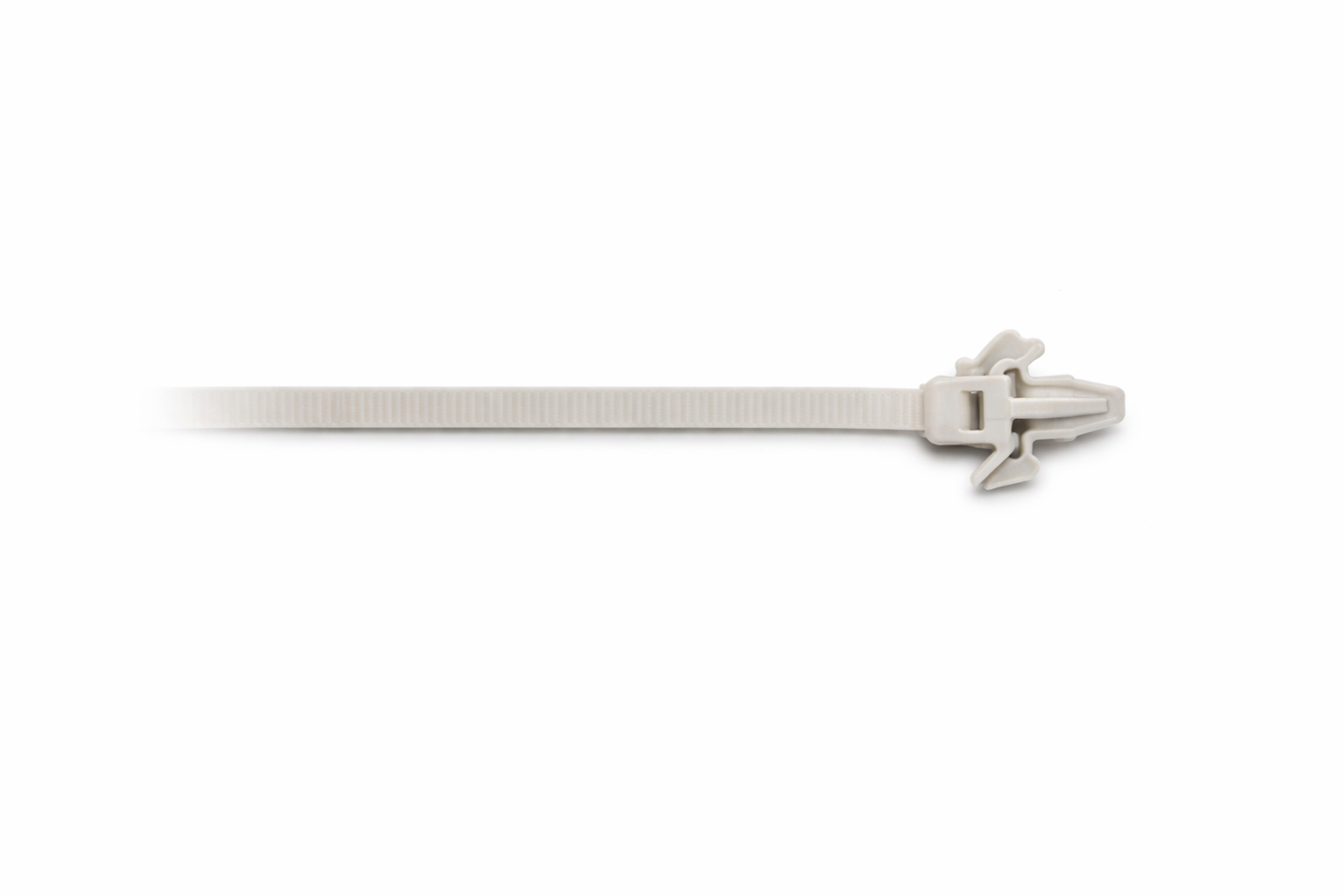

• 14 Series: Arrowhead Cable Ties
  • 02 - 14 Series - Dimensions
  • Pinch release arrowhead tie
  • Allows for quick and easy removal from board/chassis
  • Color: Natural or Black
  • Packaging: 1000/bag
  • Material: Nylon 66 UL 94V-2
  • UL File No: E70062
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Max. Bundle Dia.

Approx. Length - L

Tensile Strength

Mounting Hole Diameter

Panel Thickness

Chassis Thickness

Request Quote/Sample
N/A 1.00 (25.4) inches (mm) N/A 4.75 (120.7) inches (mm) N/A 30 lbs N/A .187 (4.8) inches (mm) N/A .079 - .094 (2.0 - 2.4) inches (mm) N/A .079 - .094 (2.0 - 2.4) inches (mm) Request Quote/Sample
N/A 1.00 (25.4) inches (mm) N/A 4.75 (120.7) inches (mm) N/A 30 lbs N/A .187 (4.8) inches (mm) N/A .079 - .094 (2.0 - 2.4) inches (mm) N/A .079 - .094 (2.0 - 2.4) inches (mm) Request Quote/Sample
