• 20 Series: Locking Clip

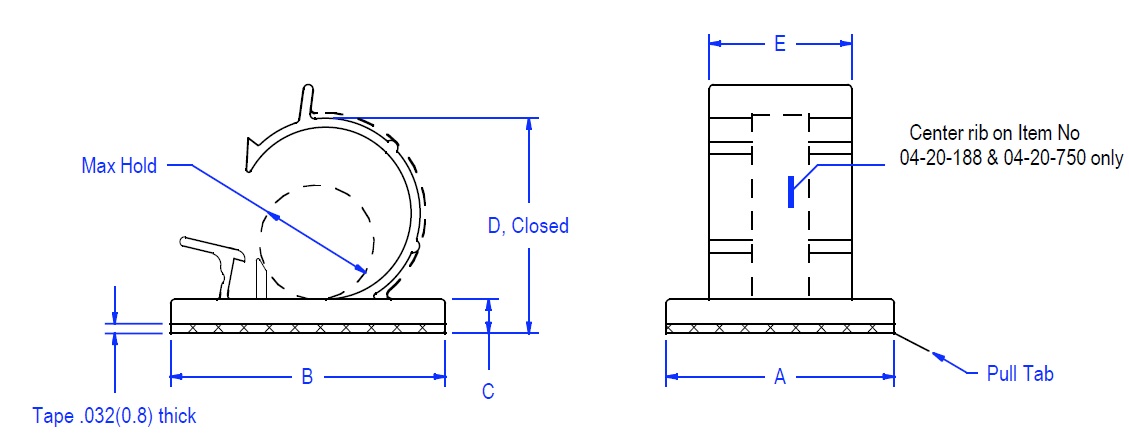

  • 04-20 Sketch
  • Adhesive Locking Clip
  • Color: Grey
  • Material: Nylon 66 UL94V-2
  • Acrylic Adhesive
  • UL File No: E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Pack Size

Max Hold Dia(REF)

A (+/-.020)

B (+/-.020)

C (+/-.010)

D (Closed) REF

E (+/-.010)

Request Quote/Sample
N/A 500 N/A .185 (4.7) inches (mm) N/A .74 (18.8) inches (mm) N/A .625 (15.9) inches (mm) N/A .11 (2.8) inches (mm) N/A .30 (10) inches (mm) N/A .382 (9.7) inches (mm) Request Quote/Sample
N/A 500 N/A .250 (6.4) inches (mm) N/A 1.0 (25.4) inches (mm) N/A .88 (22.4) inches (mm) N/A .15 (3.7) inches (mm) N/A .46 (11.7) inches (mm) N/A .63 (16) inches (mm) Request Quote/Sample
N/A 500 N/A .375 (9.5) inches (mm) N/A 1.0 (25.4) inches (mm) N/A 1.0 (25.4) inches (mm) N/A .15 (3.7) inches (mm) N/A .53 (13.4) inches (mm) N/A .63 (16) inches (mm) Request Quote/Sample
N/A 250 N/A .500 (12.7) inches (mm) N/A 1.0 (25.4) inches (mm) N/A 1.2 (30.7) inches (mm) N/A .15 (3.7) inches (mm) N/A .72 (18.3) inches (mm) N/A .63 (16) inches (mm) Request Quote/Sample
N/A 100 N/A .750 (19.1) inches (mm) N/A 1.15 (19.2) inches (mm) N/A 1.53 (38.8) inches (mm) N/A .157 (4) inches (mm) N/A 1.03 (26) inches (mm) N/A .665 (16.9) inches (mm) Request Quote/Sample
