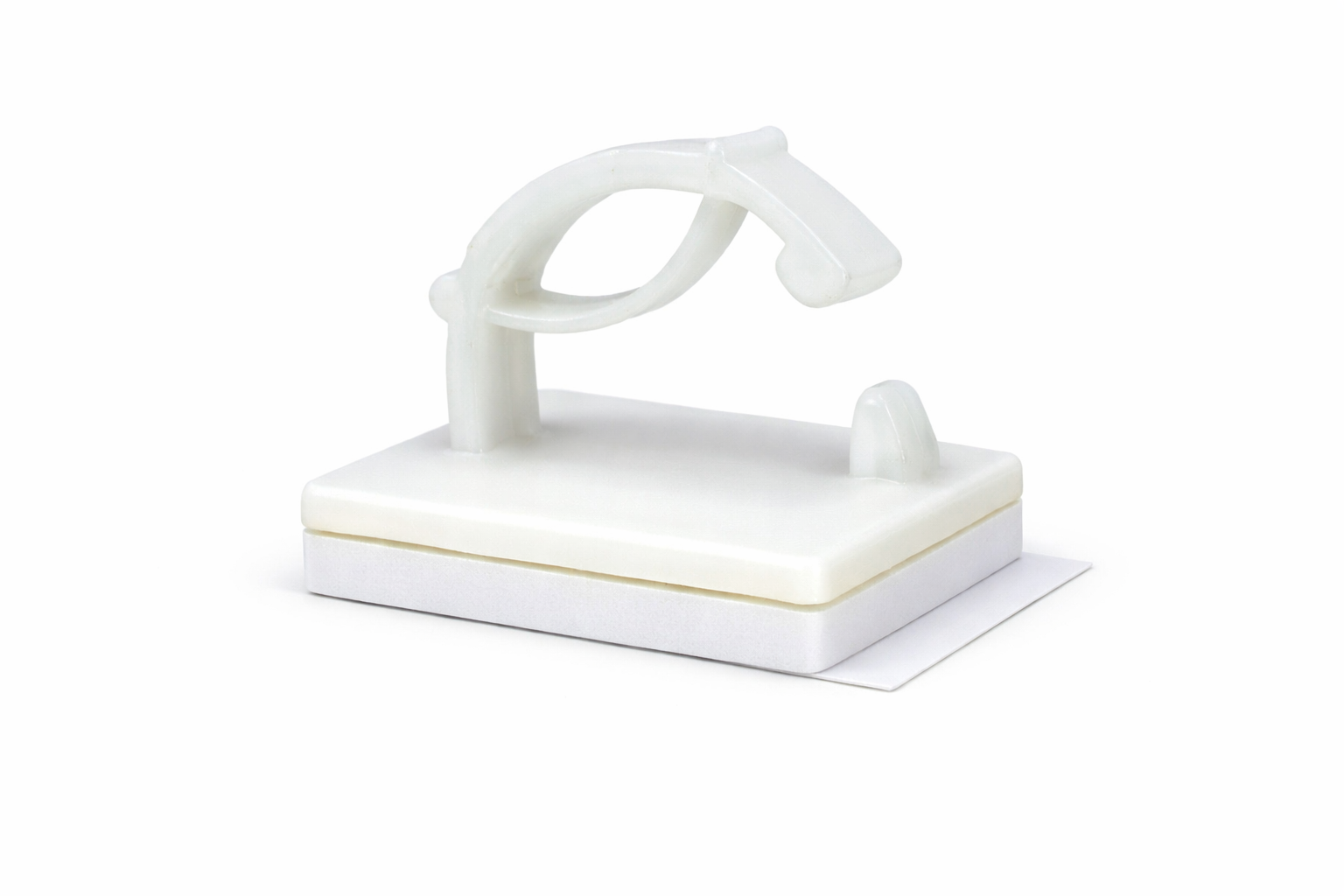

• 13 Series: Optical Fiber / Small Cable (adhesive mount)

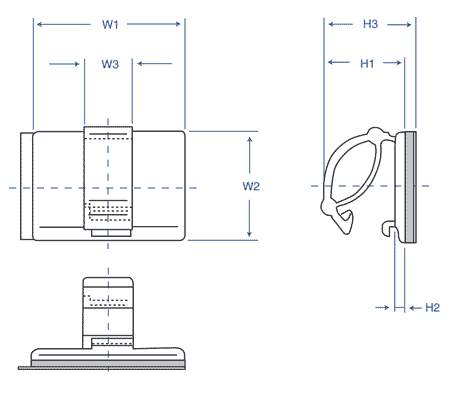

  • 04 - 13 Series - Dimensions
  • Optical fiber/small cable holding
  • Adhesive backed clip
  • Color: Natural (others available)
  • Material: Nylon 66 UL94V-2
  • UL File No: E53664
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Packaging/bag

Holding Capacity Range Diameter

Dim. - W1

Dim. - W2

Dim. - W3

Dim. - H1

Dim. - H2

Dim. - H3

Request Quote/Sample
N/A 500 N/A AWG No. 20 x 2 (1.7mm x 2) inches (mm) N/A .772 (19.6) inches (mm) N/A .394 (10.0) inches (mm) N/A .236 (6.0) inches (mm) N/A .291 (7.4) inches (mm) N/A .055 (1.4) inches (mm) N/A .335 (8.5) inches (mm) Request Quote/Sample
N/A 500 N/A SPT-2 (AWG No. 18) 3.5 - 6.8mm inches (mm) N/A .772 (19.6) inches (mm) N/A .559 (14.2) inches (mm) N/A .236 (6.0) inches (mm) N/A .420 (10.7) inches (mm) N/A .055 (1.4) inches (mm) N/A .465 (11.8) inches (mm) Request Quote/Sample
N/A 200 N/A 5C-2V (8mm) inches (mm) N/A .772 (19.6) inches (mm) N/A .850 (21.6) inches (mm) N/A .256 (6.5) inches (mm) N/A .677 (17.2) inches (mm) N/A .087 (2.2) inches (mm) N/A .721 (18.3) inches (mm) Request Quote/Sample
