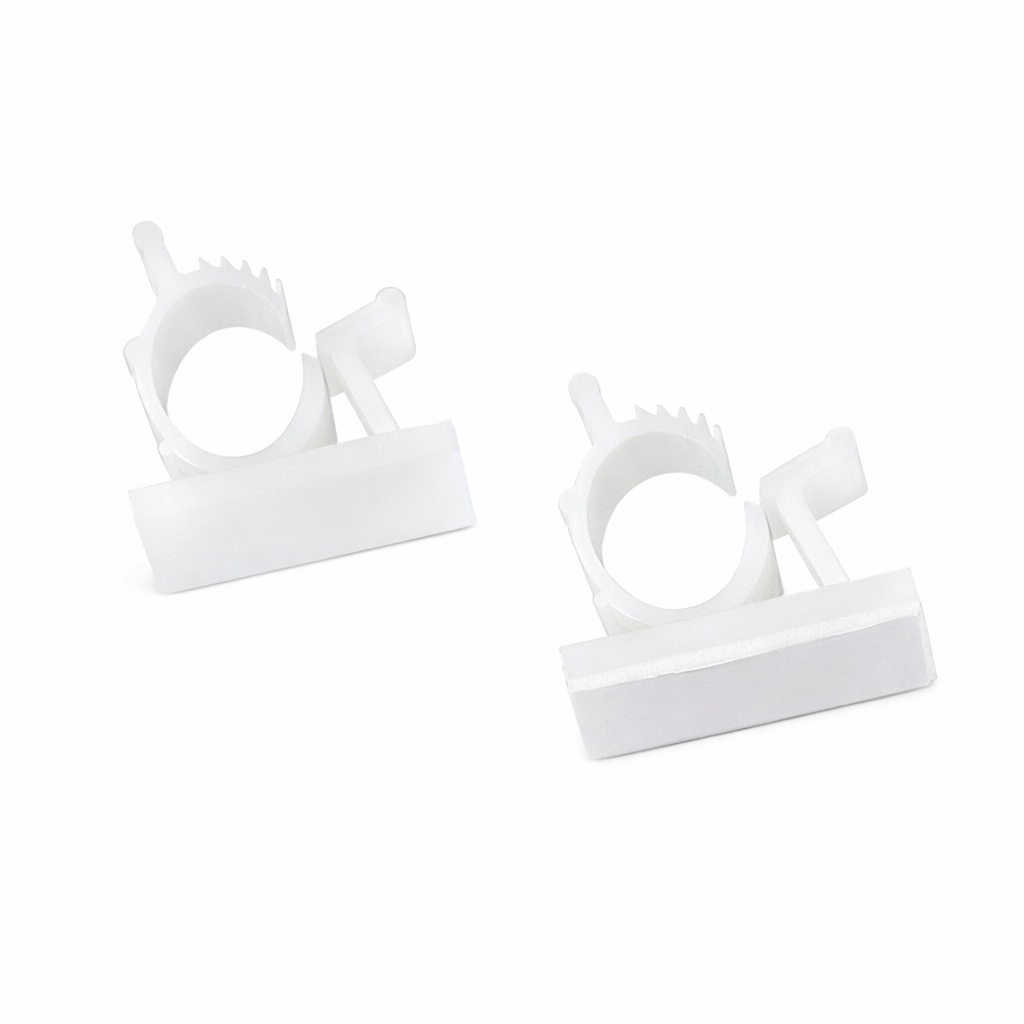

• 08 Series(Natural): Adjustable Adhesive Clip

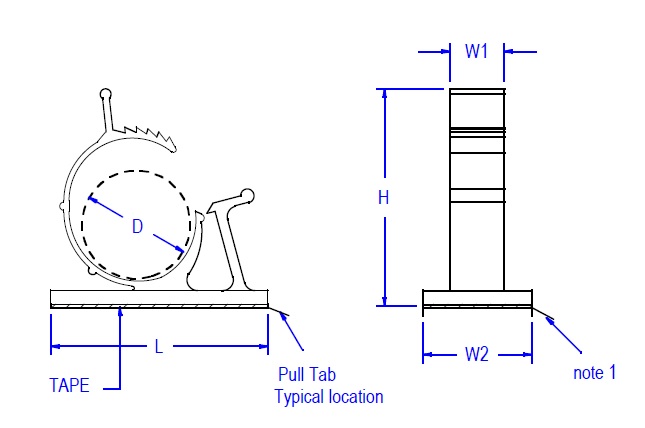

  • 04-08-Nat Sketch
  • Adjustable Ratchet Clamp(.22-.98 Bundle Ranges)
  • Natural Color
  • Adjusts to accommodate a variety of bundle diameters
  • Smooth outer edge reduces stress to operator during initial assembly
  • Locks securely yet releasable to remove or change bundles routed
  • Adhesive Backed
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Material Code

Color

Bundle Dia Range(D)

L +/-.015

W1 +/- .015

W2 +/- .015

(H) REF

Request Quote/Sample
N/A UL94V-2 N/A Natural N/A .22 - .26 (5.5-6.5) inches (mm) N/A .85 (21.6) inches (mm) N/A .39 (10) inches (mm) N/A .65 (16.5) inches (mm) N/A .71 (18) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A Natural N/A .311 - .406 (7.9 - 10.3) inches (mm) N/A 1.00 (25.4) inches (mm) N/A .402 (10.2) inches (mm) N/A .752 (19.1) inches (mm) N/A .874 (22.2) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A Natural N/A .469 - .563 (11.9 - 14.3) inches (mm) N/A 1.25 (31.8) inches (mm) N/A .402 (10.2) inches (mm) N/A .752 (19.1) inches (mm) N/A 1.09 (27.8) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A Natural N/A .579 - .752 (14.7 - 19.1) inches (mm) N/A 1.50 (38.1) inches (mm) N/A .500 (12.7) inches (mm) N/A .752 (19.1) inches (mm) N/A 1.25 (31.8) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A Natural N/A .87-.98 (22.2-25.2) inches (mm) N/A 2.00 (50.5) inches (mm) N/A .50 (12.7) inches (mm) N/A 1.00 (25.4) inches (mm) N/A 1.75 (44.5) inches (mm) Request Quote/Sample
