• 64 Series: .100 Board Hole x Adhesive Base

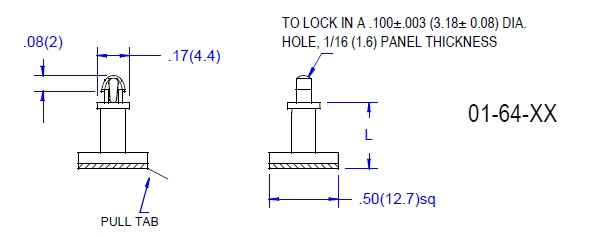

  • 01-64 Sketch

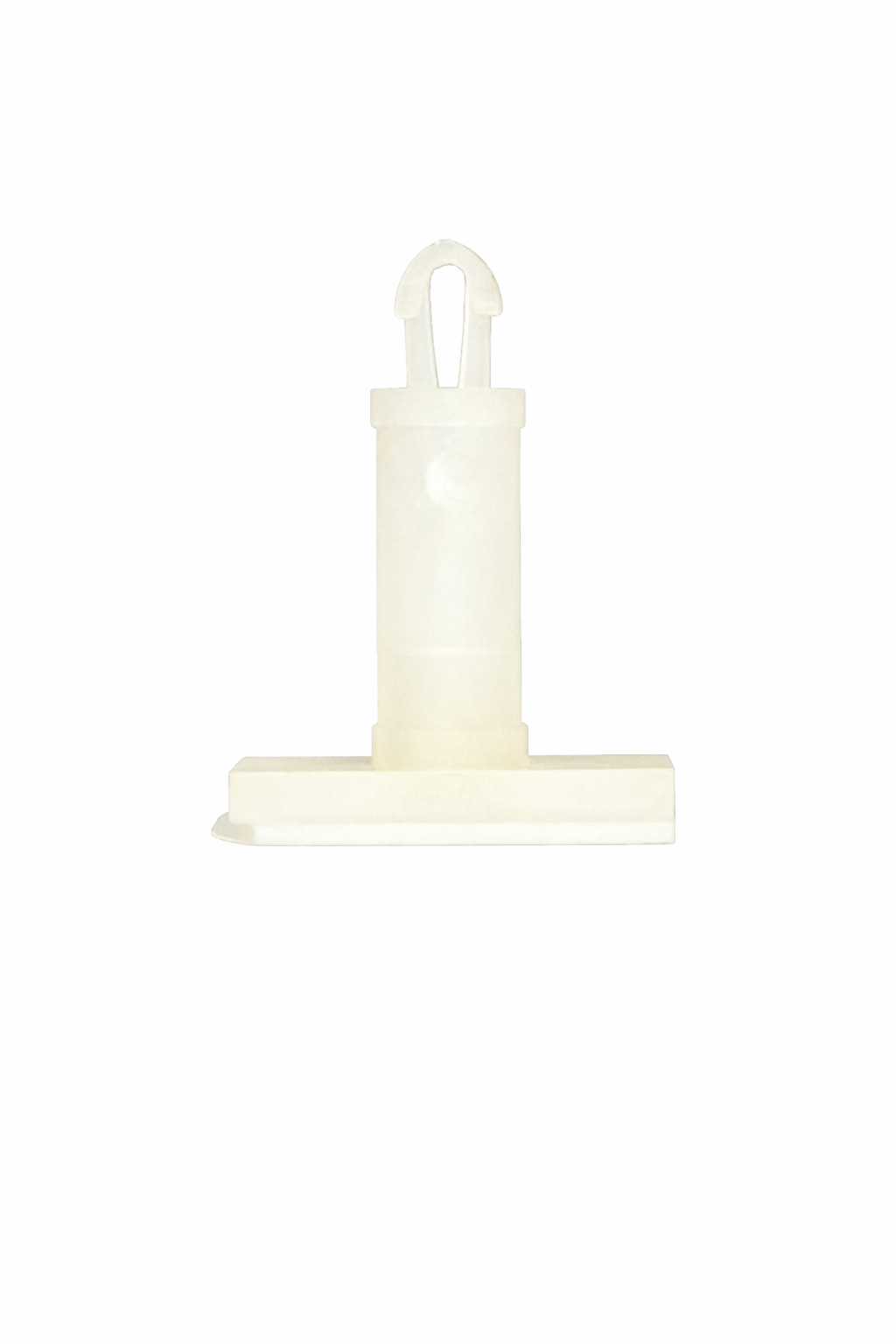

  • Circuit board support on adhesive base
  • .100 Mtg hole x .062 Panel Thickness
  • Color: Natural
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2
  • UL File No: E41938
  • ASTM: D 4066, PA111
  • RoHs Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Request Quote/Sample
N/A .187 (4.8) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) Request Quote/Sample
N/A .375 (9.6) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A .563 (14.3) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) Request Quote/Sample
