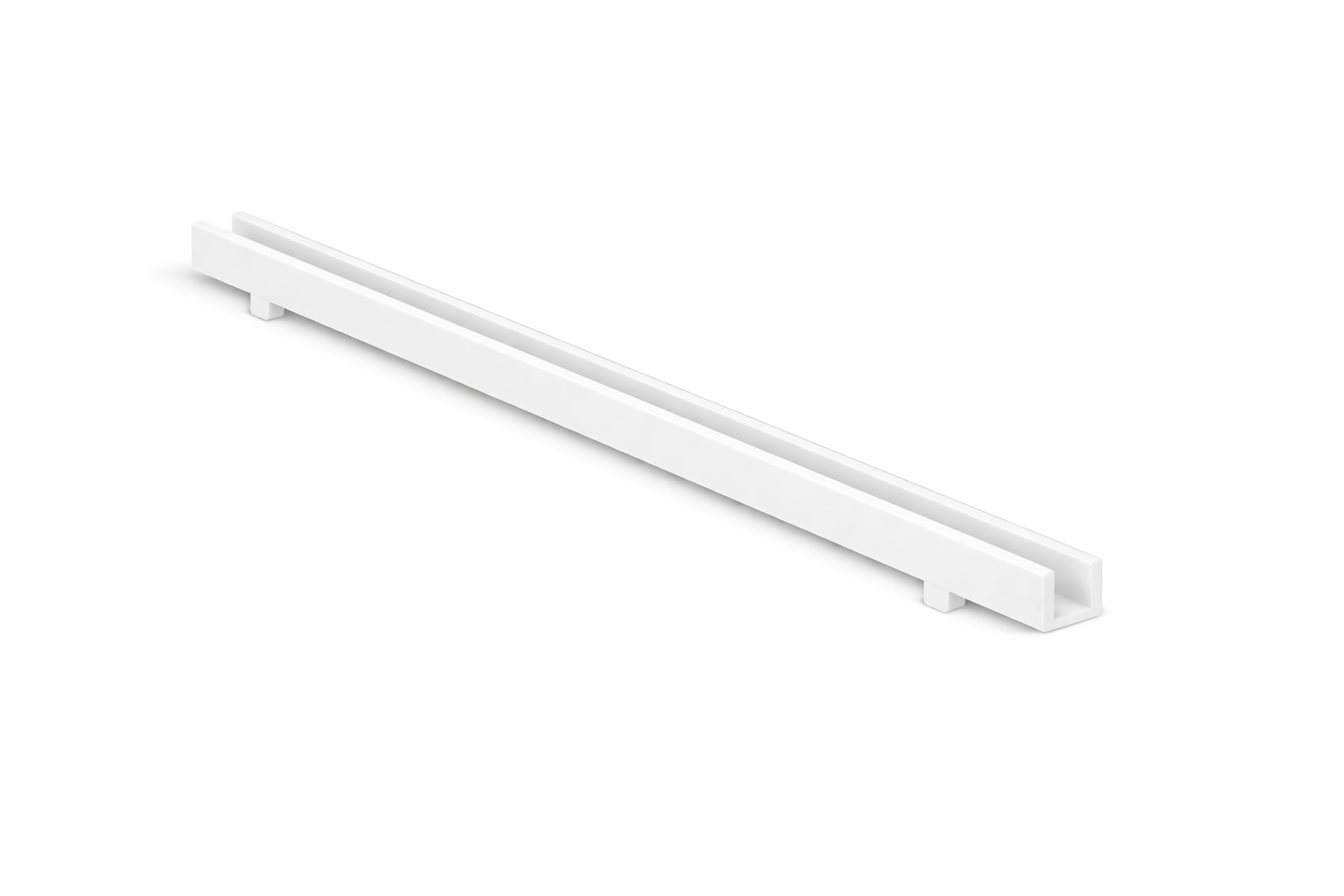

07 Series: Narrow Channel Guide
(14) Card Guides
- Installs easily by hand
- Narrow width less than .250 (6.4mm)
- Ideal for high density applications
- Material Code: UL94V-2
- Color: Natural
- Packaging: 500/bag
- Material: Nylon 66
- RoHS Compliant

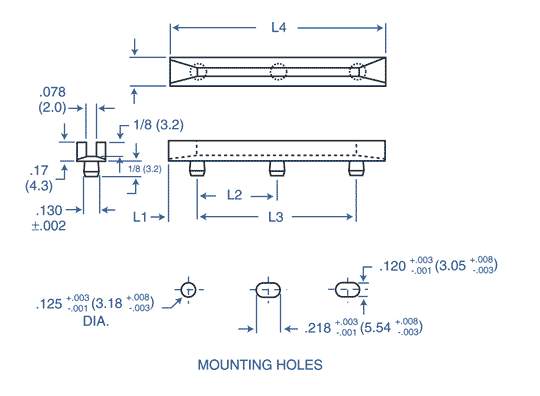

Item # |
Dim. - L1 |
Dim. - L3 |
Dim. - L4 |
Dim. - W |
Chassis Thickness |
Request Quote/Sample |
|---|---|---|---|---|---|---|
| 14-07-2250 14-07-2250/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 2.0 ± .025 (50.8 ± .635) inches (mm) | Dim. - L4 N/A 2.5 ± .030 (63.5 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2300 14-07-2300/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 2.5 ± .025 (63.5 ± .635) inches (mm) | Dim. - L4 N/A 3.0 ± .030 (76.2 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2350 14-07-2350/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 3.0 ± .025 (76.2 ± .635) inches (mm) | Dim. - L4 N/A 3.5 ± .030 (88.9 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2400 14-07-2400/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 3.5 ± .025 (88.9 ± .635) inches (mm) | Dim. - L4 N/A 4.0 ± .030 (101.6 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2450 14-07-2450/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 4.0 ± .025 (101.6 ± .635) inches (mm) | Dim. - L4 N/A 4.5 ± .030 (114.3 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2500 14-07-2500/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 4.5 ± .025 (114.3 ± .635) inches (mm) | Dim. - L4 N/A 5.0 ± .030 (127.0 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2550 14-07-2550/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 5.0 ± .025 (127.0 ± .635) inches (mm) | Dim. - L4 N/A 5.5 ± .030 (139.7 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2600 14-07-2600/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 5.5 ± .025 (139.7 ± .635) inches (mm) | Dim. - L4 N/A 6.0 ± .030 (152.4 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2650 14-07-2650/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 6.0 ± .025 (152.4 ± .635) inches (mm) | Dim. - L4 N/A 6.5 ± .030 (165.1 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2700 14-07-2700/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 6.5 ± .025 (165.1 ± .635) inches (mm) | Dim. - L4 N/A 7.0 ± .030 (177.8 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2750 14-07-2750/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 7.0 ± .025 (177.8 ± .635) inches (mm) | Dim. - L4 N/A 7.5 ± .030 (190.5 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2800 14-07-2800/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 7.5 ± .025 (190.5 ± .635) inches (mm) | Dim. - L4 N/A 8.0 ± .030 (203.2 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-2850 14-07-2850/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 8.0 ± .025 (203.2 ± .635) inches (mm) | Dim. - L4 N/A 8.5 ± .030 (215.9 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-3700 14-07-3700/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 6.5 ± .025 (165.1 ± .635) inches (mm) | Dim. - L4 N/A 7.0 ± .030 (177.8 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-3750 14-07-3750/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 7.0 ± .025 (177.8 ± .635) inches (mm) | Dim. - L4 N/A 7.5 ± .030 (190.5 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-3800 14-07-3800/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 7.5 ± .025 (190.5 ± .635) inches (mm) | Dim. - L4 N/A 8.0 ± .030 (203.2 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
| 14-07-3850 14-07-3850/ImgCustom/1002/placeholder_notavailable.gif | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L3 N/A 8.0 ± .025 (203.2 ± .635) inches (mm) | Dim. - L4 N/A 8.5 ± .030 (215.9 ± .76) inches (mm) | Dim. - W N/A .245 (6.2) inches (mm) | Chassis Thickness N/A .048 - .085 (1.22 - 2.12) inches (mm) | Request Quote/Sample |
