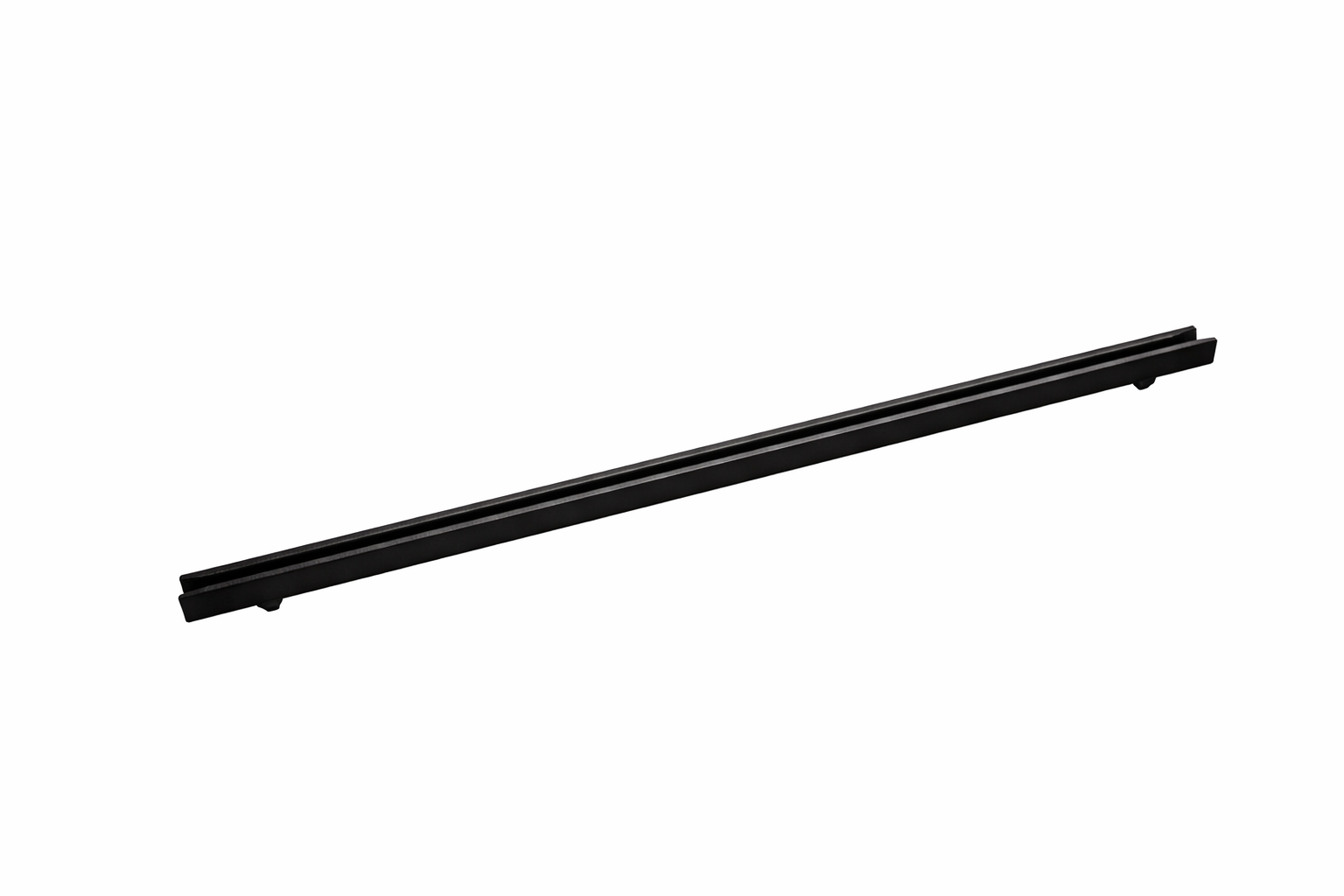

• 06 Series: Deep Channel Guide

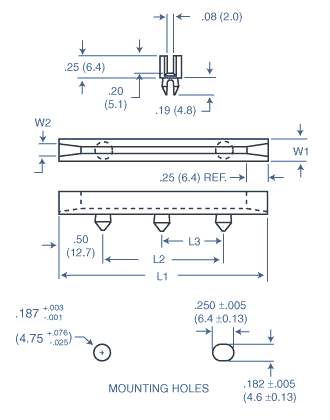

  • 14 - 06 Series - Dimensions
  • Installs easily by hand
  • Deep channel slot [.200 inch (5.1mm)]
  • Ideal for wide board and high vibration/shock applications
  • For longer lengths, card guides may be used in a variety of combinations to obtain desired length
  • Material Code: UL94V-0
  • Color: Black
  • Packaging: 500/bag
  • Material: Nylon 66 10% Glass Filled
  • RoHS Compliant
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L1

Dim. - L2

Dim. - W1

Dim. - W2

Chassis Thickness

Request Quote/Sample
N/A 2.5 ± .062 (63.5) inches (mm) N/A 1.5 ± .032 (38.1) inches (mm) N/A .250 (6.4) inches (mm) N/A .130 (3.3) inches (mm) N/A .047 - .090 (1.2 - 2.3) inches (mm) Request Quote/Sample
N/A 4.5 ± .062 (114.3) inches (mm) N/A 3.5 ± .032 (88.9) inches (mm) N/A .250 (6.4) inches (mm) N/A .130 (3.3) inches (mm) N/A .047 - .090 (1.2 - 2.3) inches (mm) Request Quote/Sample
N/A 6.0 ± .062 (152.4) inches (mm) N/A 5.0 ± .032 (127.0) inches (mm) N/A .250 (6.4) inches (mm) N/A .130 (3.3) inches (mm) N/A .047 - .090 (1.2 - 2.3) inches (mm) Request Quote/Sample
N/A 8.0 ± .062 (203.2) inches (mm) N/A 7.0 ± .032 (177.8) inches (mm) N/A .250 (6.4) inches (mm) N/A .130 (3.3) inches (mm) N/A .047 - .090 (1.2 - 2.3) inches (mm) Request Quote/Sample
N/A 8.0 ± .062 (203.2) inches (mm) N/A 7.0 ± .032 (177.8) inches (mm) N/A .250 (6.4) inches (mm) N/A .130 (3.3) inches (mm) N/A .047 - .090 (1.2 - 2.3) inches (mm) Request Quote/Sample
