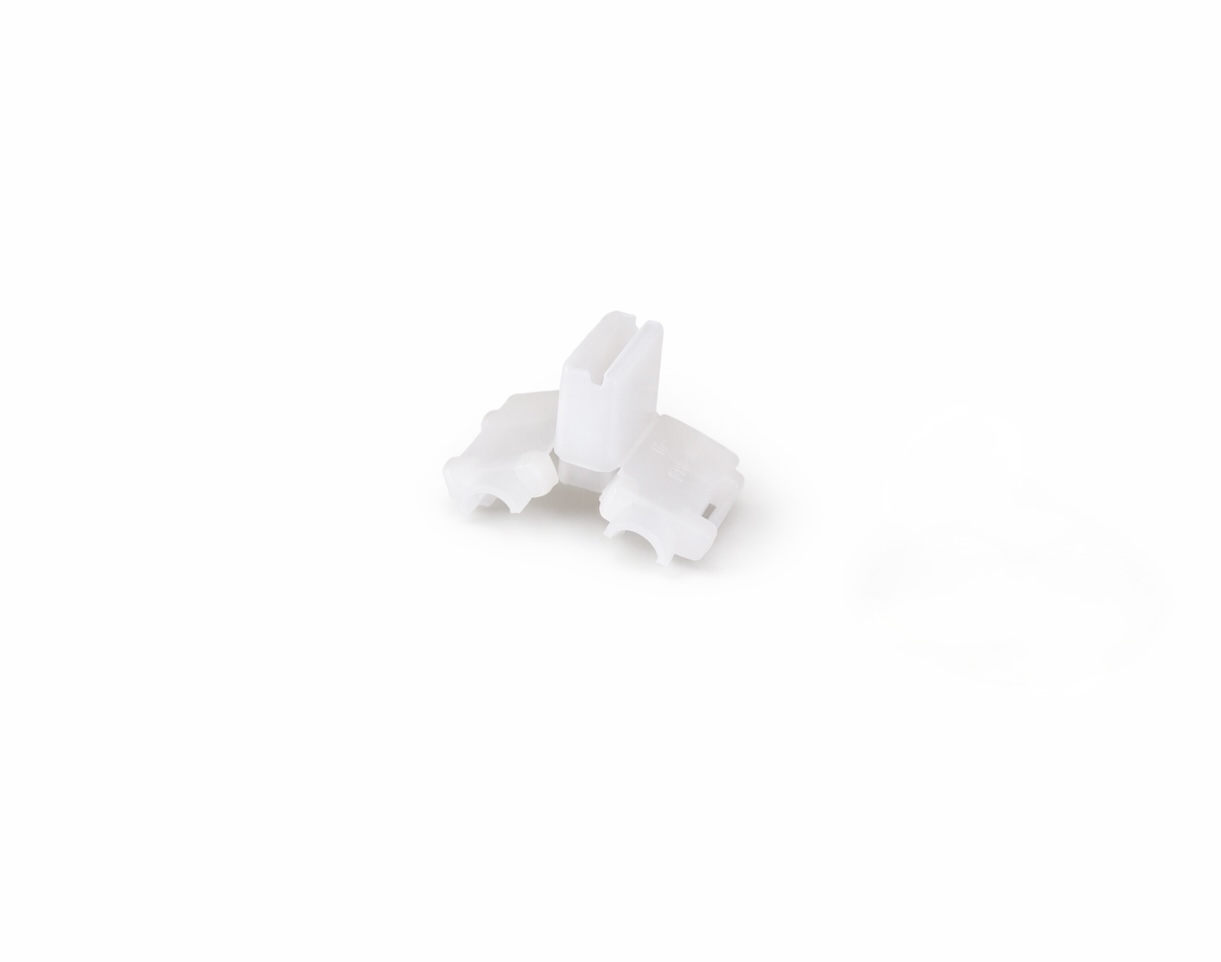

91 Series: Insulator, Flag Terminal
(10) Component Insulators & End Caps
- Insulating sleeve for flag type receptacles
- Installs easily by hand
- For pre-assembled wire and receptacle
- For 187, 205 and 250 terminal type series
- CSA # Product: LR83372
- Color: Natural
- Packaging: 500/bag
- Material: Nylon 6

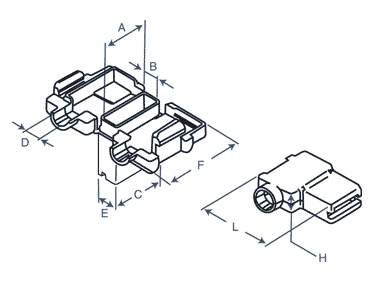

Item # |
Material Code |
Wire Diameter |
Dim. - D |
Dim. - A |
Dim. - B |
Dim. - C |
Dim. - E |
Dim. - F |
Dim. - H |
Dim. - L |
Request Quote/Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-91-187 10-91-187/Asset/10-91.jpg | Material Code N/A UL94V-2 | Wire Diameter N/A .134 (3.4) inches (mm) | Dim. - D N/A .134 (3.4) inches (mm) | Dim. - A N/A .252 ± .008 (6.4 ± .2) inches (mm) | Dim. - B N/A .118 ± .008 (3.0 ± .2) inches (mm) | Dim. - C N/A .311 ± .008 (7.9 ± .2) inches (mm) | Dim. - E N/A .177 ± .008 (4.5 ± .2) inches (mm) | Dim. - F N/A .531 ± .008 (13.5 ± .2) inches (mm) | Dim. - H N/A .213 ± .008 (5.4 ± .2) inches (mm) | Dim. - L N/A .575 ± .020 (14.6 ± .5) inches (mm) | Request Quote/Sample |
| 10-91-188 10-91-188/Asset/10-91.jpg | Material Code N/A UL94V-2 | Wire Diameter N/A .142 (3.6) inches (mm) | Dim. - D N/A .142 (3.6) inches (mm) | Dim. - A N/A .252 ± .008 (6.4 ± .2) inches (mm) | Dim. - B N/A .118 ± .008 (3.0 ± .2) inches (mm) | Dim. - C N/A .315 ± .008 (8.0 ± .2) inches (mm) | Dim. - E N/A .181 ± .008 (4.6 ± .2) inches (mm) | Dim. - F N/A .531 ± .008 (13.5 ± .2) inches (mm) | Dim. - H N/A .205 ± .008 (5.2 ± .2) inches (mm) | Dim. - L N/A .642 ± .020 (16.3 ± .5) inches (mm) | Request Quote/Sample |
| 10-91-205 10-91-205/Asset/10-91.jpg | Material Code N/A UL94V-2 | Wire Diameter N/A .158 (4.0) inches (mm) | Dim. - D N/A .158 (4.0) inches (mm) | Dim. - A N/A .272 ± .008 (6.9 ± .2) inches (mm) | Dim. - B N/A .122 ± .008 (3.1 ± .2) inches (mm) | Dim. - C N/A .343 ± .008 (8.7 ± .2) inches (mm) | Dim. - E N/A .193 ± .008 (4.9 ± .2) inches (mm) | Dim. - F N/A .579 ± .008 (14.7 ± .2) inches (mm) | Dim. - H N/A .228 ± .008 (5.8 ± .2) inches (mm) | Dim. - L N/A .661 ± .020 (16.8 ± .5) inches (mm) | Request Quote/Sample |
| 10-91-250 10-91-250/Asset/10-91.jpg | Material Code N/A UL94V-2 | Wire Diameter N/A .154 (3.9) inches (mm) | Dim. - D N/A .154 (3.9) inches (mm) | Dim. - A N/A .346 ± .008 (8.8 ± .2) inches (mm) | Dim. - B N/A .154 ± .008 (3.9 ± .2) inches (mm) | Dim. - C N/A .406 ± .008 (10.3 ± .2) inches (mm) | Dim. - E N/A .201 ± .008 (5.1 ± .2) inches (mm) | Dim. - F N/A .630 ± .008 (16.0 ± .2) inches (mm) | Dim. - H N/A .236 ± .008 (6.0 ± .2) inches (mm) | Dim. - L N/A .709 ± .020 (18.0 ± .5) inches (mm) | Request Quote/Sample |
| 10-91-187X 10-91-187X/Asset/10-91.jpg | Material Code N/A UL94V-0 | Wire Diameter N/A .134 (3.4) inches (mm) | Dim. - D N/A .134 (3.4) inches (mm) | Dim. - A N/A .252 ± .008 (6.4 ± .2) inches (mm) | Dim. - B N/A .118 ± .008 (3.0 ± .2) inches (mm) | Dim. - C N/A .311 ± .008 (7.9 ± .2) inches (mm) | Dim. - E N/A .177 ± .008 (4.5 ± .2) inches (mm) | Dim. - F N/A .531 ± .008 (13.5 ± .2) inches (mm) | Dim. - H N/A .213 ± .008 (5.4 ± .2) inches (mm) | Dim. - L N/A .575 ± .020 (14.6 ± .5) inches (mm) | Request Quote/Sample |
| 10-91-188X 10-91-188X/Asset/10-91.jpg | Material Code N/A UL94V-0 | Wire Diameter N/A .142 (3.6) inches (mm) | Dim. - D N/A .142 (3.6) inches (mm) | Dim. - A N/A .252 ± .008 (6.4 ± .2) inches (mm) | Dim. - B N/A .118 ± .008 (3.0 ± .2) inches (mm) | Dim. - C N/A .315 ± .008 (8.0 ± .2) inches (mm) | Dim. - E N/A .181 ± .008 (4.6 ± .2) inches (mm) | Dim. - F N/A .531 ± .008 (13.5 ± .2) inches (mm) | Dim. - H N/A .205 ± .008 (5.2 ± .2) inches (mm) | Dim. - L N/A .642 ± .020 (16.3 ± .5) inches (mm) | Request Quote/Sample |
| 10-91-205X 10-91-205X/Asset/10-91.jpg | Material Code N/A UL94V-0 | Wire Diameter N/A .158 (4.0) inches (mm) | Dim. - D N/A .158 (4.0) inches (mm) | Dim. - A N/A .272 ± .008 (6.9 ± .2) inches (mm) | Dim. - B N/A .122 ± .008 (3.1 ± .2) inches (mm) | Dim. - C N/A .343 ± .008 (8.7 ± .2) inches (mm) | Dim. - E N/A .193 ± .008 (4.9 ± .2) inches (mm) | Dim. - F N/A .579 ± .008 (14.7 ± .2) inches (mm) | Dim. - H N/A .228 ± .008 (5.8 ± .2) inches (mm) | Dim. - L N/A .661 ± .020 (16.8 ± .5) inches (mm) | Request Quote/Sample |
| 10-91-250X 10-91-250X/Asset/10-91.jpg | Material Code N/A UL94V-0 | Wire Diameter N/A .154 (3.9) inches (mm) | Dim. - D N/A .154 (3.9) inches (mm) | Dim. - A N/A .346 ± .008 (8.8 ± .2) inches (mm) | Dim. - B N/A .154 ± .008 (3.9 ± .2) inches (mm) | Dim. - C N/A .406 ± .008 (10.3 ± .2) inches (mm) | Dim. - E N/A .201 ± .008 (5.1 ± .2) inches (mm) | Dim. - F N/A .630 ± .008 (16.0 ± .2) inches (mm) | Dim. - H N/A .236 ± .008 (6.0 ± .2) inches (mm) | Dim. - L N/A .709 ± .020 (18.0 ± .5) inches (mm) | Request Quote/Sample |
