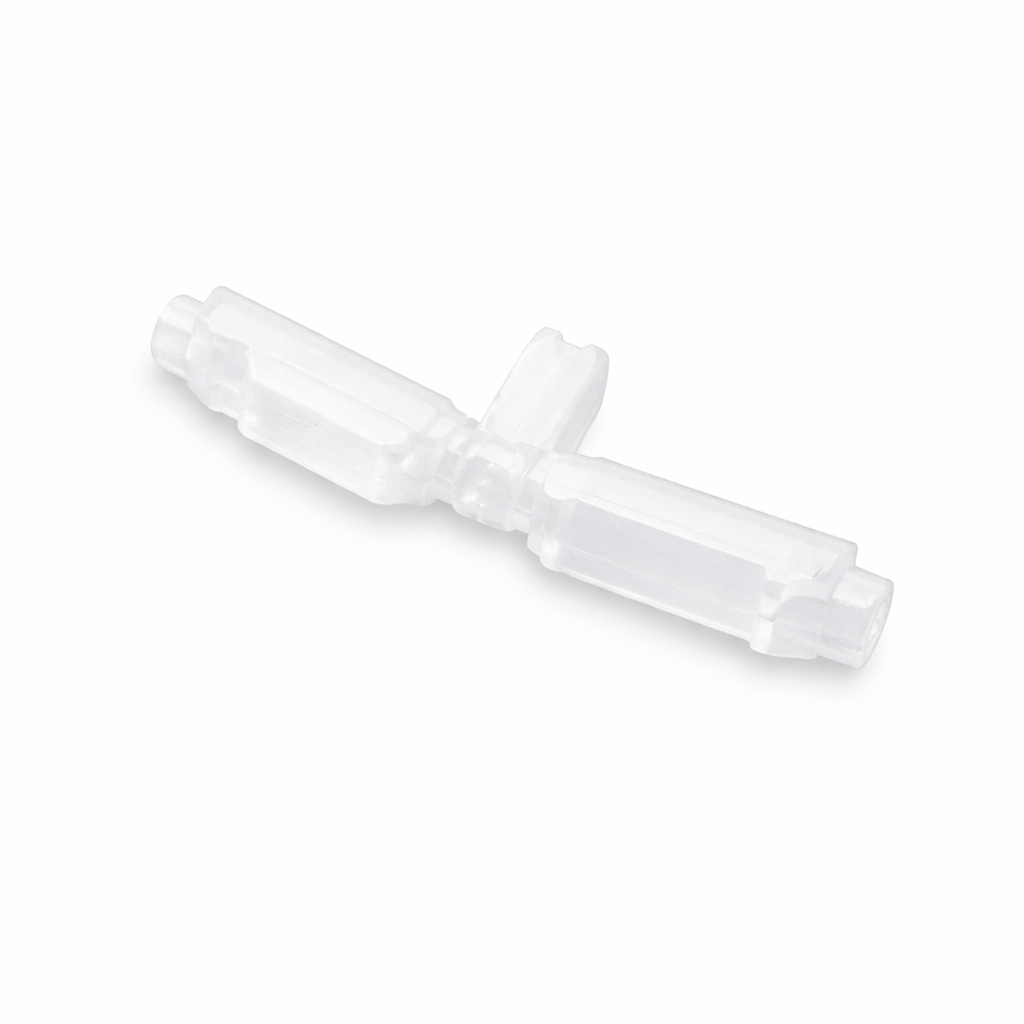

90 Series: Insulator, Straight Terminal
(10) Component Insulators & End Caps
- Insulating sleeve for straight type receptacles
- Installs easily by hand
- For pre-assembled wire and receptacle
- For 110, 187, 205 and 250 terminal type series
- CSA # Product: LR83372
- Color: Natural
- Packaging: 500/bag
- Material: Nylon 6
Item # |
Material Code |
Wire Diameter |

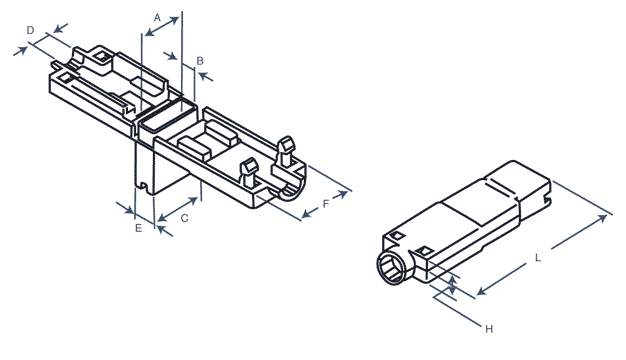

Dim. - D |
Dim. - A |
Dim. - B |
Dim. - C |
Dim. - E |
Dim. - F |
Dim. - H |
Dim. - L |
Request Quote/Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-90-110 10-90-110/Asset/10-90.png | Material Code N/A UL94V-2 | Wire Diameter N/A .118 (3.0) inches (mm) | Dim. - D N/A .118 (3.0) inches (mm) | Dim. - A N/A .161 ± .008 (4.1 ± .2) inches (mm) | Dim. - B N/A .091 ± .008 (2.3 ± .2) inches (mm) | Dim. - C N/A .236 ± .008 (6.0 ± .2) inches (mm) | Dim. - E N/A .154 ± .008 (3.9 ± .2) inches (mm) | Dim. - F N/A .315 ± .008 (8.0 ± .2) inches (mm) | Dim. - H N/A .181 ± .008 (4.6 ± .2) inches (mm) | Dim. - L N/A .878 ± .020 (22.3 ± .5) inches (mm) | Request Quote/Sample |
| 10-90-111 10-90-111/Asset/10-90.png | Material Code N/A UL94V-2 | Wire Diameter N/A .142 (3.6) inches (mm) | Dim. - D N/A .142 (3.6) inches (mm) | Dim. - A N/A .161 ± .008 (4.1 ± .2) inches (mm) | Dim. - B N/A .083 ± .008 (2.1 ± .2) inches (mm) | Dim. - C N/A .240 ± .008 (6.1 ± .2) inches (mm) | Dim. - E N/A .161 ± .008 (4.1 ± .2) inches (mm) | Dim. - F N/A .343 ± .008 (8.7 ± .2) inches (mm) | Dim. - H N/A .205 ± .008 (5.2 ± .2) inches (mm) | Dim. - L N/A .898 ± .020 (22.8 ± .5) inches (mm) | Request Quote/Sample |
| 10-90-187 10-90-187/Asset/10-90.png | Material Code N/A UL94V-2 | Wire Diameter N/A .142 (3.6) inches (mm) | Dim. - D N/A .142 (3.6) inches (mm) | Dim. - A N/A .240 ± .008 (6.1 ± .2) inches (mm) | Dim. - B N/A .102 ± .008 (2.6 ± .2) inches (mm) | Dim. - C N/A .295 ± .008 (7.5 ± .2) inches (mm) | Dim. - E N/A .154 ± .008 (3.9 ± .2) inches (mm) | Dim. - F N/A .346 ± .008 (8.8 ± .2) inches (mm) | Dim. - H N/A .205 ± .008 (5.2 ± .2) inches (mm) | Dim. - L N/A .862 ± .020 (21.9 ± .5) inches (mm) | Request Quote/Sample |
| 10-90-205 10-90-205/Asset/10-90.png | Material Code N/A UL94V-2 | Wire Diameter N/A .142 (3.6) inches (mm) | Dim. - D N/A .142 (3.6) inches (mm) | Dim. - A N/A .260 ± .008 (6.6 ± .2) inches (mm) | Dim. - B N/A .118 ± .008 (3.0 ± .2) inches (mm) | Dim. - C N/A .331 ± .008 (8.4 ± .2) inches (mm) | Dim. - E N/A .181 ± .008 (4.6 ± .2) inches (mm) | Dim. - F N/A .339 ± .008 (8.6 ± .2) inches (mm) | Dim. - H N/A .205 ± .008 (5.2 ± .2) inches (mm) | Dim. - L N/A .969 ± .020 (24.6 ± .5) inches (mm) | Request Quote/Sample |
| 10-90-250 10-90-250/Asset/10-90.png | Material Code N/A UL94V-2 | Wire Diameter N/A .161 (4.1) inches (mm) | Dim. - D N/A .161 (4.1) inches (mm) | Dim. - A N/A .315 ± .008 (8.0 ± .2) inches (mm) | Dim. - B N/A .134 ± .008 (3.4 ± .2) inches (mm) | Dim. - C N/A .366 ± .008 (9.3 ± .2) inches (mm) | Dim. - E N/A .185 ± .008 (4.7 ± .2) inches (mm) | Dim. - F N/A .378 ± .008 (9.6 ± .2) inches (mm) | Dim. - H N/A .220 ± .008 (5.6 ± .2) inches (mm) | Dim. - L N/A 1.02 ± .020 (26.0 ± .5) inches (mm) | Request Quote/Sample |
| 10-90-110X 10-90-110X/Asset/10-90.png | Material Code N/A UL94V-0 | Wire Diameter N/A .118 (3.0) inches (mm) | Dim. - D N/A .118 (3.0) inches (mm) | Dim. - A N/A .161 ± .008 (4.1 ± .2) inches (mm) | Dim. - B N/A .091 ± .008 (2.3 ± .2) inches (mm) | Dim. - C N/A .236 ± .008 (6.0 ± .2) inches (mm) | Dim. - E N/A .154 ± .008 (3.9 ± .2) inches (mm) | Dim. - F N/A .315 ± .008 (8.0 ± .2) inches (mm) | Dim. - H N/A .181 ± .008 (4.6 ± .2) inches (mm) | Dim. - L N/A .878 ± .020 (22.3 ± .5) inches (mm) | Request Quote/Sample |
| 10-90-111X 10-90-111X/Asset/10-90.png | Material Code N/A UL94V-0 | Wire Diameter N/A .142 (3.6) inches (mm) | Dim. - D N/A .142 (3.6) inches (mm) | Dim. - A N/A .161 ± .008 (4.1 ± .2) inches (mm) | Dim. - B N/A .083 ± .008 (2.1 ± .2) inches (mm) | Dim. - C N/A .240 ± .008 (6.1 ± .2) inches (mm) | Dim. - E N/A .161 ± .008 (4.1 ± .2) inches (mm) | Dim. - F N/A .343 ± .008 (8.7 ± .2) inches (mm) | Dim. - H N/A .205 ± .008 (5.2 ± .2) inches (mm) | Dim. - L N/A .898 ± .020 (22.8 ± .5) inches (mm) | Request Quote/Sample |
| 10-90-187X 10-90-187X/Asset/10-90.png | Material Code N/A UL94V-0 | Wire Diameter N/A .142 (3.6) inches (mm) | Dim. - D N/A .142 (3.6) inches (mm) | Dim. - A N/A .240 ± .008 (6.1 ± .2) inches (mm) | Dim. - B N/A .102 ± .008 (2.6 ± .2) inches (mm) | Dim. - C N/A .295 ± .008 (7.5 ± .2) inches (mm) | Dim. - E N/A .154 ± .008 (3.9 ± .2) inches (mm) | Dim. - F N/A .346 ± .008 (8.8 ± .2) inches (mm) | Dim. - H N/A .205 ± .008 (5.2 ± .2) inches (mm) | Dim. - L N/A .862 ± .020 (21.9 ± .5) inches (mm) | Request Quote/Sample |
| 10-90-205X 10-90-205X/Asset/10-90.png | Material Code N/A UL94V-0 | Wire Diameter N/A .142 (3.6) inches (mm) | Dim. - D N/A .142 (3.6) inches (mm) | Dim. - A N/A .260 ± .008 (6.6 ± .2) inches (mm) | Dim. - B N/A .118 ± .008 (3.0 ± .2) inches (mm) | Dim. - C N/A .331 ± .008 (8.4 ± .2) inches (mm) | Dim. - E N/A .181 ± .008 (4.6 ± .2) inches (mm) | Dim. - F N/A .339 ± .008 (8.6 ± .2) inches (mm) | Dim. - H N/A .205 ± .008 (5.2 ± .2) inches (mm) | Dim. - L N/A .969 ± .020 (24.6 ± .5) inches (mm) | Request Quote/Sample |
| 10-90-250X 10-90-250X/Asset/10-90.png | Material Code N/A UL94V-0 | Wire Diameter N/A .161 (4.1) inches (mm) | Dim. - D N/A .161 (4.1) inches (mm) | Dim. - A N/A .315 ± .008 (8.0 ± .2) inches (mm) | Dim. - B N/A .134 ± .008 (3.4 ± .2) inches (mm) | Dim. - C N/A .366 ± .008 (9.3 ± .2) inches (mm) | Dim. - E N/A .185 ± .008 (4.7 ± .2) inches (mm) | Dim. - F N/A .378 ± .008 (9.6 ± .2) inches (mm) | Dim. - H N/A .220 ± .008 (5.6 ± .2) inches (mm) | Dim. - L N/A 1.02 ± .020 (26.0 ± .5) inches (mm) | Request Quote/Sample |
