10-69-620
10-69-620/Asset/10 - 69 Series.jpg
|
Dim. - W1
N/A .236 (6.0) inches (mm)
|
Dim. - L2
N/A .394 (10.0) inches (mm)
|
Dim. - L3
N/A .453 (11.5) inches (mm)
|
Dim. - L1
N/A .059 (1.5) inches (mm)
|
Dim. - T
N/A .039 (1.0) inches (mm)
|
Dim. - W2
N/A .787 (20.0) inches (mm)
|

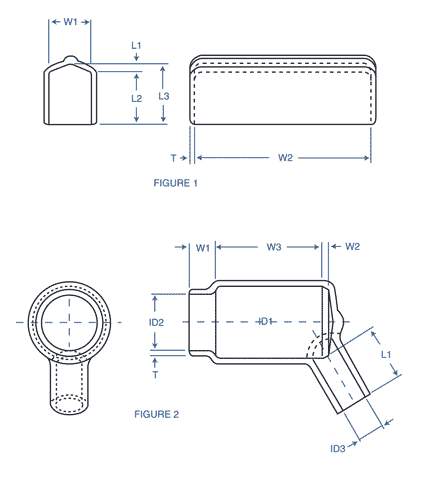

Fig No.
N/A 1
|
Request Quote/Sample
|
|
10-69-622
10-69-622/Asset/10 - 69 Series.jpg
|
Dim. - W1
N/A .236 (6.0) inches (mm)
|
Dim. - L2
N/A .315 (8.0) inches (mm)
|
Dim. - L3
N/A .394 (10.0) inches (mm)
|
Dim. - L1
N/A .079 (2.0) inches (mm)
|
Dim. - T
N/A .039 (1.0) inches (mm)
|
Dim. - W2
N/A .886 (22.5) inches (mm)
|
Fig No.
N/A 1
|
Request Quote/Sample
|
|
10-69-730
10-69-730/Asset/10 - 69 Series.jpg
|
Dim. - W1
N/A .276 (7.0) inches (mm)
|
Dim. - L2
N/A .394 (10.0) inches (mm)
|
Dim. - L3
N/A .472 (12.0) inches (mm)
|
Dim. - L1
N/A .079 (2.0) inches (mm)
|
Dim. - T
N/A .039 (1.0) inches (mm)
|
Dim. - W2
N/A 1.18 (30.0) inches (mm)
|
Fig No.
N/A 1
|
Request Quote/Sample
|
|
10-69-832
10-69-832/Asset/10 - 69 Series.jpg
|
Dim. - W1
N/A .315 (8.0) inches (mm)
|
Dim. - L2
N/A .394 (10.0) inches (mm)
|
Dim. - L3
N/A .453 (11.5) inches (mm)
|
Dim. - L1
N/A .059 (1.5) inches (mm)
|
Dim. - T
N/A .039 (1.0) inches (mm)
|
Dim. - W2
N/A 1.26 (32.0) inches (mm)
|
Fig No.
N/A 1
|
Request Quote/Sample
|
|
10-69-836
10-69-836/Asset/10 - 69 Series.jpg
|
Dim. - W1
N/A .315 (8.0) inches (mm)
|
Dim. - L2
N/A .394 (10.0) inches (mm)
|
Dim. - L3
N/A .472 (12.0) inches (mm)
|
Dim. - L1
N/A .079 (2.0) inches (mm)
|
Dim. - T
N/A .039 (1.0) inches (mm)
|
Dim. - W2
N/A 1.42 (36.0) inches (mm)
|
Fig No.
N/A 1
|
Request Quote/Sample
|
|
10-69-610
10-69-610/Asset/10 - 69 Series.jpg
|
Dim. - W1
N/A .118 (3.0) inches (mm)
|
Dim. - L2 N/A
|
Dim. - L3 N/A
|
Dim. - L1
N/A .394 (10.0) inches (mm)
|
Dim. - T
N/A .032 (.8) inches (mm)
|
Dim. - W2
N/A .018 (.5) inches (mm)
|
Fig No.
N/A 2
|
Request Quote/Sample
|
