• 54 Series: Insulator, .110 Flag Terminal

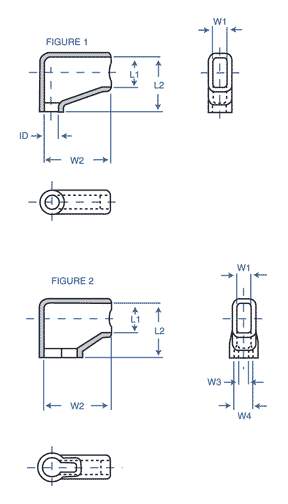

  • 10 - 60 Series - Dimensions
  • Insulating sleeve for flag type receptacles
  • 250 series
  • No negative effects due to exposure to copper
  • UL temperature rating: 105°C
  • CSA temperature rating: 105°C
  • UL voltage: 600V
  • CSA voltage: 600V
  • CSA # Product: LR52853 & LR52854
  • Color: Transparent Blue
  • Packaging: 1000/bag
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L1

Dim. - L2

Dim. - W1

Dim. - W2

Dim. - W3

Dim. - W4

Request Quote/Sample
N/A .197 (5.0) inches (mm) N/A .453 (11.5) inches (mm) N/A .114 (2.9) inches (mm) N/A .512 ± .039 (13.0 ± 1.0) inches (mm) N/A .079 (2.0) inches (mm) N/A .126 (3.2) inches (mm) Request Quote/Sample
N/A .217 (5.5) inches (mm) N/A .551 (14.0) inches (mm) N/A .126 (3.2) inches (mm) N/A .492 ± .039 (12.5 ± 1.0) inches (mm) N/A .079 (2.0) inches (mm) N/A .126 (3.2) inches (mm) Request Quote/Sample
N/A .256 (6.5) inches (mm) N/A .551 (14.0) inches (mm) N/A .138 (3.5) inches (mm) N/A .650 ± .039 (16.5 ± 1.0) inches (mm) N/A .079 (2.0) inches (mm) N/A .126 (3.2) inches (mm) Request Quote/Sample
