Insulating sleeve for flag type receptacles
187 series
No negative effects due to exposure to copper
UL temperature rating: 105°C
CSA temperature rating: 105°C
UL voltage: 600V
CSA voltage: 600V
CSA # Product: LR52853 & LR52854
Color: Transparent Blue
Packaging: 1000/bag

1 - 3 of 3 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

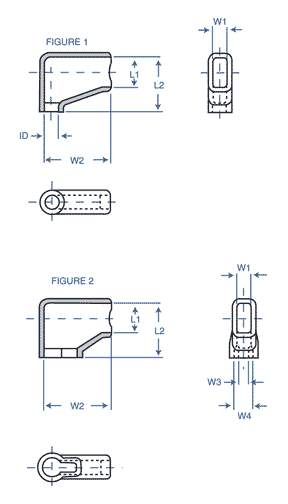

Item #	Dim. - I.D.	Dim. - L1	Dim. - L2	Dim. - W1	Dim. - W2	Request Quote/Sample

10-56-225	N/A .098 (2.5) inches (mm)	N/A .244 (6.2) inches (mm)	N/A .453 (11.5) inches (mm)	N/A .118 (3.0) inches (mm)	N/A .551 ± .039 (14.0 ± 1.0) inches (mm)	Request Quote/Sample
10-56-230	N/A .118 (3.0) inches (mm)	N/A .244 (6.2) inches (mm)	N/A .453 (11.5) inches (mm)	N/A .118 (3.0) inches (mm)	N/A .551 ± .039 (14.0 ± 1.0) inches (mm)	Request Quote/Sample
10-56-232	N/A .126 (3.2) inches (mm)	N/A .244 (6.2) inches (mm)	N/A .453 (11.5) inches (mm)	N/A .118 (3.0) inches (mm)	N/A .551 ± .039 (14.0 ± 1.0) inches (mm)	Request Quote/Sample
