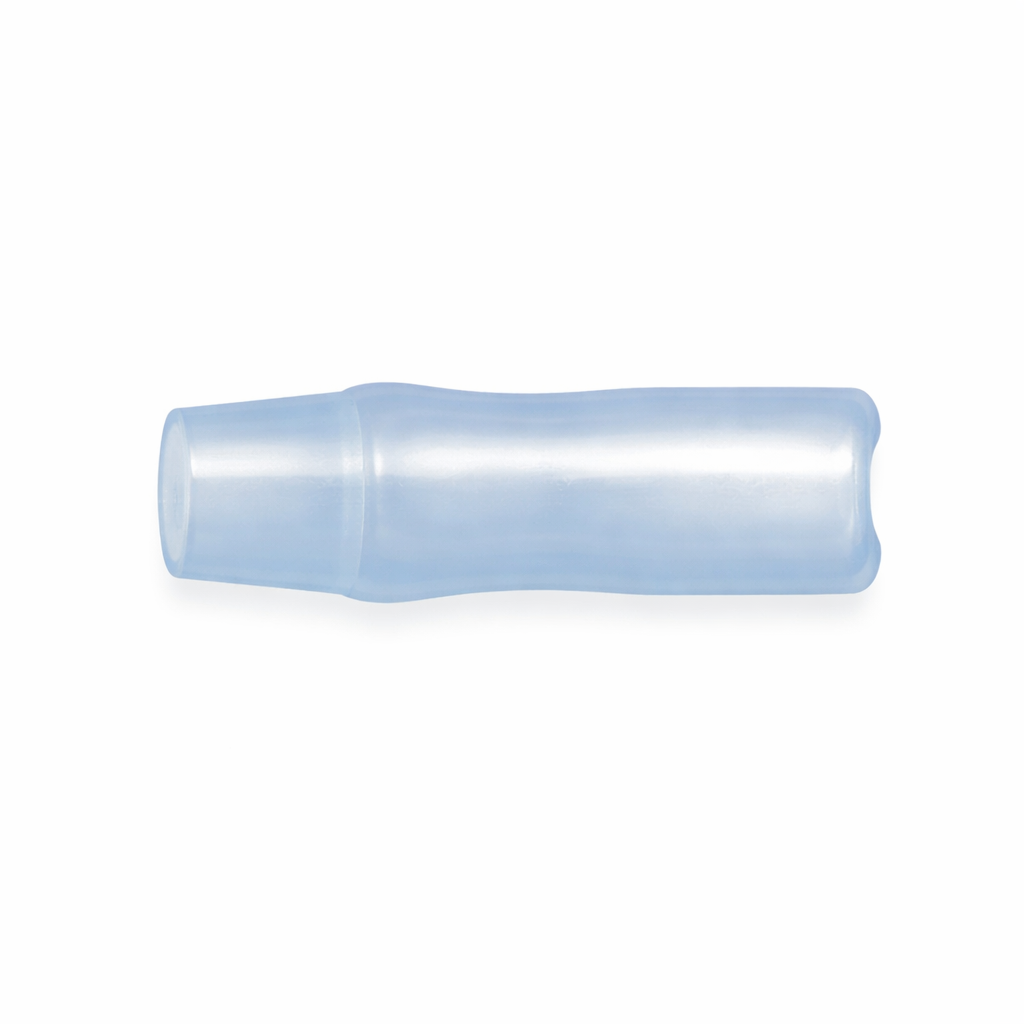

46 Series: Insulator, .110 Flat Pin
(10) Component Insulators & End Caps
- Insulating sleeve for flat type pin receptacle
- 110 series
- UL temperature rating: 105°C
- CSA temperature rating: 105°C
- UL voltage: 600V
- CSA voltage: 600V
- CSA # Product: LR52853 & LR52854
- Color: Transparent Blue
- Packaging: 1000/bag
- Material: Soft PVC
Item # |
Dim. - I.D. 1 |
Dim. - I.D. 2 |
Dim. - L1 |
Dim. - L2 |
Dim. - L3 |
Dim. - L4 |
Dim. - W1 |
Dim. - W2 |
Request Quote/Sample |
|---|---|---|---|---|---|---|---|---|---|
| 10-46-015 10-46-015/Asset/10-46-Insulator---110-Flat-Pin.png | Dim. - I.D. 1 N/A .059 (1.5) inches (mm) | Dim. - I.D. 2 N/A .118 (3.0) inches (mm) | Dim. - L1 N/A .197 ± .039 (5.0 ± 1.0) inches (mm) | Dim. - L2 N/A .098 (2.5) inches (mm) | Dim. - L3 N/A .610 ± .039 (15.5 ± 1.0) inches (mm) | Dim. - L4 N/A .906 (23.0) inches (mm) | Dim. - W1 N/A .158 (4.0) inches (mm) | Dim. - W2 N/A .079 (2.0) inches (mm) | Request Quote/Sample |
| 10-46-016 10-46-016/Asset/10-46-Insulator---110-Flat-Pin.png | Dim. - I.D. 1 N/A .063 (1.6) inches (mm) | Dim. - I.D. 2 N/A .134 (3.4) inches (mm) | Dim. - L1 N/A .118 ± .039 (3.0 ± 1.0) inches (mm) | Dim. - L2 N/A .098 (2.5) inches (mm) | Dim. - L3 N/A .492 ± .039 (12.5 ± 1.0) inches (mm) | Dim. - L4 N/A .709 (18.0) inches (mm) | Dim. - W1 N/A .158 (4.0) inches (mm) | Dim. - W2 N/A .083 (2.1) inches (mm) | Request Quote/Sample |
| 10-46-018 10-46-018/Asset/10-46-Insulator---110-Flat-Pin.png | Dim. - I.D. 1 N/A .071 (1.8) inches (mm) | Dim. - I.D. 2 N/A .130 (3.3) inches (mm) | Dim. - L1 N/A .197 ± .039 (5.0 ± 1.0) inches (mm) | Dim. - L2 N/A .098 (2.5) inches (mm) | Dim. - L3 N/A .531 ± .039 (13.5 ± 1.0) inches (mm) | Dim. - L4 N/A .827 (21.0) inches (mm) | Dim. - W1 N/A .158 (4.0) inches (mm) | Dim. - W2 N/A .083 (2.1) inches (mm) | Request Quote/Sample |
| 10-46-020 10-46-020/Asset/10-46-Insulator---110-Flat-Pin.png | Dim. - I.D. 1 N/A .079 (2.0) inches (mm) | Dim. - I.D. 2 N/A .138 (3.5) inches (mm) | Dim. - L1 N/A .197 ± .039 (5.0 ± 1.0) inches (mm) | Dim. - L2 N/A .098 (2.5) inches (mm) | Dim. - L3 N/A .610 ± .039 (15.5 ± 1.0) inches (mm) | Dim. - L4 N/A .906 (23.0) inches (mm) | Dim. - W1 N/A .158 (4.0) inches (mm) | Dim. - W2 N/A .079 (2.0) inches (mm) | Request Quote/Sample |
| 10-46-025 10-46-025/Asset/10-46-Insulator---110-Flat-Pin.png | Dim. - I.D. 1 N/A .098 (2.5) inches (mm) | Dim. - I.D. 2 N/A .138 (3.5) inches (mm) | Dim. - L1 N/A .197 ± .039 (5.0 ± 1.0) inches (mm) | Dim. - L2 N/A .098 (2.5) inches (mm) | Dim. - L3 N/A .610 ± .039 (15.5 ± 1.0) inches (mm) | Dim. - L4 N/A .906 (23.0) inches (mm) | Dim. - W1 N/A .158 (4.0) inches (mm) | Dim. - W2 N/A .079 (2.0) inches (mm) | Request Quote/Sample |
| 10-46-028 10-46-028/Asset/10-46-Insulator---110-Flat-Pin.png | Dim. - I.D. 1 N/A .110 (2.8) inches (mm) | Dim. - I.D. 2 N/A .169 (4.3) inches (mm) | Dim. - L1 N/A .197 ± .039 (5.0 ± 1.0) inches (mm) | Dim. - L2 N/A .098 (2.5) inches (mm) | Dim. - L3 N/A .531 ± .039 (13.5 ± 1.0) inches (mm) | Dim. - L4 N/A .827 (21.0) inches (mm) | Dim. - W1 N/A .158 (4.0) inches (mm) | Dim. - W2 N/A .083 (2.1) inches (mm) | Request Quote/Sample |
| 10-46-030 10-46-030/Asset/10-46-Insulator---110-Flat-Pin.png | Dim. - I.D. 1 N/A .118 (3.0) inches (mm) | Dim. - I.D. 2 N/A .150 (3.8) inches (mm) | Dim. - L1 N/A .197 ± .039 (5.0 ± 1.0) inches (mm) | Dim. - L2 N/A .098 (2.5) inches (mm) | Dim. - L3 N/A .610 ± .039 (15.5 ± 1.0) inches (mm) | Dim. - L4 N/A .906 (23.0) inches (mm) | Dim. - W1 N/A .158 (4.0) inches (mm) | Dim. - W2 N/A .079 (2.0) inches (mm) | Request Quote/Sample |
| 10-46-035 10-46-035/Asset/10-46-Insulator---110-Flat-Pin.png | Dim. - I.D. 1 N/A .138 (3.5) inches (mm) | Dim. - I.D. 2 N/A .177 (4.5) inches (mm) | Dim. - L1 N/A .197 ± .039 (5.0 ± 1.0) inches (mm) | Dim. - L2 N/A .098 (2.5) inches (mm) | Dim. - L3 N/A .610 ± .039 (15.5 ± 1.0) inches (mm) | Dim. - L4 N/A .906 (23.0) inches (mm) | Dim. - W1 N/A .158 (4.0) inches (mm) | Dim. - W2 N/A .079 (2.0) inches (mm) | Request Quote/Sample |
