• 22 Series: Two Pronged Flat/Round Insulator

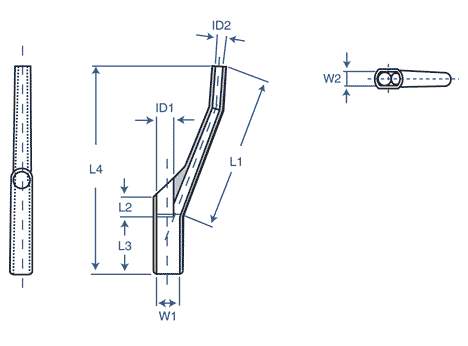

  • 10 - 22 Series - Dimensions
  • Two pronged flat round shield caps
  • UL temperature rating: 105°C
  • CSA temperature rating: 90°C
  • UL voltage: 600V
  • CSA voltage: 300V
  • CSA # Product: LR52853 & LR52854
  • Color: Transparent Blue
  • Packaging: 1000/bag
  • Material: Soft PVC
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - I.D. 1

Dim. - I.D. 2

Dim. - L1

Dim. - L2

Dim. - L3

Dim. - L4

Dim. - W1

Dim. - W2

Request Quote/Sample
N/A .051 (1.3) inches (mm) N/A .028 (.7) inches (mm) N/A .591 ± .039 (15.0 ± 1.0) inches (mm) N/A .138 ± .059 (3.5 ± 1.5) inches (mm) N/A .315 ± .039 (8.0 ± 1.0) inches (mm) N/A .906 (23.0) inches (mm) N/A .091 (2.3) inches (mm) N/A .071 (1.8) inches (mm) Request Quote/Sample
N/A .067 (1.7) inches (mm) N/A .031 (.8) inches (mm) N/A .591 ± .039 (15.0 ± 1.0) inches (mm) N/A .138 ± .059 (3.5 ± 1.5) inches (mm) N/A .394 ± .039 (10.0 ± 1.0) inches (mm) N/A .984 (25.0) inches (mm) N/A .094 (2.4) inches (mm) N/A .079 (2.0) inches (mm) Request Quote/Sample
N/A .067 (1.7) inches (mm) N/A .031 (.8) inches (mm) N/A .787 ± .039 (20.0 ± 1.0) inches (mm) N/A .138 ± .059 (3.5 ± 1.5) inches (mm) N/A .394 ± .039 (10.0 ± 1.0) inches (mm) N/A 1.18 (30.0) inches (mm) N/A .094 (2.4) inches (mm) N/A .079 (2.0) inches (mm) Request Quote/Sample
N/A .067 (1.7) inches (mm) N/A .031 (.8) inches (mm) N/A .984 ± .039 (25.0 ± 1.0) inches (mm) N/A .138 ± .059 (3.5 ± 1.5) inches (mm) N/A .394 ± .039 (10.0 ± 1.0) inches (mm) N/A 1.38 (35.0) inches (mm) N/A .094 (2.4) inches (mm) N/A .079 (2.0) inches (mm) Request Quote/Sample
N/A .067 (1.7) inches (mm) N/A .031 (.8) inches (mm) N/A 1.18 ± .039 (30.0 ± 1.0) inches (mm) N/A .138 ± .059 (3.5 ± 1.5) inches (mm) N/A .394 ± .039 (10.0 ± 1.0) inches (mm) N/A 1.57 (40.0) inches (mm) N/A .094 (2.4) inches (mm) N/A .079 (2.0) inches (mm) Request Quote/Sample
