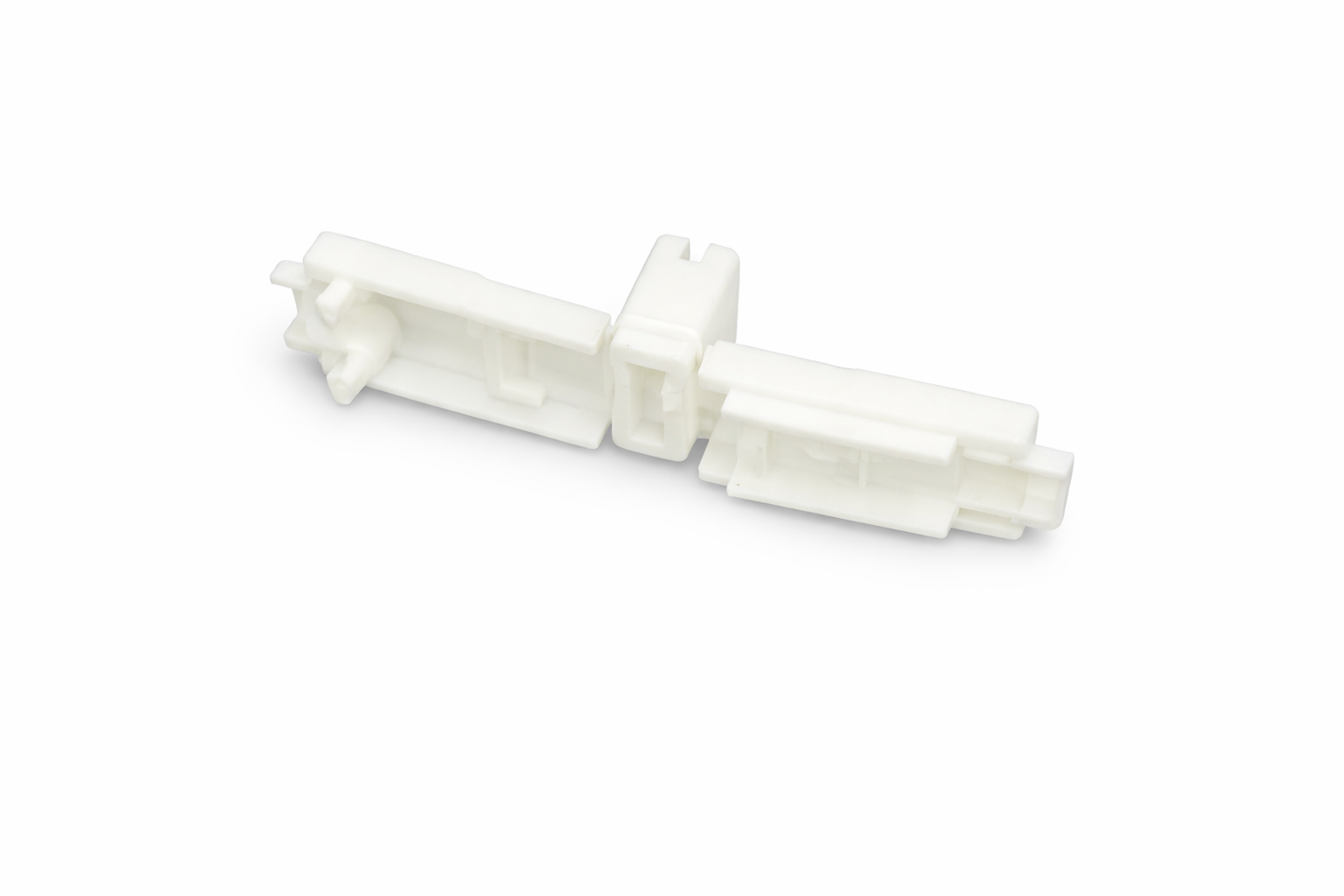

• 92 Series: Insulator, Positive Lock Straight Terminal

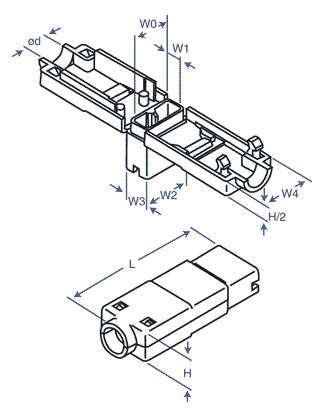

  • 10 - 92 Series - Dimensions
  • Insulating sleeve straight-type terminal (positive lock)
  • For 187 and 250 terminal series
  • Material Code: UL94V-0
  • Color: White
  • Packaging: 500/bag
  • Material: Nylon 66
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dia. - d

Dim. - W0

Dim. - W1

Dim. - W2

Dim. - W3

Dim. - W4

Dim. - H

Dim. - L

Request Quote/Sample
N/A .158 (4.0) inches (mm) N/A .228 (5.8) inches (mm) N/A .105 (2.7) inches (mm) N/A .284 (7.2) inches (mm) N/A .158 (4.0) inches (mm) N/A .370 (9.4) inches (mm) N/A .221 (5.6) inches (mm) N/A .976 (24.8) inches (mm) Request Quote/Sample
N/A .173 (4.4) inches (mm) N/A .319 (8.1) inches (mm) N/A .134 (3.4) inches (mm) N/A .374 (9.5) inches (mm) N/A .189 (4.8) inches (mm) N/A .394 (10.0) inches (mm) N/A .236 (6.0) inches (mm) N/A 1.10 (28.0) inches (mm) Request Quote/Sample
