• 12 Series: Triad Terminal Spacer

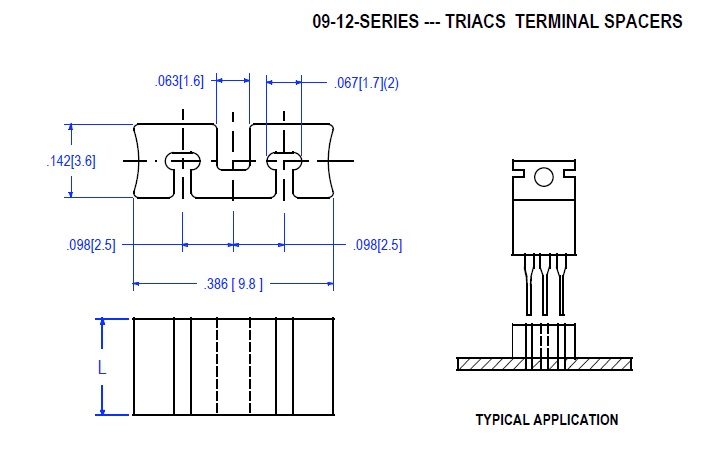

  • 09-12 SKETCH

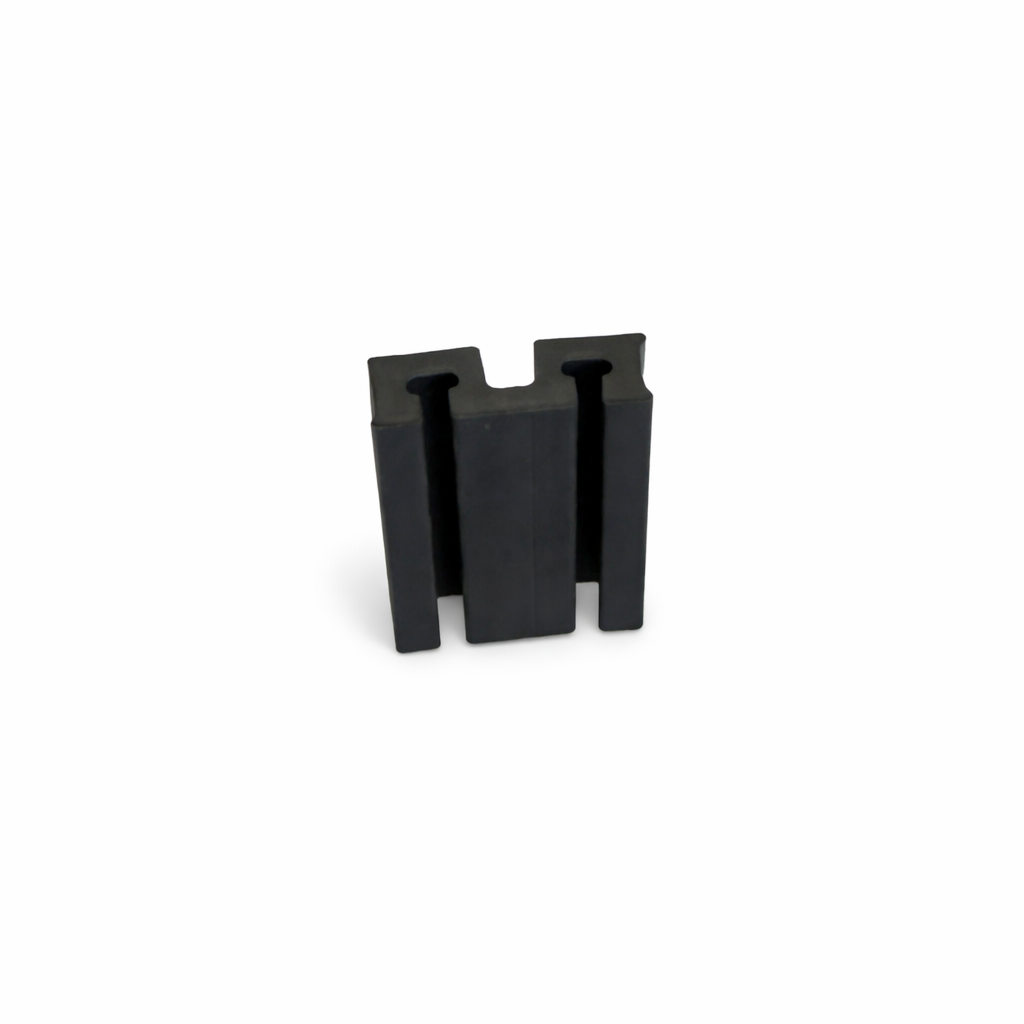

  • Triad Terminal Spacer
  • Excellant Heat, Cold & Chemical Resistance
  • Suitable for Wave Solder Applications
  • Color: Black
  • Packaging: 1000/bag
  • Material: SEPS
  • UL94V-0 (E58608)
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Material Code

Dim. - L

Request Quote/Sample
N/A UL94V-0 N/A .118 (3) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .157 (4) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .197 (5) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .236 (6) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .276 (7) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .315 (8) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .354 (9) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .394 (10) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .433 (11) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .472 (12) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .512 (13) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .551 (14) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .590 (15) inches (mm) Request Quote/Sample
