• 01 Series: Snap Rivets(Plastic)

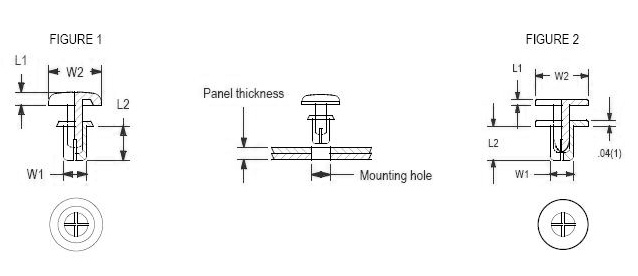

  • 06-01PSeries Dimensions
  • Plastic Snap Rivets (High Temperature)
  • For use in sustained High Temperature Applications
  • Insert in hole, press top to lock into place
  • Removable/Re-usable Rivets
  • Color: Black
  • Packaging: 1000/bag
  • Material: Polysulfone
  • UL Rating:  94V-1
  • UL File No.  E41871
  • RoHS Compliant
  • Temp Range(Ref):  -32 to 310 F (0 to 155 C)
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Figure#

Mounting Hole Dia.

Panel Thickness Range

W1

Dim. - L1

L2 +/- .012

W2

Request Quote/Sample
N/A 1 N/A .122 - .126 (3.1-3.2) inches (mm) N/A .059 - .098 (1.5-2.5) inches (mm) N/A .12 (3.0) inches (mm) N/A .06 (1.6) inches (mm) N/A .18 (4.5) inches (mm) N/A .25 (6.4) inches (mm) Request Quote/Sample
N/A 1 N/A .122 - .126 (3.1-3.2) inches (mm) N/A .098 - .138 (2.5-3.5) inches (mm) N/A .12 (3.0) inches (mm) N/A .06 (1.6) inches (mm) N/A .22 (5.5) inches (mm) N/A .25 (6.4) inches (mm) Request Quote/Sample
N/A 2 N/A .157 - .165 (4.0-4.2) inches (mm) N/A .138 - .177 (3.5-4.5) inches (mm) N/A .16 (4.0) inches (mm) N/A .04 (1.0) inches (mm) N/A .26 (6.5) inches (mm) N/A .28 (7.0) inches (mm) Request Quote/Sample
