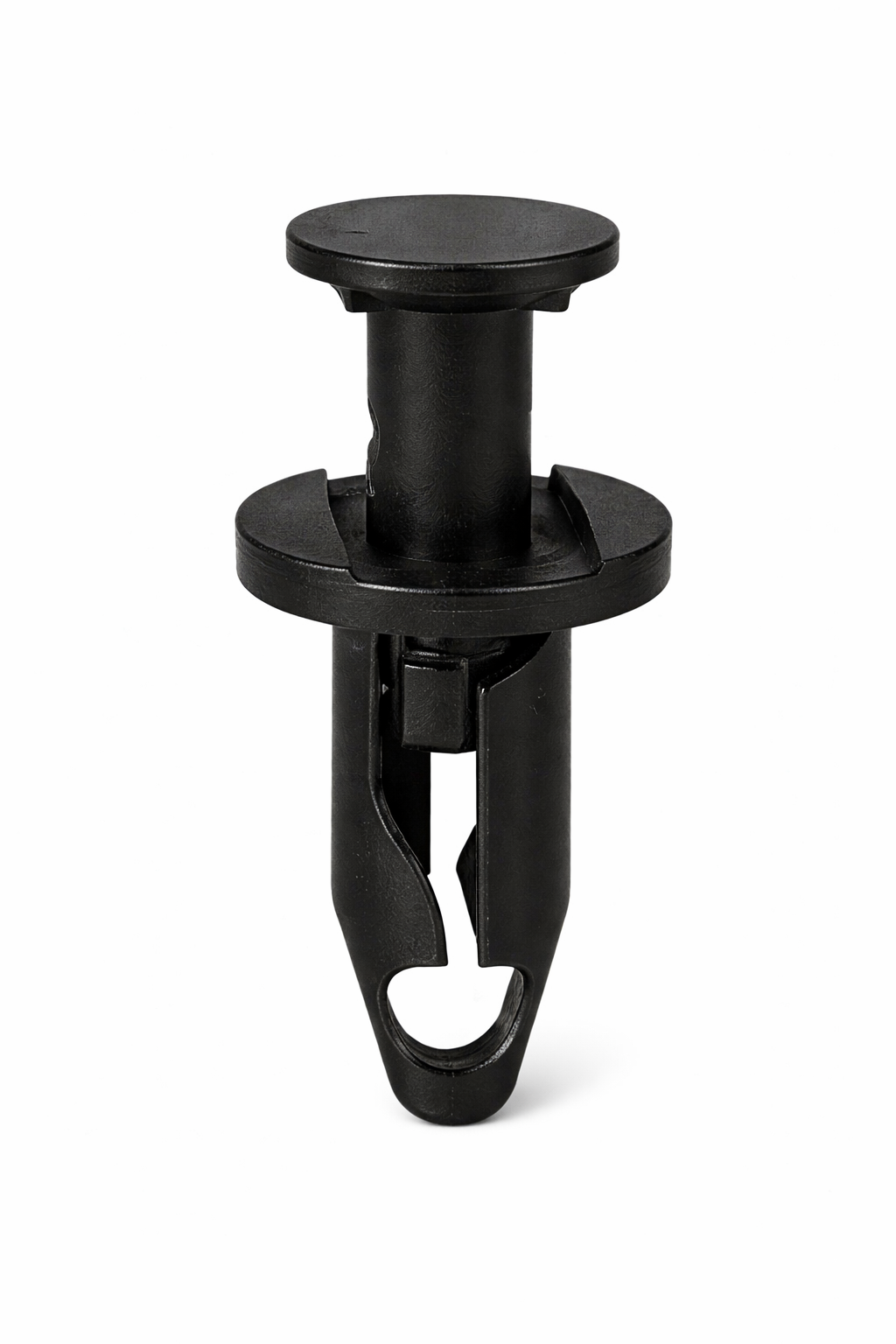

• 12 Series: Tough Lock Rivets
  • 06-12- Sketch
  • Snap locks into hole by hand
  • Removable
  • .250-.325 Mtg Hole Ranges
  • Material Code: UL94-HB
  • Nylon 66 UV Stabilized -Medium Tough High Performance
  • UL FILE# E41938
  • Color: Black
  • Packaging: 1000/Bag
  • Temp Range: -40 to 185F (-40 to 85C)
  • RoHS Compliant
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Hole Diameter - HD

Panel Thickness

L

D

T

T1

Request Quote/Sample
N/A .250-.276(6.4-7) inches (mm) N/A .098-.315 (2.5-8) inches (mm) N/A .897 (22.8) inches (mm) N/A .587 (14.9) inches (mm) N/A .079 (2) inches (mm) N/A .110 (2.8) Request Quote/Sample
N/A .315-.325 (8-8.3) inches (mm) N/A .118-.315 (3-8) inches (mm) N/A .830 (21.1) inches (mm) N/A .587 (14.9) inches (mm) N/A .106 (2.7) inches (mm) N/A .091 (2.3) Request Quote/Sample
