00 Series: Push Rivets Blunt (Plastic) (.122 to .240 mtg. hole)
(06) Rivets

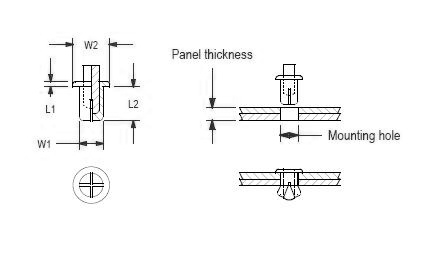

.jpg "06-00 Dimensions")
.jpg "06-00 Dimensions")

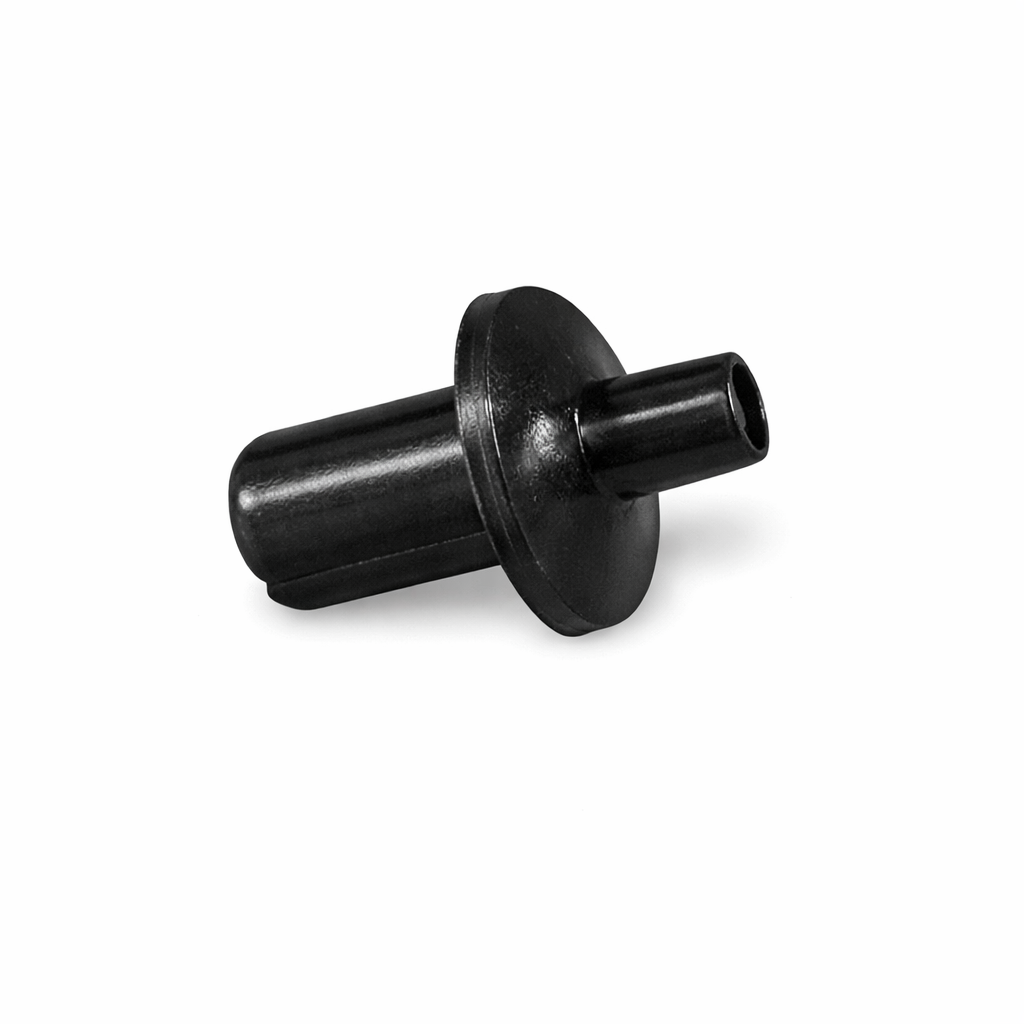

- Push Rivets Plastic (Blunt Style)
- Drive Rivet into plunger to install
- Color: Black (White available by special order)
- Packaging: 1000/bag
- Material: Nylon 6
- UL Rating: 94V-2
- UL File No: E41871
- RoHS Compliant
- Temp Range (Ref): -40 to 185 F (-40 to 85 C)
Item # |
Mounting Hole Dia. |
Dim. - L1 |
Dim. - L2 |
Dim. - W1 |
Dim. - W2 |
Panel Thickness Range |
Request Quote/Sample |
|---|---|---|---|---|---|---|---|
| 06-00-3045 06-00-3045/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .122 (3.1) inches (mm) | Dim. - L1 N/A .08 (2.0) inches (mm) | Dim. - L2 N/A .18 (4.5) inches (mm) | Dim. - W1 N/A .118 (3.0) inches (mm) | Dim. - W2 N/A .23 (5.8) inches (mm) | Panel Thickness Range N/A .08 - .12 (2.0 - 3.0) inches (mm) | Request Quote/Sample |
| 06-00-3055 06-00-3055/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .122 (3.1) inches (mm) | Dim. - L1 N/A .08 (2.0) inches (mm) | Dim. - L2 N/A .22 (5.5) inches (mm) | Dim. - W1 N/A .118 (3.0) inches (mm) | Dim. - W2 N/A .23 (5.8) inches (mm) | Panel Thickness Range N/A .12 - .16 (3.0 - 4.0) inches (mm) | Request Quote/Sample |
| 06-00-4050 06-00-4050/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .161 (4.1) inches (mm) | Dim. - L1 N/A .09 (2.2) inches (mm) | Dim. - L2 N/A .20 (5.1) inches (mm) | Dim. - W1 N/A .158 (4.0) inches (mm) | Dim. - W2 N/A .315 (8.0) inches (mm) | Panel Thickness Range N/A .10 - .14 (2.5 - 3.5) inches (mm) | Request Quote/Sample |
| 06-00-4060 06-00-4060/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .161 (4.1) inches (mm) | Dim. - L1 N/A .09 (2.2) inches (mm) | Dim. - L2 N/A .24 (6.0) inches (mm) | Dim. - W1 N/A .158 (4.0) inches (mm) | Dim. - W2 N/A .315 (8.0) inches (mm) | Panel Thickness Range N/A .14 - .18 (3.5 - 4.5) inches (mm) | Request Quote/Sample |
| 06-00-4850 06-00-4850/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .189 (4.8) inches (mm) | Dim. - L1 N/A .13 (3.3) inches (mm) | Dim. - L2 N/A .20 (5.1) inches (mm) | Dim. - W1 N/A .189 (4.8) inches (mm) | Dim. - W2 N/A .39 (9.9) inches (mm) | Panel Thickness Range N/A .05 - .12 (1.2 - 3.0) inches (mm) | Request Quote/Sample |
| 06-00-5050 06-00-5050/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .201 (5.1) inches (mm) | Dim. - L1 N/A .11 (2.8) inches (mm) | Dim. - L2 N/A .20 (5.1) inches (mm) | Dim. - W1 N/A .197 (5.0) inches (mm) | Dim. - W2 N/A .37 (9.4) inches (mm) | Panel Thickness Range N/A .08 - .12 (2.0 - 3.0) inches (mm) | Request Quote/Sample |
| 06-00-5060 06-00-5060/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .201 (5.1) inches (mm) | Dim. - L1 N/A .110 (2.8) inches (mm) | Dim. - L2 N/A .24 (6.1) inches (mm) | Dim. - W1 N/A .197 (5.0) inches (mm) | Dim. - W2 N/A .37 (9.4) inches (mm) | Panel Thickness Range N/A .12 - .16 (3.0 - 4.0) inches (mm) | Request Quote/Sample |
| 06-00-5070 06-00-5070/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .201 (5.1) inches (mm) | Dim. - L1 N/A .110 (2.8) inches (mm) | Dim. - L2 N/A .28 (7.1) inches (mm) | Dim. - W1 N/A .197 (5.0) inches (mm) | Dim. - W2 N/A .37 (9.4) inches (mm) | Panel Thickness Range N/A .16 - .20 (4.0 - 5.0) inches (mm) | Request Quote/Sample |
| 06-00-5080 06-00-5080/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .201 (5.1) inches (mm) | Dim. - L1 N/A .110 (2.8) inches (mm) | Dim. - L2 N/A .32 (8.1) inches (mm) | Dim. - W1 N/A .197 (5.0) inches (mm) | Dim. - W2 N/A .37 (9.4) inches (mm) | Panel Thickness Range N/A .20 - .24 (5.0 - 6.0) inches (mm) | Request Quote/Sample |
| 06-00-5090 06-00-5090/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .201 (5.1) inches (mm) | Dim. - L1 N/A .110 (2.8) inches (mm) | Dim. - L2 N/A .354 (9.0) inches (mm) | Dim. - W1 N/A .197 (5.0) inches (mm) | Dim. - W2 N/A .37 (9.4) inches (mm) | Panel Thickness Range N/A .24 - .28 (6.0 - 7.0) inches (mm) | Request Quote/Sample |
| 06-00-5100 06-00-5100/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .201 (5.1) inches (mm) | Dim. - L1 N/A .150 (3.8) inches (mm) | Dim. - L2 N/A .39 (10.0) inches (mm) | Dim. - W1 N/A .197 (5.0) inches (mm) | Dim. - W2 N/A .37 (9.4) inches (mm) | Panel Thickness Range N/A .28 - .31 (7.0 - 8.0) inches (mm) | Request Quote/Sample |
| 06-00-6060 06-00-6060/Asset/06-00-Series-Push-Rivets-Blunt-Plastic.png | Mounting Hole Dia. N/A .240 (6.1) inches (mm) | Dim. - L1 N/A .06 (1.5) inches (mm) | Dim. - L2 N/A .24 (6.1) inches (mm) | Dim. - W1 N/A .236 (6.0) inches (mm) | Dim. - W2 N/A .43 (10.9) inches (mm) | Panel Thickness Range N/A .10 - .16 (2.5 - 4.0) inches (mm) | Request Quote/Sample |
