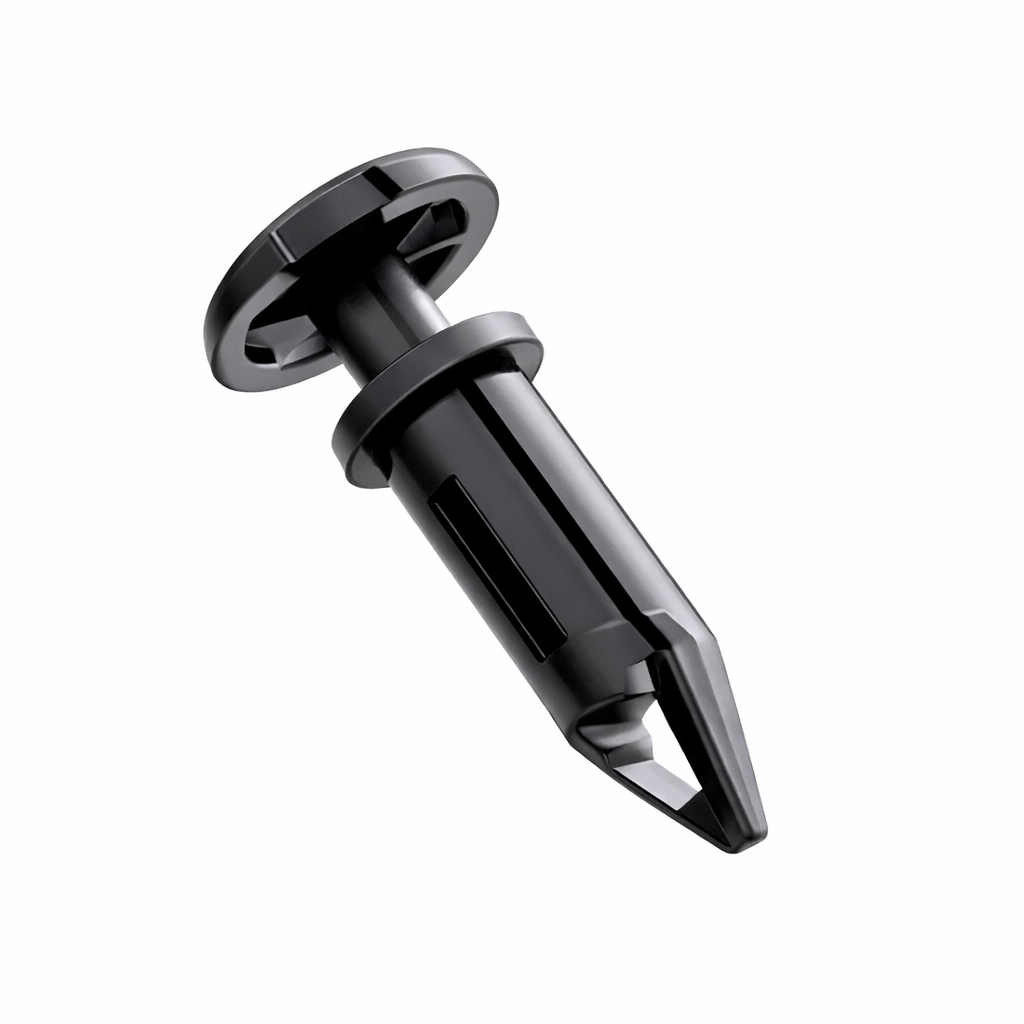

• 18 Series: Snap Tough Lock Rivets

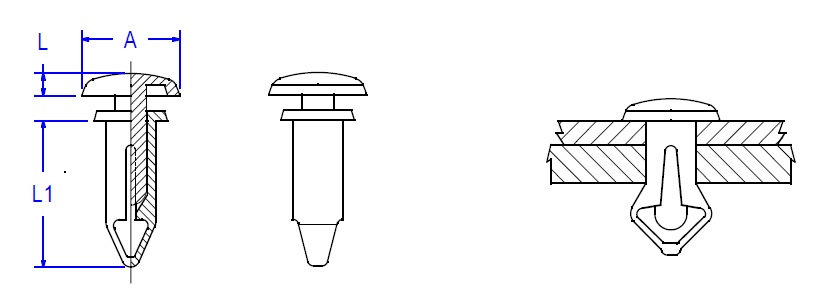

  • 06-18 Sketch
  • Snap locks into hole by hand
  • Removable
  • .140-.197 Mtg Hole Ranges
  • Material Code: UL94-V2
  • Nylon 66 Black
  • UL FILE# E41871
  • Color: Black
  • Packaging: 1000/Bag
  • Temp Range: -40 to 185F (-40 to 85C)
  • RoHS Compliant
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Hole Diameter - HD

Panel Thickness

L1

A

L

Request Quote/Sample
N/A .141-.146 (3.6-3.7) inches (mm) N/A .078-.137 (2-3.5) inches (mm) N/A .37 (9.5) inches (mm) N/A .25 (6.4) inches (mm) N/A .063 (1.6) inches (mm) Request Quote/Sample
N/A .141-.146 (3.6-3.7) inches (mm) N/A .137-196 (3.5-5) inches (mm) N/A .45 (11.5) inches (mm) N/A .25 (6.4) inches (mm) N/A .063 (1.6) inches (mm) Request Quote/Sample
N/A .141-.146 (3.6-3.7) inches (mm) N/A .196-.255 (5-6.5) inches (mm) N/A .53 (13.5) inches (mm) N/A .25 (6.4) inches (mm) N/A .063 (1.6) inches (mm) Request Quote/Sample
N/A .161-.165 (4.1-4.2) inches (mm) N/A .078-.137 (2-3.5) inches (mm) N/A .39 (10) inches (mm) N/A .32 (8) inches (mm) N/A .07 (1.8) inches (mm) Request Quote/Sample
N/A .161-.165 (4.1-4.2) inches (mm) N/A .137-.217 (3.5-5.5) inches (mm) N/A .47 (12) inches (mm) N/A .32 (8) inches (mm) N/A .07 (1.8) inches (mm) Request Quote/Sample
N/A .161-.165 (4.1-4.2) inches (mm) N/A .217-.295 (5.5-7.5) inches (mm) N/A .55 (14) inches (mm) N/A .32 (8) inches (mm) N/A .07 (1.8) inches (mm) Request Quote/Sample
N/A .193-.197 (4.9-5) inches (mm) N/A .078-.137 (2-3.5) inches (mm) N/A .43 (11) inches (mm) N/A .35 (9) inches (mm) N/A .086 (2.2) inches (mm) Request Quote/Sample
N/A .193-.197 (4.9-5) inches (mm) N/A .157-.236 (4-6) inches (mm) N/A .51 (13) inches (mm) N/A .35 (9) inches (mm) N/A .086 (2.2) inches (mm) Request Quote/Sample
N/A .193-.197 (4.9-5) inches (mm) N/A .236-.315 (6-8) inches (mm) N/A .57 (14.5) inches (mm) N/A .35 (9) inches (mm) N/A .086 (2.2) inches (mm) Request Quote/Sample
