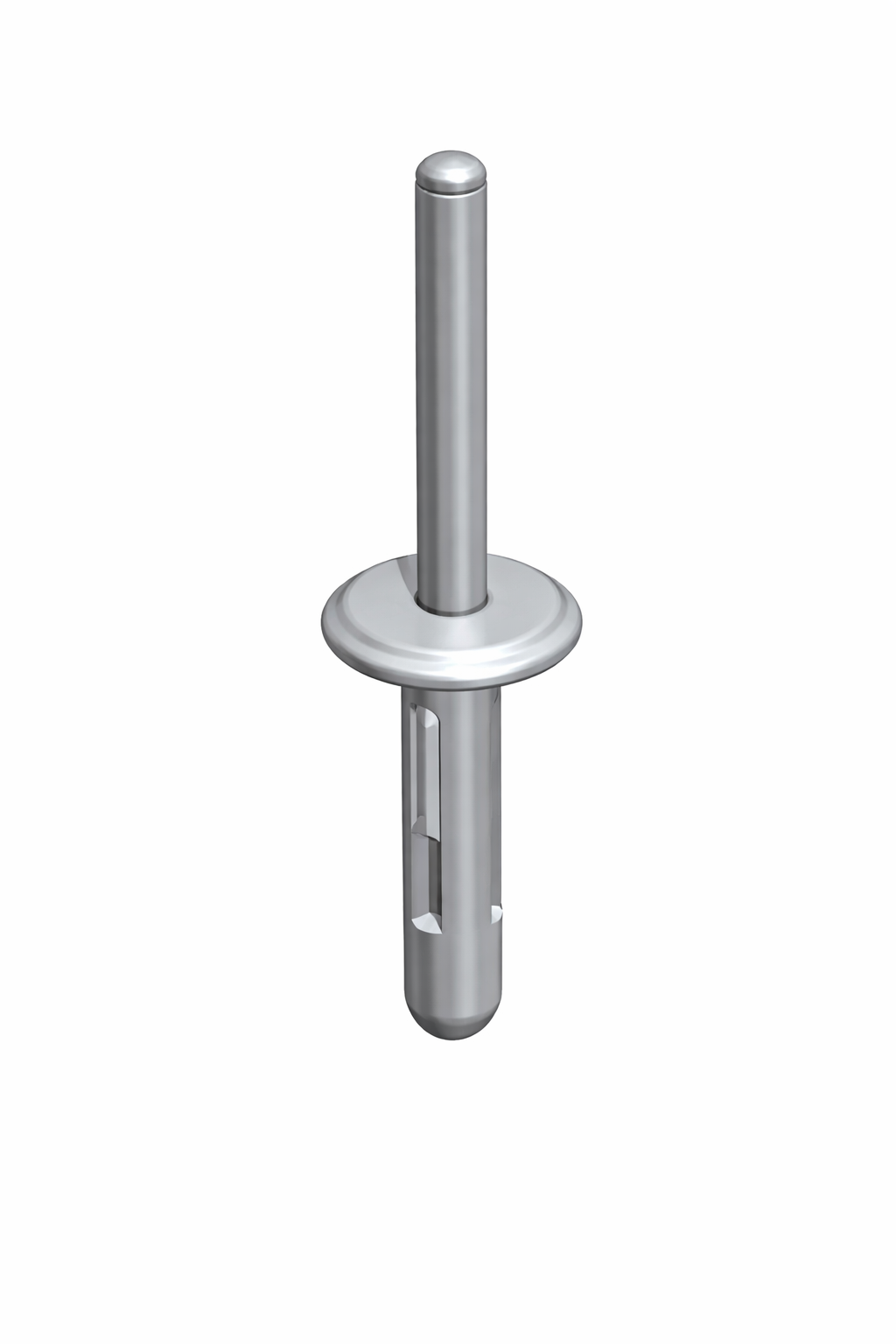

16 Series: Clinch Rivets
(06) Rivets
- Clinch Rivets
- Alternative to Metal Style
- .150-.260 Mtg Hole Ranges
- Accomodates a variety of panel ranges
- Material: (Pin) Acetal (Body) Nylon 6
- Color: Black
- Packaging: 1000/Bag
- RoHS Compliant

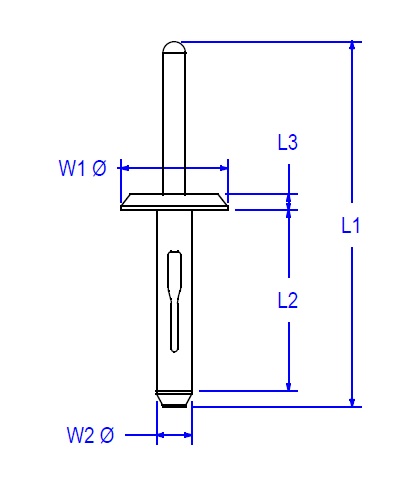

Item # |
Hole Diameter - HD |
Panel Thickness |
L1 |
L2 |
L3 |
Dim. - W1 |
Dim. - W2 |
Request Quote/Sample |
|---|---|---|---|---|---|---|---|---|
| 06-16-120 06-16-120/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .150 (3.9) inches (mm) | Panel Thickness N/A .098-.197 (2.5-5.0) inches (mm) | L1 N/A 1.89(48) inches (mm) | L2 N/A .614(15.6) inches (mm) | L3 N/A .098(2.5) inches (mm) | Dim. - W1 N/A .315(8) inches (mm) | Dim. - W2 N/A .150(3.8) inches (mm) | Request Quote/Sample |
| 06-16-10 06-16-10/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .197(5) inches (mm) | Panel Thickness N/A .118-.157(3-4) inches (mm) | L1 N/A 1.84(46.6) inches (mm) | L2 N/A .59(15) inches (mm) | L3 N/A .071(1.8) inches (mm) | Dim. - W1 N/A .35(8.9) inches (mm) | Dim. - W2 N/A .193(4.9) inches (mm) | Request Quote/Sample |
| 06-16-20 06-16-20/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .197(5) inches (mm) | Panel Thickness N/A .118-.236(3-6) inches (mm) | L1 N/A 1.88(46.8) inches (mm) | L2 N/A .669(17) inches (mm) | L3 N/A .071(1.8) inches (mm) | Dim. - W1 N/A .472(12) inches (mm) | Dim. - W2 N/A .193(4.9) inches (mm) | Request Quote/Sample |
| 06-16-30 06-16-30/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .197(5) inches (mm) | Panel Thickness N/A .236-.393(6-10) inches (mm) | L1 N/A 2.0(50.9) inches (mm) | L2 N/A .866(2.2) inches (mm) | L3 N/A .071(1.8) inches (mm) | Dim. - W1 N/A .472(12) inches (mm) | Dim. - W2 N/A .193(4.9) inches (mm) | Request Quote/Sample |
| 06-16-70 06-16-70/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .200(5.1) inches (mm) | Panel Thickness N/A .079-.196(2-6) inches (mm) | L1 N/A 1.86(47.3) inches (mm) | L2 N/A .618(15.7) inches (mm) | L3 N/A .125(3.2) inches (mm) | Dim. - W1 N/A .465(11.8) inches (mm) | Dim. - W2 N/A .19(4.85) inches (mm) | Request Quote/Sample |
| 06-16-80 06-16-80/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .200(5.1) inches (mm) | Panel Thickness N/A .122-.217(3.1-5.5) inches (mm) | L1 N/A 1.86(47.3) inches (mm) | L2 N/A .677(17.2) inches (mm) | L3 N/A .075(1.9) inches (mm) | Dim. - W1 N/A .484(12.3) inches (mm) | Dim. - W2 N/A .19(4.85) inches (mm) | Request Quote/Sample |
| 06-16-110 06-16-110/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .228(5.8) inches (mm) | Panel Thickness N/A .137-.216(3.5-5.5) inches (mm) | L1 N/A 2.1(53.4) inches (mm) | L2 N/A .748(19) inches (mm) | L3 N/A .106(2.7) inches (mm) | Dim. - W1 N/A .787(2) inches (mm) | Dim. - W2 N/A .224(5.7) inches (mm) | Request Quote/Sample |
| 06-16-40 06-16-40/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .236(6) inches (mm) | Panel Thickness N/A .157-.335(4-8.5) inches (mm) | L1 N/A 2.15(54.6) inches (mm) | L2 N/A .984(25) inches (mm) | L3 N/A .098(2.5) inches (mm) | Dim. - W1 N/A .512(13) inches (mm) | Dim. - W2 N/A .237(5.9) inches (mm) | Request Quote/Sample |
| 06-16-90 06-16-90/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .240(6.1) inches (mm) | Panel Thickness N/A .157-.311(4-7.9) inches (mm) | L1 N/A 2.14(54.4) inches (mm) | L2 N/A 1.0(25.5) inches (mm) | L3 N/A .098(2.5) inches (mm) | Dim. - W1 N/A .661(16.8) inches (mm) | Dim. - W2 N/A .236(6) inches (mm) | Request Quote/Sample |
| 06-16-60 06-16-60/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .248(6.3) inches (mm) | Panel Thickness N/A .295-.452(7.5-11.5) inches (mm) | L1 N/A 2.29(58.3) inches (mm) | L2 N/A 1.13(28.2) inches (mm) | L3 N/A .098(2.5) inches (mm) | Dim. - W1 N/A .669(17) inches (mm) | Dim. - W2 N/A .244(6.2) inches (mm) | Request Quote/Sample |
| 06-16-50 06-16-50/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .251(6.4) inches (mm) | Panel Thickness N/A .157-.236(4-6) inches (mm) | L1 N/A 1.8(45.6) inches (mm) | L2 N/A .590(15) inches (mm) | L3 N/A .098(2.5) inches (mm) | Dim. - W1 N/A .669(17) inches (mm) | Dim. - W2 N/A .248(6.3) inches (mm) | Request Quote/Sample |
| 06-16-100 06-16-100/Asset/06-16-Series-Clinch-Rivets.png | Hole Diameter - HD N/A .260(6.6) inches (mm) | Panel Thickness N/A .098-.197(2.5-5) inches (mm) | L1 N/A 1.87(47.6) inches (mm) | L2 N/A .689(17.5) inches (mm) | L3 N/A .098(2.5) inches (mm) | Dim. - W1 N/A .511(13) inches (mm) | Dim. - W2 N/A .256(6.5) inches (mm) | Request Quote/Sample |
