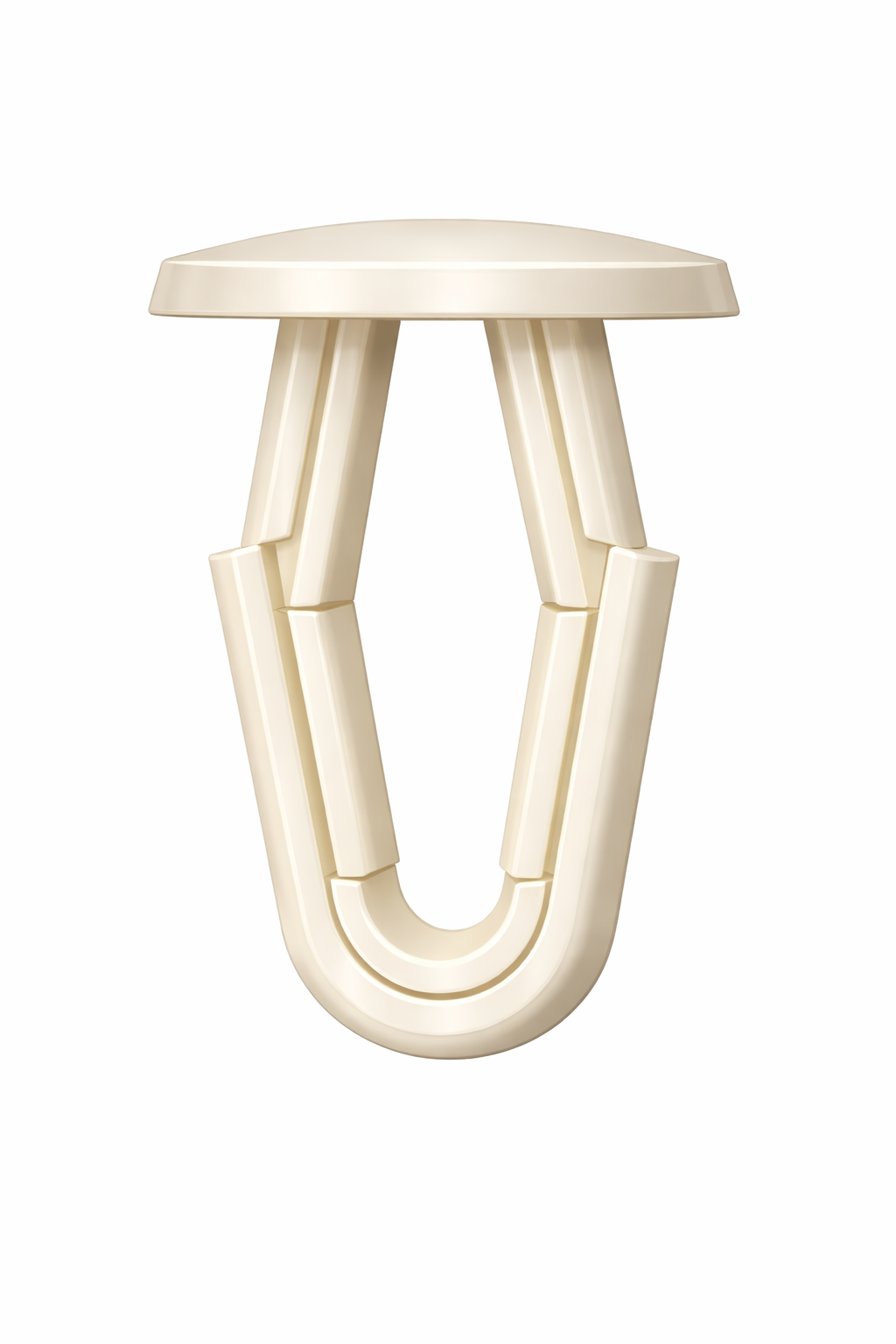

• 10 Series: Drive Fastener

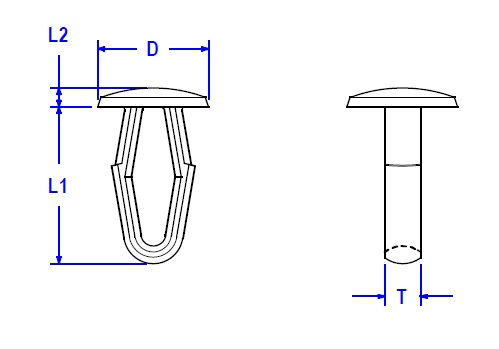

  • 06-10 Sketch
  • Drive Fastener(.126 -.307 Mtg Hole Diameters)
  • Installs easily by hand
  • Color: Natural (Black available)
  • Packaging: 1000/bag
  • Material: Acetal (UL94-HB)
  • UL File No: E45034
  • RoHS Compliant
  • Temp Range: -50 to 194F (-58 to 90C)
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Hole Dia (+/-.002)

Holding Thickness Range

L1 (REF)

D (+/-.010)

L2 (REF)

T (REF)

Request Quote/Sample
N/A .126 (3.2) inches (mm) N/A .039-.177 (1-4.5) inches (mm) N/A .512 (13) inches (mm) N/A .315 (8) inches (mm) N/A .059 (1.5) inches (mm) N/A .106 (2.7) inches (mm) Request Quote/Sample
N/A .153 (3.9) inches (mm) N/A .039-.197 (1-5) inches (mm) N/A .551 (14) inches (mm) N/A .354 (9) inches (mm) N/A .063 (1.5) inches (mm) N/A .116 (2.9) inches (mm) Request Quote/Sample
N/A .185 (4.7) inches (mm) N/A .039-.216 (1-5.5) inches (mm) N/A .590 (15) inches (mm) N/A .394 (10) inches (mm) N/A .067 (1.7) inches (mm) N/A .134 (3.4) inches (mm) Request Quote/Sample
N/A .185 (4.7) inches (mm) N/A .039-.216 (1-5.5) inches (mm) N/A .590 (15) inches (mm) N/A .433 (11) inches (mm) N/A .114 (2.9) inches (mm) N/A .134 (3.4) inches (mm) Request Quote/Sample
N/A .252 (6.4) inches (mm) N/A .059-.256 (1.5-6.5) inches (mm) N/A .669 (17) inches (mm) N/A .472 (12) inches (mm) N/A .079 (2) inches (mm) N/A .153 (3.9) inches (mm) Request Quote/Sample
N/A .307 (7.8) inches (mm) N/A .059-.275 (1.5-7) inches (mm) N/A .748 (19) inches (mm) N/A .551 (14) inches (mm) N/A .087 (2.2) inches (mm) N/A .166 (4.2) inches (mm) Request Quote/Sample
N/A .216 (5.5) inches (mm) N/A .236-354 (6-9) inches (mm) N/A .689 (17.5) inches (mm) N/A .472 (12) inches (mm) N/A .079 (2) inches (mm) N/A .150 (3.8) inches (mm) Request Quote/Sample
