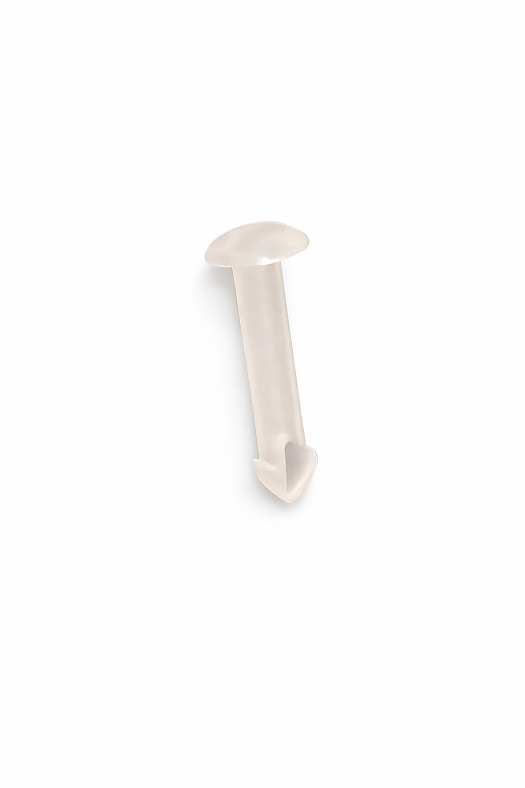

• 09 Series: Snap-Lock Rivets (.098 mtg. hole)
  • 06 - 09 Series - Dimensions
  • Snap-lock rivet
  • Tear drop base
  • Color: Natural
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2
  • UL File No: E70062
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Mounting Hole Dia.

Dim. - D

Dim. - T

Request Quote/Sample
N/A .177 (4.5) inches (mm) N/A .098 (2.5) inches (mm) N/A .200 (5.2) inches (mm) N/A .050 (1.3) inches (mm) Request Quote/Sample
N/A .307 (7.8) inches (mm) N/A .098 (2.5) inches (mm) N/A .200 (5.2) inches (mm) N/A .050 (1.3) inches (mm) Request Quote/Sample
N/A .413 (10.5) inches (mm) N/A .098 (2.5) inches (mm) N/A .200 (5.2) inches (mm) N/A .050 (1.3) inches (mm) Request Quote/Sample
