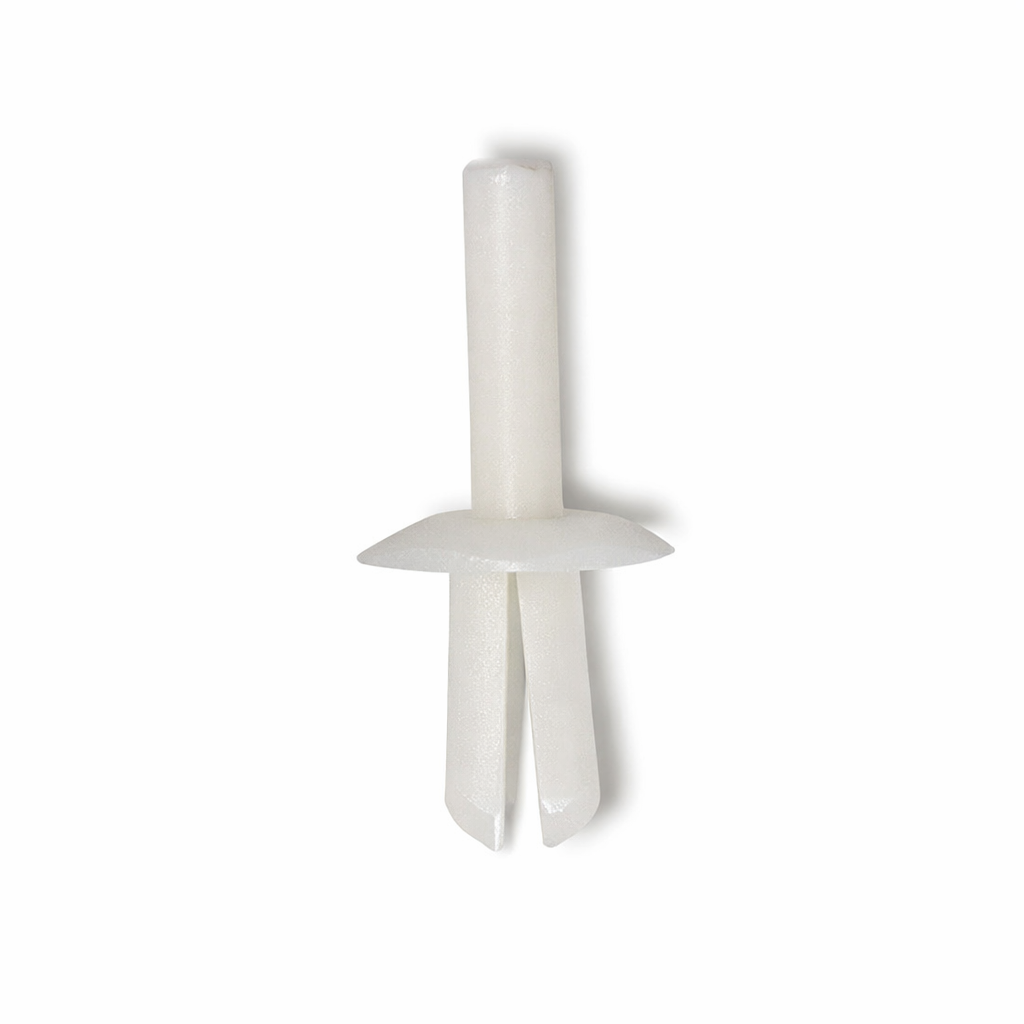

• 04 Series: Push Rivets (.187 to .250 hole)

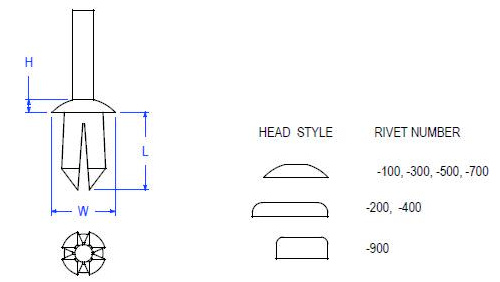

  • 06-04 Sketch
  • Snap locks into hole by hand
  • Prongs expand to hold a permanent lock
  • Material Code: UL94V-2
  • UL FILE# E41938
  • Color: Natural (Black available - add -BK to end of Part#)
  • Packaging: 1000/bag
  • Material: Nylon 66
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Hole Diameter - HD

L(Ref)

Dim. - W

Dim. - H

Panel Thickness

Request Quote/Sample
N/A .187 (4.8) inches (mm) N/A .295 (7.5) inches (mm) N/A .435 (11.0) inches (mm) N/A .075 (1.9) inches (mm) N/A .062 - .187 (1.6 - 4.8) inches (mm) Request Quote/Sample
N/A .187 (4.8) inches (mm) N/A .380 (9.7) inches (mm) N/A .435 (11.0) inches (mm) N/A .075 (1.9) inches (mm) N/A .156 - .281 (3.9 - 7.1) inches (mm) Request Quote/Sample
N/A .187 (4.8) inches (mm) N/A .535 (13.6) inches (mm) N/A .281 (7.1) inches (mm) N/A .075 (1.9) inches (mm) N/A .312 - .440 (2.9 - 11.2) inches (mm) Request Quote/Sample
N/A .189 (4.8) inches (mm) N/A .421 (10.7) inches (mm) N/A .281 (7.1) inches (mm) N/A .063 (1.6) inches (mm) N/A .039 - .375 (1.0 - .9.5) inches (mm) Request Quote/Sample
N/A .217 (5.5) inches (mm) N/A .440 (11.8) inches (mm) N/A .370 (9.4) inches (mm) N/A .079 (2) inches (mm) N/A .095 - .158 (2.4 - 4) inches (mm) Request Quote/Sample
N/A .252 (6.4) inches (mm) N/A .622 (15.8) inches (mm) N/A .469 (11.9) inches (mm) N/A .079 (2.0) inches (mm) N/A .280 - .500 (7.1 - 12.7) inches (mm) Request Quote/Sample
N/A .125 (3.18 inches (mm) N/A .190 (4.82) inches (mm) N/A .187 (4.75) inches (mm) N/A .047 (1.2) inches (mm) N/A .031-.140 (.8-3.56) inches (mm) Request Quote/Sample
N/A .252 (6.4) inches (mm) N/A .366 (9.3) inches (mm) N/A .437 (11.1) inches (mm) N/A .185 (4.7) inches (mm) N/A .059 - .252 (1.6 - 6.4) inches (mm) Request Quote/Sample
