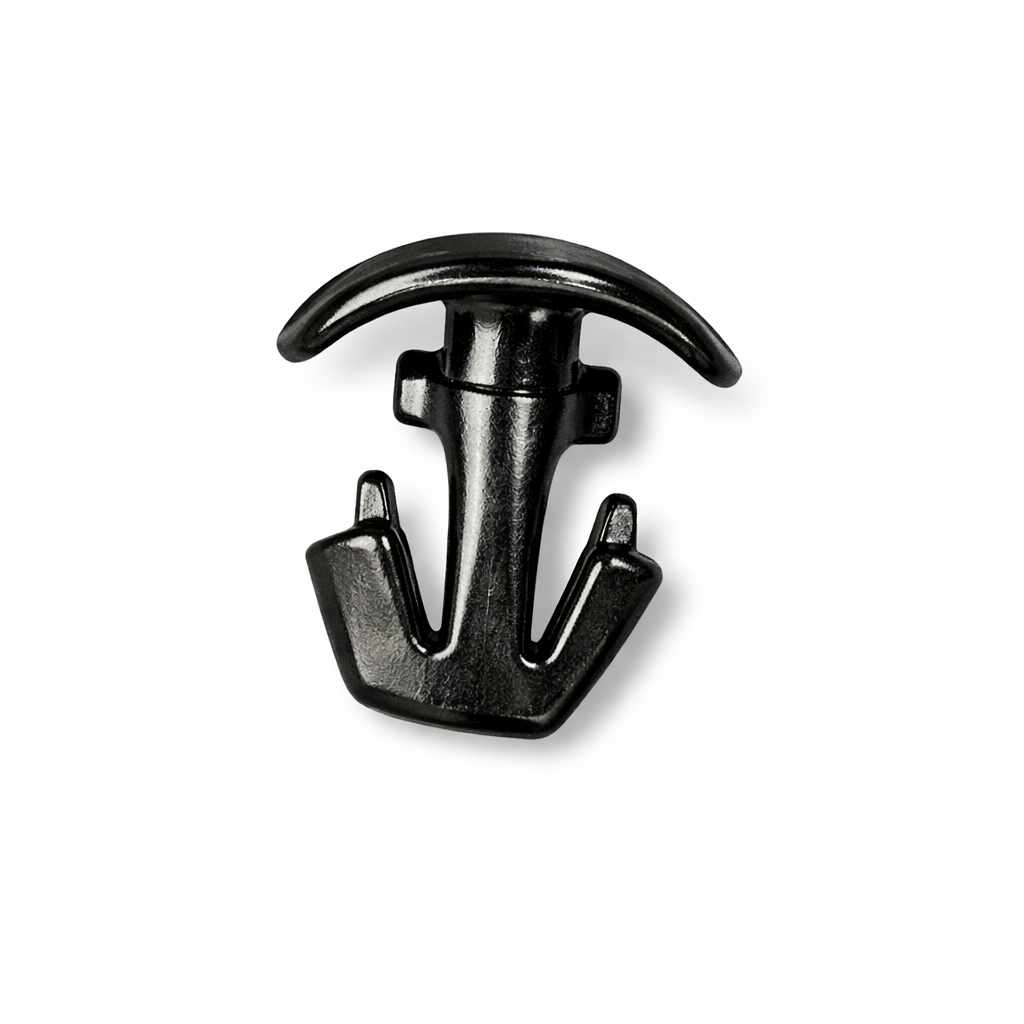

• 02 Series: Clip (.118 hole dia.)

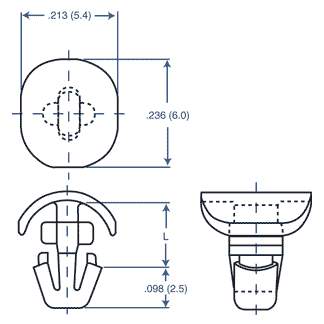

  • 06 - 02 Series - Dimensions
  • Installs easily by hand
  • Barbed arrowhead design locks securely into position
  • Releasable from underside of chassis
  • Color: Black
  • Packaging: 500/bag
  • Material: Nylon 66 UL94V-2
  • UL File No: E53664
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Panel Thickness

Hole Diameter - HD

Insertion Force

Extraction Force

Request Quote/Sample
N/A .114 (2.9) inches (mm) N/A .079 - .098 (2.0 - 2.5) inches (mm) N/A .118 (3.0) inches (mm) N/A .059 - .098 (1.5 - 2.5) lbs (Kg) N/A ≥.354 (9.0) lbs (Kg) Request Quote/Sample
N/A .134 (3.4) inches (mm) N/A .098 - .118 (2.5 - 3.0) inches (mm) N/A .118 (3.0) inches (mm) N/A .059 - .098 (1.5 - 2.5) lbs (Kg) N/A ≥.354 (9.0) lbs (Kg) Request Quote/Sample
