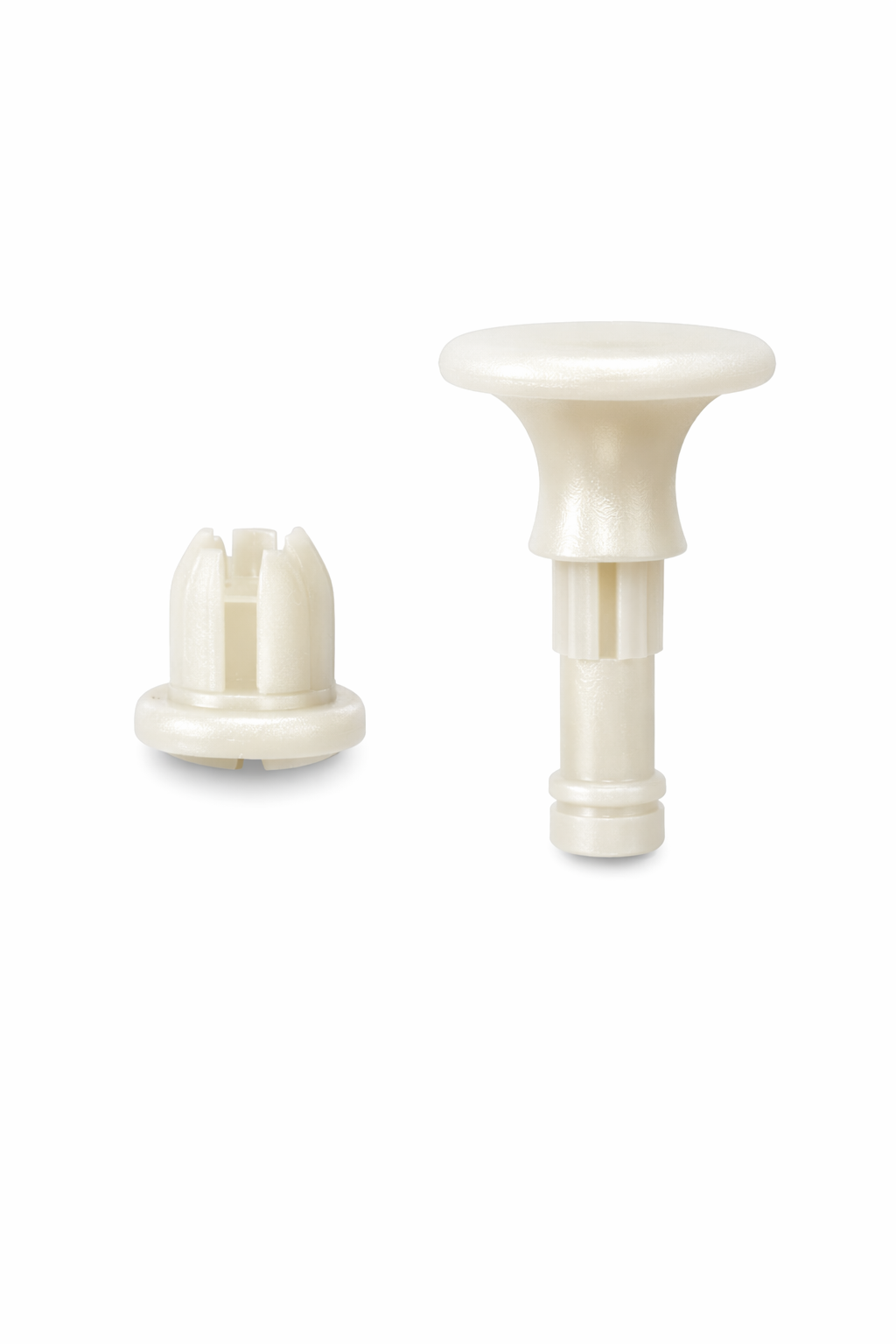

- Panel Fasteners (Plunger & Grommet Rivets)
- Panel Latch
- Removable/Re-usable Rivets
- Color: Black (For White add "W" to end of the part#)
- Packaging: 1000/bag
- Material(Plunger): Nylon 6
- UL Rating: 94V-2 UL File# E36632
- Material(Grommet): Polycarbonate
- UL Rating: 94V-2 UL File# E123529
- RoHS Compliant
- Temp Range(Ref): -0 to 185 F (-40 to 85 C)
- Plunger & Grommet Sold Separately
Unit of Measure
W +/-.012 |
N/A .425 (10.8) inches (mm) |
H +/-.008 |
N/A .079 (2) inches (mm) |
L Ref |
N/A .394 (10) inches (mm) |
(T) Removable Panel Thk |
N/A .098 (2.5) inches (mm) |
(G) Total Panel Thk Range |
N/A .118-.205 (3-5.2) inches (mm) |
(R0) Removable Panel Hole Dia |
N/A .295-.303 (7.5-7.7) inches (mm) |
(F0) Fixed Panel Hole Dia |
N/A .315-.323(8-8.1) inches (mm) |
Select Available Plunger Style |
N/A 06-03-2002A or 06-03-2002B |
