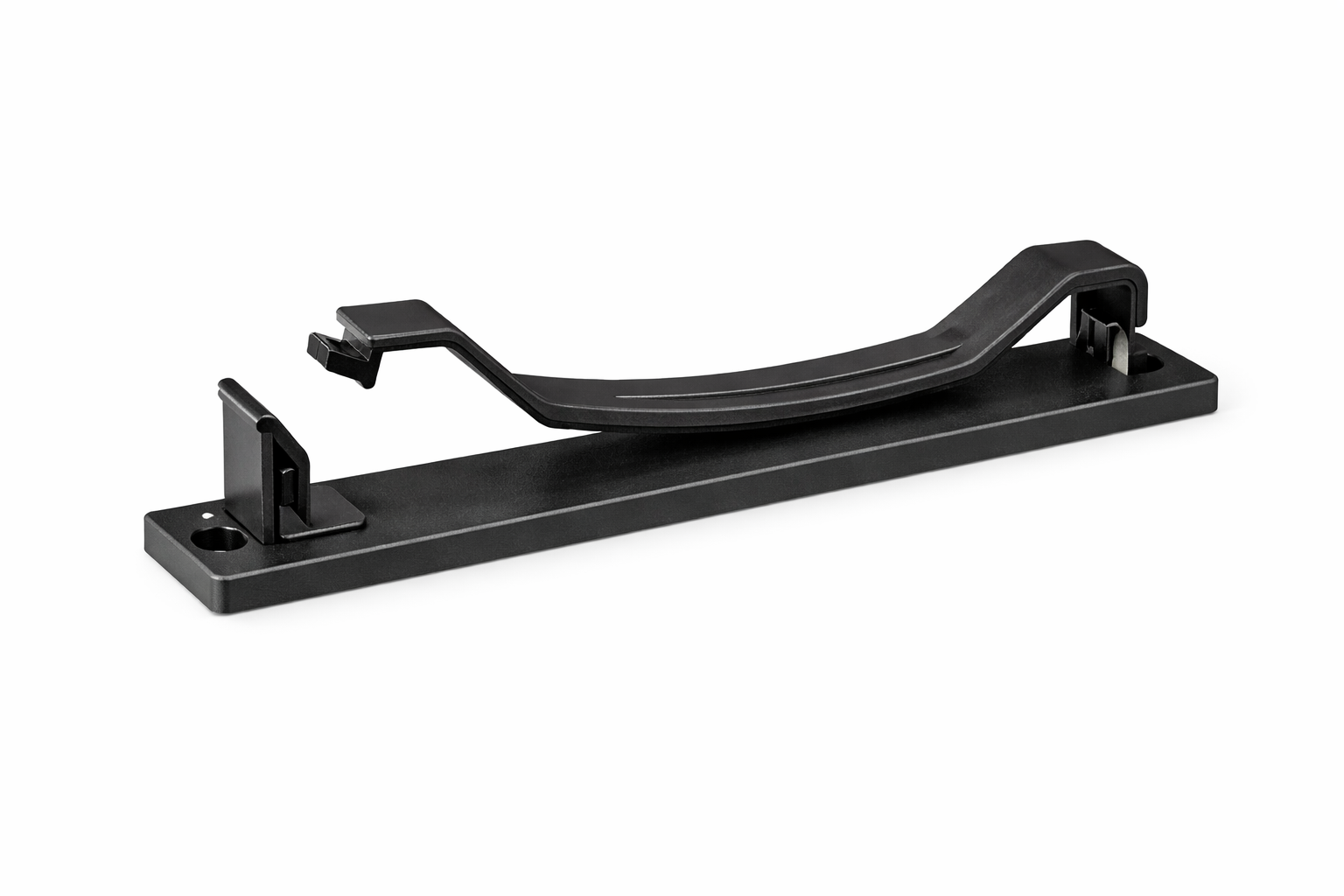

• 09 Series: Locking Ribbon Cable Clip

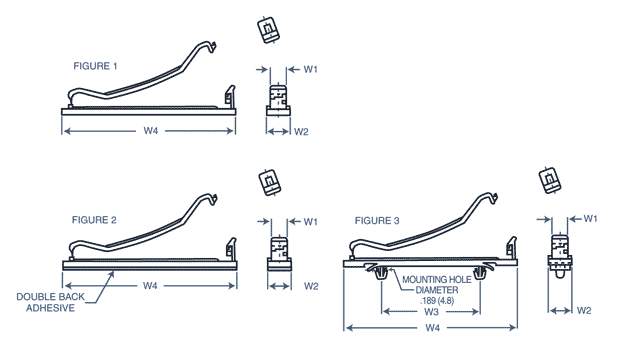

  • 03 - 09 Series - Dimensions
  • Routes up to four flat cables
  • Latch clip lock secures flat cable
  • Three styles available
  • Material Code: UL94V-2
  • Color: Black
  • Packaging: 50/bag
  • Material: Nylon 66
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - W1

Dim. - W2

Dim. - W4

Request Quote/Sample
N/A .315 (8.0) inches (mm) N/A .472 (12.0) inches (mm) N/A 3.44 (87.5) inches (mm) Request Quote/Sample
N/A .315 (8.0) inches (mm) N/A .472 (12.0) inches (mm) N/A 3.44 (87.5) inches (mm) Request Quote/Sample
N/A .315 (8.0) inches (mm) N/A .472 (12.0) inches (mm) N/A 3.44 (87.5) inches (mm) Request Quote/Sample
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
