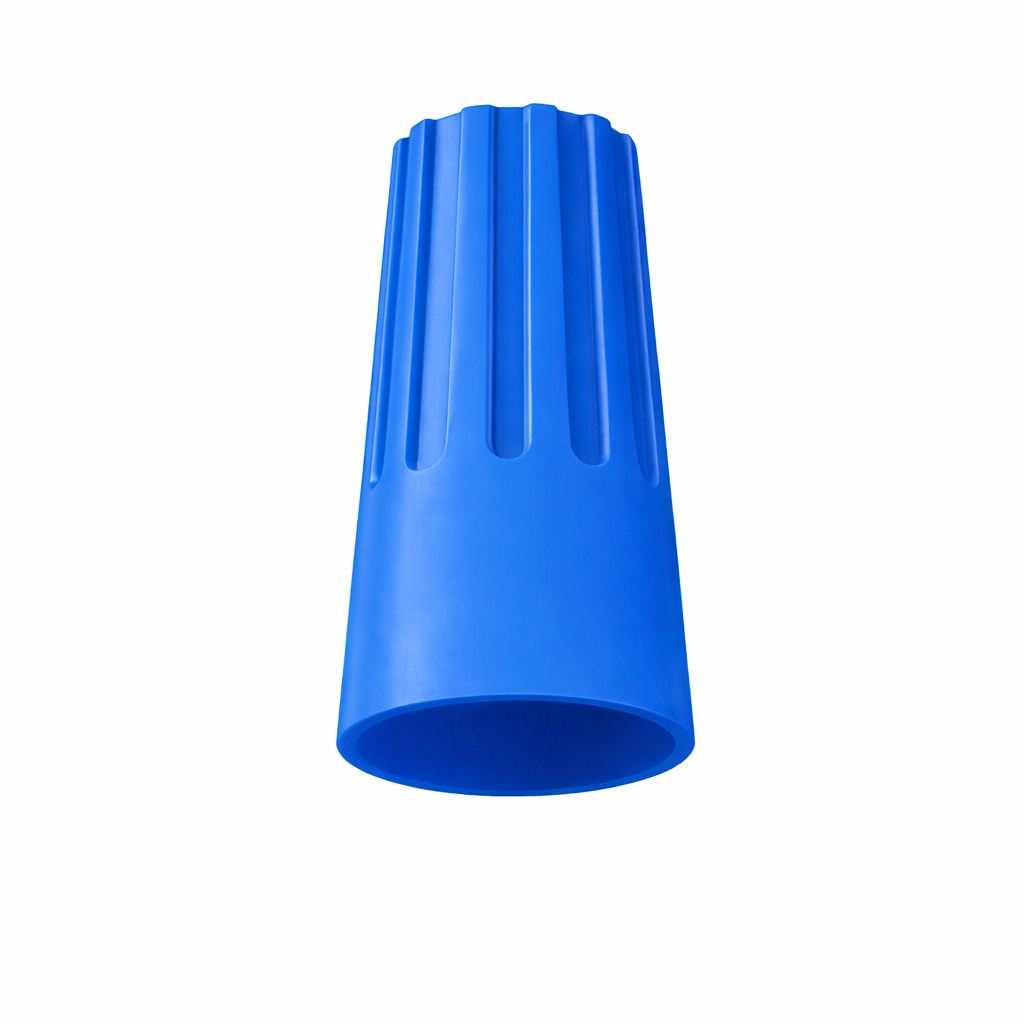

- Screw-on wire connectors
- Standard temperature rating: 105°C
- UL94V-2 flame retardant material
Unit of Measure
Color |
N/A Blue |
Voltage |
N/A 300 volts |
Wire Range- Min. |
N/A 2 #22 |
Wire Range- Max. |
N/A 3 #16 |
Pieces per Bag |
N/A 1000 |
Pieces per Carton (Bags Per Master Carton) |
N/A 10000 (10 Plastic bags, 1000 each) |
Dim. - A |
N/A .161 (4.1) inches (mm) |
Dim. - B |
N/A .276 (7.0) inches (mm) |
Dim. - C |
N/A .386 (9.8) inches (mm) |
Dim. - E |
N/A .693 (17.6) inches (mm) |
Dim. - D |
N/A .232 (7.2) inches (mm) |
Note |
N/A UL Listed and CSA Approved |
